EVAL-M1-CTE620N3 User Manual
iMOTION™ Modular Application Design Kit

Getting Started with EVAL-M1-CTE620N3

4 Getting Started with EVAL-M1-CTE620N3
In order to run the motor system, a combination of the iMOTION™ MADK power board (EVAL-M1-CTE620N3) and
the matching MADK control board is required. The iMOTION™ Software Tools MCEDesigner and MCEWizard are
also required in order to initialy setup the system, as well as to control and fine-tune the system performance
to match users exact needs. This chapter provides more details on setting up the system and getting started
with iMOTION™ MADK development platform.
4.1

Setting up the system

After downloading and installing the iMOTION™ PC Tools (MCEWizard and MCEDesigner), following steps needs
to be executed in order to run the motor. Refer to user manul for iMOTION™ MADK control board such as (EVAL-
M1-101T), MCEWizard and MCEDesigner documentation for more information.

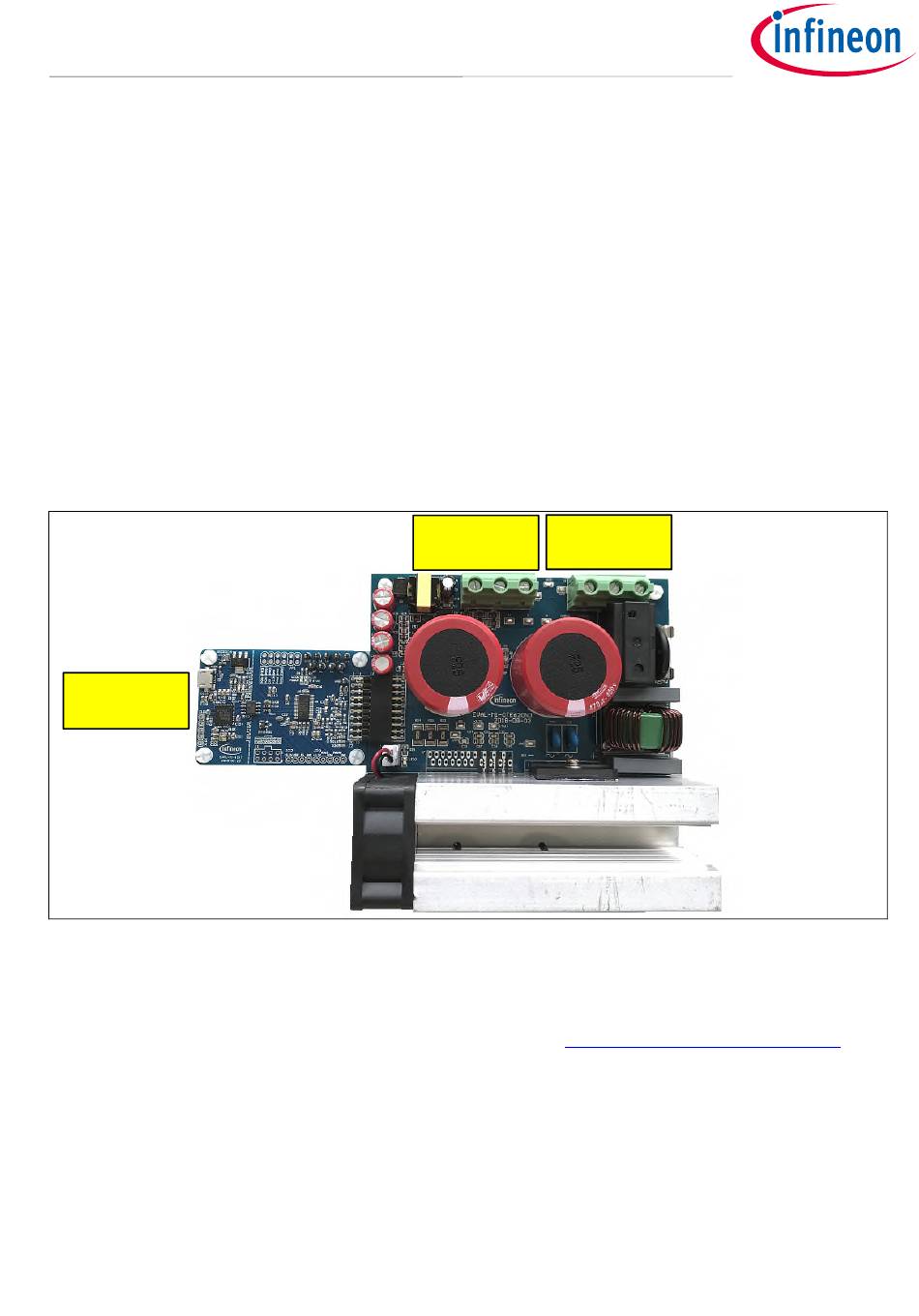

Figure 5 shows the system connection using EVAL-M1-CTE620N3 and control board (used control board EVAL-
M1-101T for example).
PC-USB
Connector
Figure 5 System connection example using EVAL-M1-CTE620N3 and EVAL-M1-101T
1. Connect PC-USB connector on the on-board-debugger to the PC via USB cable.
2. Connect EVAL-M1-CTE620N3's MADK M1 20-pin interface connector (J2) to control board (see Figure 5).
3. Get the latest "IMC101T-T038 MCE Software Package" available on
web page. (Infineon iMOTION™ control IC IMC101T-T038 is used for control board EVAL-M1-101T).
4. Connect motor phase outputs to the motor.
5. Use MCEWizard to enter the motor and evaluation board hardware parameters and click button "Export to
Designer file (.txt)" to system drive parameters file which will be used by MCEDesigner.
6. Connect AC power to power input connector and power on system.
7. Open MCEDesigner and open MCEDesigner default configuration file (.irc) for IMC101T devices
(IMC101T_xx.irc) by clicking "File" menu and select "Open" in the pull down list.
8. Import system drive parameters file (generated in step 5) into MCEDesigner by clicking "File" > "Import Drive
Parameters". Select "Update All" radio button.
User Manual
AC Power
Motor Phase
Input
Outputs
www.infineon.com/imotion-software
11 of 37 Revision 1.0
2018-08-23
