Introduction

2 Introduction
The EVAL-M1-CTE620N3 evaluation power board is a part of the iMOTION™ Modular Application Design Kit for
motor drives (iMOTION™ MADK). In order to run a motor, the matching control board is required to interface
this power board.
The MADK platform is intended to use various power stages with different control boards. These boards can
easily be interfaced through the 20-pin iMOTION™ MADK M1 such as Eval-M1-101Tconnector to control board.
This board is equipped with 20-pin M1 connector and is intended for single motor control only.
This evaluation board is designed to give Easy-to-use power stage based on the Infineon's CIPOS™ Tiny
Inteligent Power Module (IPM). The board is equipped with all assembly groups for sensorless field oriented
control (FOC). It provides a single-phase AC-connector, rectifier and 3-phase output for connecting the motor.
The power stage also contains emitter shunts for current sensing and a voltage divider for DC-link voltage
measurement.
The EVAL-M1-CTE620N3 evaluation board has perfect compatibility, it is compatible with the DIP and SIP two
kind of packaging form and compatible with the different level of power CIPOS™ Tiny IPM. For example, if you
need to evaluate IM393-X6E/F, The evaluation board fully support to pin-to-pin assembly and power rating.but
if you need to evaluate IM393-S6E/F，IM393-X6E/F or IM393-L6E/F Tiny IPM, you can only do function test
evaluation and the power rating isn't satisfied.
The EVAL-M1-CTE620N3 evaluation board is available through regular Infineon distribution partners as well as
on Infineon's website. The features of this board are described in the main features chapter of this document,
whereas the remaining paragraphs provide information to enable the customers to copy, modify and qualify
the design for production according to their own specific requirements.
Environmental conditions were considered in the design of the EVAL-M1-CTE620N3, but it is not qualified
regarding safety requirements or manufacturing and operation over the whole operating temperature range or
lifetime. The boards provided by Infineon are subject to functional testing only.

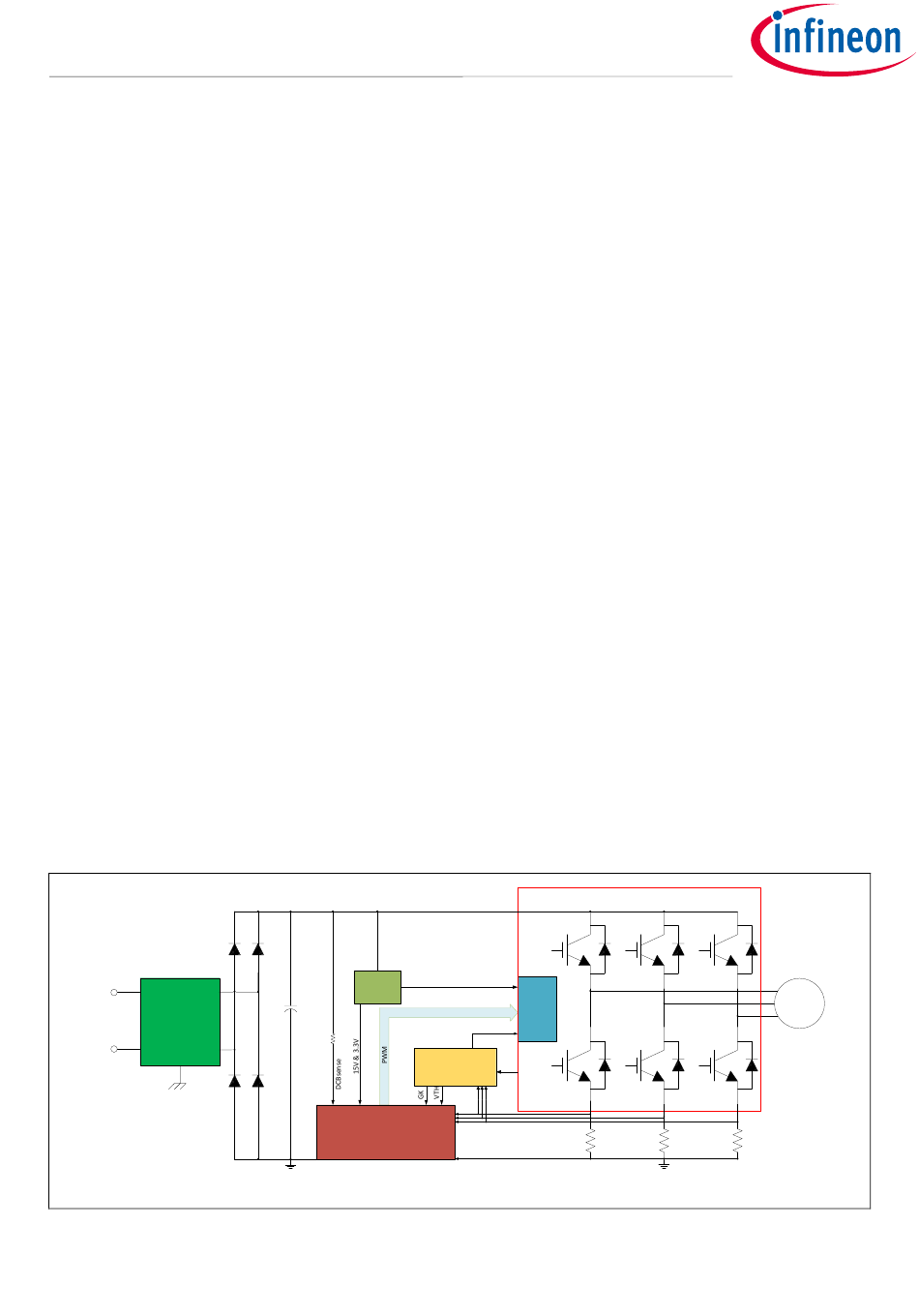

The block diagram of the EVAL-M1-CTE620N3 is depicted in Figure 1. This evaluation board includes an EMI
filter and soft power up circuit, 20 pins iMOTION™ MADK-M1 interface connector, auxiliary power supply to
provide 15V and 3.3V and the CIPOS™ Tiny IPM.
EMI Filter
Line
& Soft
Power Up
Neutral Circuit
Figure 1 The Block Diagram of the EVAL-M1-CTE620N3
User Manual
15V
Power
Supply
PWM
Itrip
Overcurrent and
Overtemperature RFE
protection
I_Shunt+
TM
20 pin iMOTION
MADK-M1 connector
I_Shunt-
4 of 37
TM
CIPOS Tiny
IM393-X6E Inverter Section
HVIC
M
