6.6

Clock PLLs

The C6745/6747 has one PLL controller that provides clock to different parts of the system. PLL0 provides
clocks (though various dividers) to most of the components of the device.
The PLL controller provides the following:
• Glitch-Free Transitions (on changing clock settings)
• Domain Clocks Alignment
• Clock Gating
• PLL power down
The various clock outputs given by the controller are as follows:
• Domain Clocks: SYSCLK [1:n]
• Auxiliary Clock from reference clock source: AUXCLK
Various dividers that can be used are as follows:
• Post-PLL Divider: POSTDIV
• SYSCLK Divider: D1, ¼, Dn
Various other controls supported are as follows:
• PLL Multiplier Control: PLLM
• Software programmable PLL Bypass: PLLEN
6.6.1 PLL Device-Specific Information
The C6745/6747 DSP generates the high-frequency internal clocks it requires through an on-chip PLL.
The PLL requires some external filtering components to reduce power supply noise as shown in
8.
The input to the PLL is either from the on-chip oscillator (OSCIN pin) or from an external clock on the
OSCIN pin. The PLL outputs seven clocks that have programmable divider options.
the PLL Topology.
The PLL is disabled by default after a device reset. It must be configured by software according to the
allowable operating conditions listed in
PLLEN = 1.
Copyright © 2008–2014, Texas Instruments Incorporated
1.14V - 1.32V 50R
V 50R
SS
Ferrite Bead: Murata BLM31PG500SN1L or Equivalent

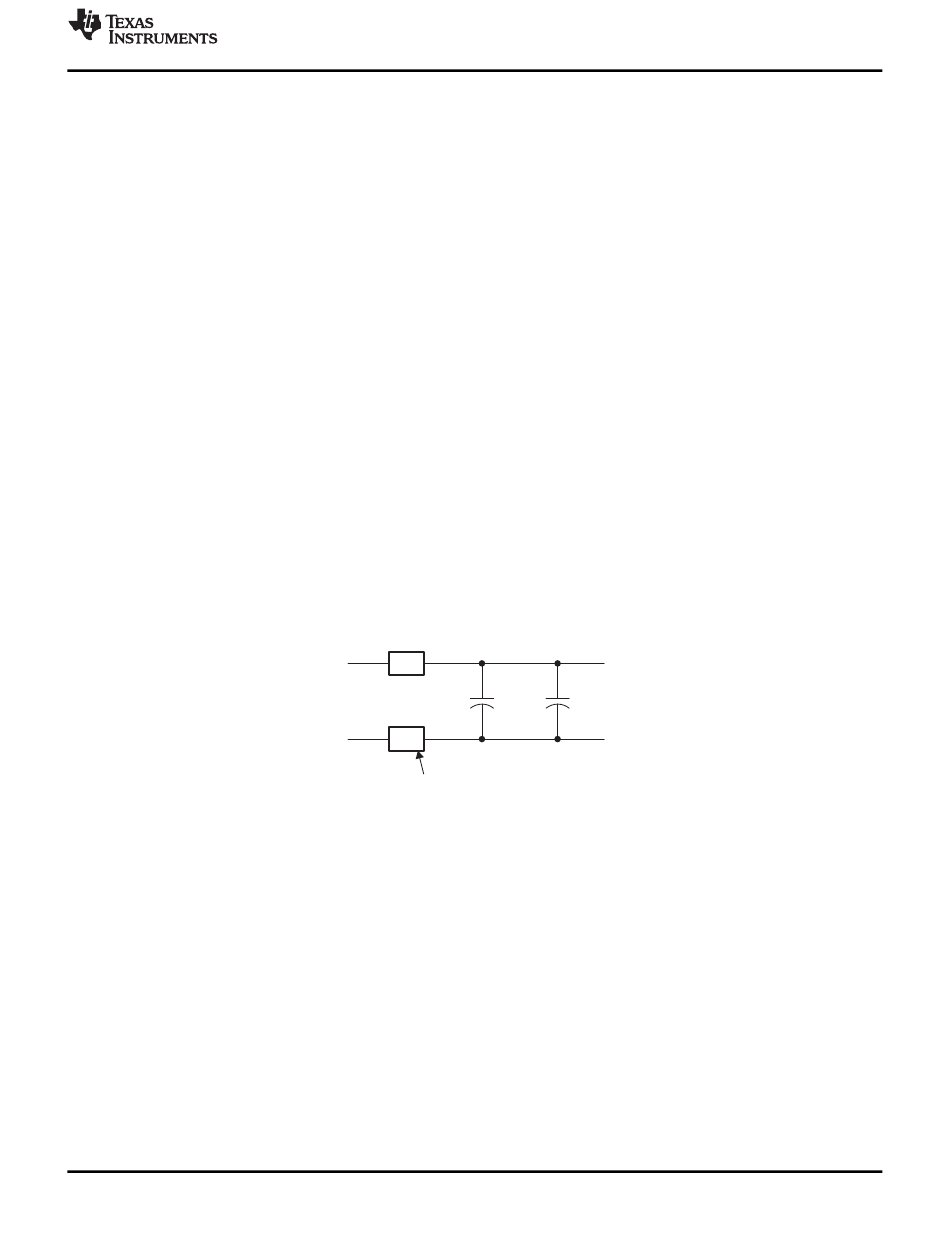

Figure 6-8. PLL External Filtering Components
Table 6-4
Submit Documentation Feedback
Product Folder Links:
SPRS377F – SEPTEMBER 2008 – REVISED JUNE 2014
PLL0_VDDA
0.1 0.01
µF µF
PLL0_VSSA
before enabling the DSP to run from the PLL by setting
Peripheral Information and Electrical Specifications
TMS320C6745 TMS320C6747
TMS320C6745, TMS320C6747
Figure 6-
Figure 6-9 illustrates
