Summary of Contents for CYP CSO-T2

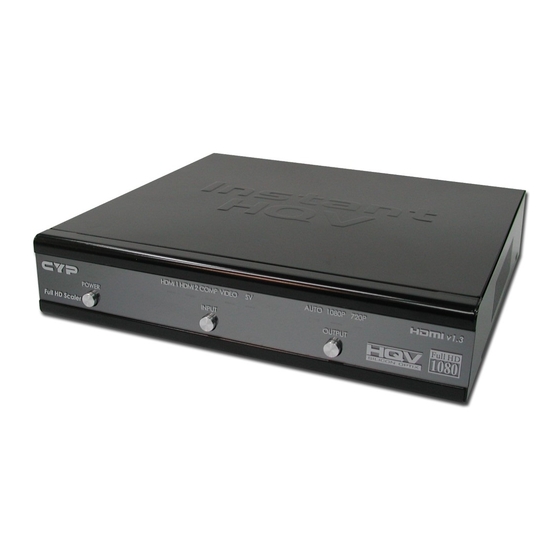

- Page 1 CSO-T2 Instant HQV HD Scaler Operation Manual CSO-T2...
- Page 2 Disclaimers The information in this manual has been carefully checked and is believed to be accurate. Cypress Technology assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. Cypress Technology assumes no responsibility for any inaccuracies that may be contained in this document.
-
Page 3: Safety Precautions
Safety Precautions Please read all instructions before attempting to unpack or install or operate this equipment, and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons. -
Page 4: Table Of Contents
TABLE OF CONTENTS 1. Introduction ..................2. Features ....................3. Package Contents ................4. Operation Controls and Functions ............ 4.1 Front Panel ..................4.2 Rear Panel ..................5. Remote Control ................... 6. OSD Operation ..................6.1 Input....................6.2 Picture..................6.3 Screen..................6.4 PIP.................... -
Page 5: Introduction
1. Introduction The Instant HQV HD Scaler box allows you to maximize the full benefits of the today ’ s HDTV ’ s. Using the Industry leading HQV Realta Video Processor to convert standard definition content (PAL/NTSC) into a crisp and detailed HD version, this Scaler box is unlike anything you have ever purchased. -
Page 6: Operation Controls And Functions
4. Operation Controls and Functions 4.1 Front Panel Power: Press to turn ON/OFF the device. The LED will illuminate when ① power is ON. IR sensor ② Input selection: Press the button to select input source (HDMI 1/HDMI 2/ ③ Composit/Vdieo/S-Video). -
Page 7: Remote Control
HDMI output: This slot are where you connect the HDMI output port to ⑥ the displays with HDMI cable. Power: Plug the 5V DC power supply into this unit and connect the ⑦ adaptor to AC wall outlet. 5. Remote Control Menu: Press this button to bring up the ①... -
Page 8: Osd Operation
6. OSD Operation Press [MENU]. Press [ ▲ / ▼ ] to highlight an option. Press [ ▲ / ▼ ] to adjust or press [ ◄ ] to return to the previous page. Press [Enter] to confirm the selection 6.1 Input Option Description... -
Page 9: Screen
Option Description Brightness 0~100 of Brightness levels, the factory default value is at 50 Contrast 0~100 of Contrast levels, the factory default value is at 50 Color 0~100 of Color levels, the factory default value is at 50 0~360 of Hue levels, the factory default value is at 180 Sharpness 0~100 of Sharpness levels, the factory default value is at 50 Adjust Gamma Correction levels, there are 1.0, 1.8, 2.0,... -
Page 10: Pip
6.4 PIP Option Description PIP Enable PIP feature On or Off Select PIP input sources, the PIP input selection only PIP Inputs available when input source is connected PIP Size Press ← / → to adjust the PIP size Select to show the PIP position form Top Left, Top Right, PIP Position Bottom Left or Bottom Right 6.5 Projection... - Page 11 6.5.1 Keystone Option Description Projection Keystone Application Horizontal -40~40 horizontal keystone adjustment, factory default Keystone value is on 0 Vertical -30~30 vertical keystone adjustment, factory default value Keystone is on 0 Anyplace N / A Display location selection: Front Tabletop/Front Ceiling/ Location Rear Tabletop/Rear Ceiling Pincushion/...
-
Page 12: Hqv
6.5.3 Rotation Option Description Projection Anyplace Application Horizontal N / A Keystone Vertical N / A Keystone Anyplace N / A Location Front Tabletop/Front Ceiling/Rear Tabletop/Rear Ceiling Pincushion/ -15~15 Pincushion/Barrel Demo adjustment, factory Barrel Demo default value is on 0 Rotation Demo -180~180 picture rotation, factory default value is on 0 6.6 HQV... -
Page 13: Setup
6.7 Setup Option Description Auto VGA 640x480@60Hz SVGA 800x600@60Hz XGA 1024x768@60Hz SXGA 1280x1024@60Hz UXGA 1600x1200@60Hz 480p 720x480@59Hz 720p 1280x720@60Hz Output Mode 1080p 1920x1080@60Hz 576p 720x576@50Hz 720p_50 1280x720@50Hz 1080p_50 1920x1080@50Hz 1080p_24 1920x1080@24Hz WXGA 1280x768@60Hz WSXGA 1680x1050@60Hz WUXGA 1920x1080@24Hz Reset Press to reset the system back to factory setting Menu Position Center, Top Left, Top Right, Bottom Left, Bottom Right Menu... -
Page 14: Connection And Installation
7. Connection and Installation... -
Page 15: Specifications
8. Specifications Input ports Composite video + R/L x 1 S-Video + R/L Component + R/L HDMI Output port HDMI Output Mode Component + R/L Auto VGA 640x480@60Hz SVGA 800x600@60Hz XGA 1024x768@60Hz SXGA 1280x1024@60Hz UXGA 1600x1200@60Hz 480p 720x480@59Hz 720p 1280x720@60Hz 1080p 1920x1080@60Hz 576p 720x576@50Hz 720p_50 1280x720@50Hz... -
Page 16: Acronyms
Acronyms Acronym Complete Term... - Page 20 CYPRESS TECHNOLOGY CO., LTD. Home page: http://www.cypress.com.tw 20080704 MPM-CSOT2...
