Summary of Contents for CYP CPLUS-H2SDI

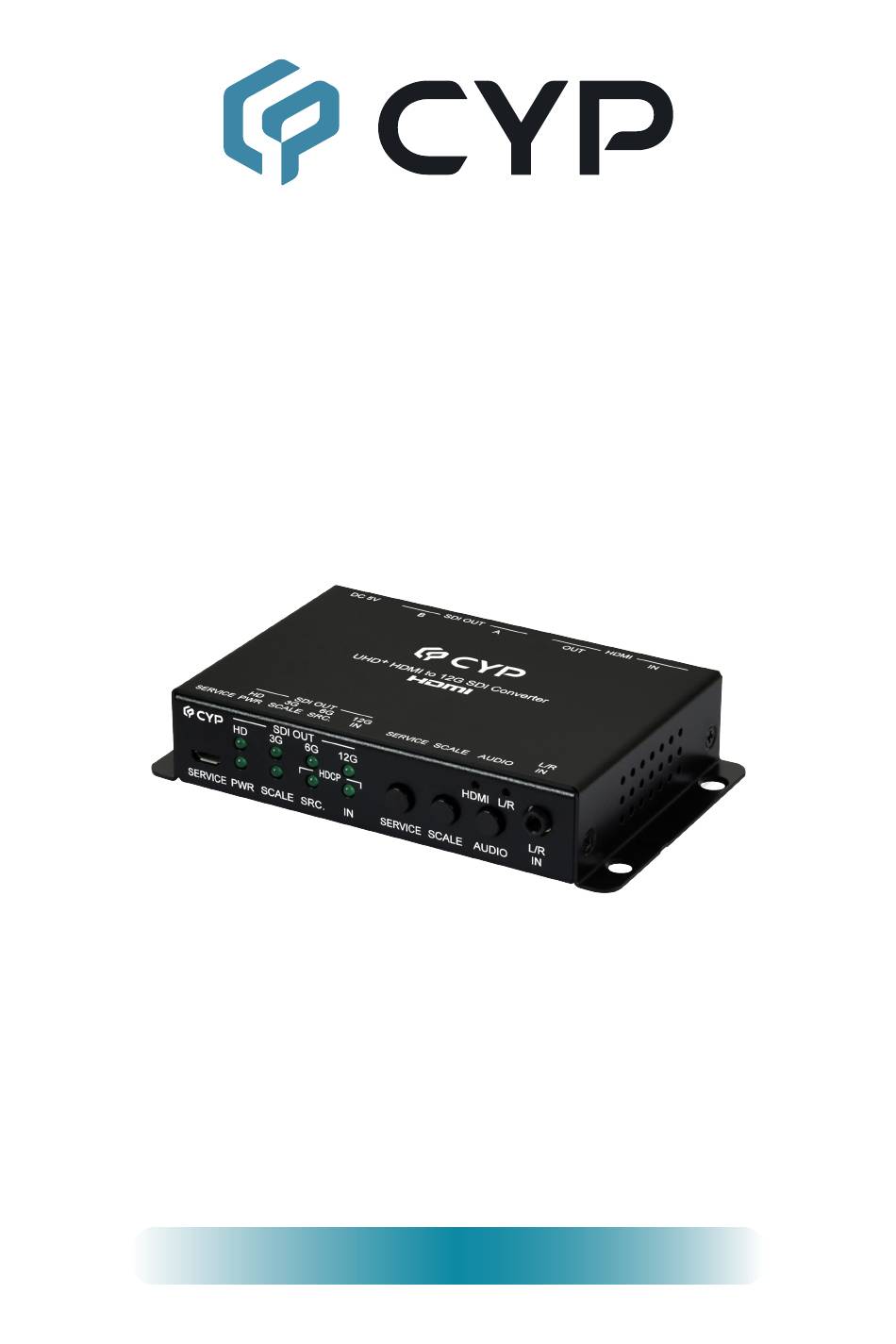

- Page 1 CPLUS-H2SDI-W CPLUS-H2SDI HDMI to 12G-SDI Converter Operation Manual Operation Manual...
- Page 3 DISCLAIMERS The information in this manual has been carefully checked and is believed to be accurate. Cypress Technology assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. Cypress Technology assumes no responsibility for any inaccuracies that may be contained in this document.
- Page 4 SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons.
-
Page 5: Table Of Contents
CONTENTS 1. Introduction ............1 2. Applications ............. 1 3. Package Contents ........... 1 4. System Requirements ........1 5. Features............2 6. Operation Controls and Functions ....3 6.1 Front Panel ..........3 6.2 Rear Panel........... 4 7. Connection Diagram ........5 8. -
Page 6: Introduction
1. INTRODUCTION This HDMI to 12G-SDI Converter allows HDMI signals up to 4K UHD to be converted for use in native 12G-SDI video systems. This makes it easier for professionals to integrate and distribute non-HDCP HDMI signals from both consumer and prosumer video equipment, such as video cameras and laptops, within their professional video production environment while still providing a local HDMI output for monitoring purposes. -
Page 7: Features
5. FEATURES • HDMI 2.0 and DVI 1.0 compliant • HDCP 1.x and 2.2 compliant Note: HDCP encoded content can only be output over the HDMI output. The SDI output will be blocked in the case of HDCP content. • 1 HDMI video input & 1 analog stereo audio input •... -
Page 8: Operation Controls And Functions
6. OPERATION CONTROLS AND FUNCTIONS 6.1 Front Panel SDI OUT HDMI HDCP SCALE SERVICE SCALE AUDIO SERVICE SRC. SERVICE Port: This port is reserved for firmware update use only. SDI OUT LEDs: These LEDs will illuminate to indicate the SDI output format currently in use. -
Page 9: Rear Panel
AUDIO Button & LEDs: Press this button to toggle the audio source to embed between HDMI audio and analog audio. The LEDs will illuminate to indicate which source is currently selected. L/R IN Port: Connect to the analog stereo output of a device such as an audio player or PC. -
Page 10: Connection Diagram
7. CONNECTION DIAGRAM Pro Video Camera HDMI Input HDMI SDI OUT DC 5V Power Supply Output Monitor... -
Page 11: Specifications
8. SPECIFICATIONS 8.1 Technical Specifications HDMI Bandwidth 18Gbps SDI Bandwidth 12Gbps SMPTE Standard Support ST 292-1 Level A ST 425-1 ST 2081-10 ST 2082-10 Input Ports 1×HDMI (Type-A) 1×Unbalanced Stereo Audio (3.5mm) Output Ports 2×12G-SDI (BNC) 1×HDMI (Type-A) Service Port 1×USB 2.0 (Micro-B) Power Supply 5V/2.6A DC... -
Page 12: Video Specifications
8.2 VIDEO SPECIFICATIONS Input Output Supported Resolutions (Hz) HDMI HDMI 720×400p@70/85 640×480p@60/72/75/85 720×480i@60 720×480p@60 720×576i@50 720×576p@50 800×600p@56/60/72/75/85 848×480p@60 ... - Page 13 Input Output Supported Resolutions (Hz) HDMI HDMI 2560×1440p@60RB 2560×1600p@60RB 2048×1080p@23.98/24/25/29.97/30 2048×1080p@50/59.94/60 3840×2160p@23.98/24/25/29.97/30 3840×2160p@50/59.94/60 (4:2:0) 3840×2160p@24, HDR10 3840×2160p@50/60 (4:2:0), HDR10 ...
-
Page 14: Audio Specifications
8.3 Audio Specifications 8.3.1 Digital Audio HDMI Input / Output LPCM Max Channels 8 Channels Sampling Rate (kHz) 32, 44.1, 48, 88.2, 96, 176.4, 192 Bitstream Supported Formats Standard & High-Definition SDI Output LPCM Max Channels 8 Channels Sampling Rate (kHz) 48, 96 Bitstream Supported Formats... -
Page 15: Cable Specifications
8.4 Cable Specifications 720p 1080p 4K30 4K60 (4:4:4) (4:4:4) Cable Length 12-bit 12-bit 8-bit 8-bit High Speed HDMI Cable HDMI Input HDMI Output Coaxial SDI Cable (Belden 1694A 6GHz Cable) SDI Output 260m 200m 100m Note: SDI cable distance measurements are based on Belden 1694A 6GHz cable. -
Page 16: Acronyms
9. ACRONYMS ACRONYM COMPLETE TERM 4K UHD 4K Ultra-High-Definition (10.2Gbps max) 4K UHD 4K Ultra-High-Definition (18Gbps max) COAX Coaxial Decibel Digital Visual Interface EDID Extended Display Identification Data Gbps Gigabits per second High-Definition HDCP High-bandwidth Digital Content Protection HDMI High-Definition Multimedia Interface High Dynamic Range Kilohertz Light-Emitting Diode... - Page 20 CYPRESS TECHNOLOGY CO., LTD. www.cypress.com.tw...
