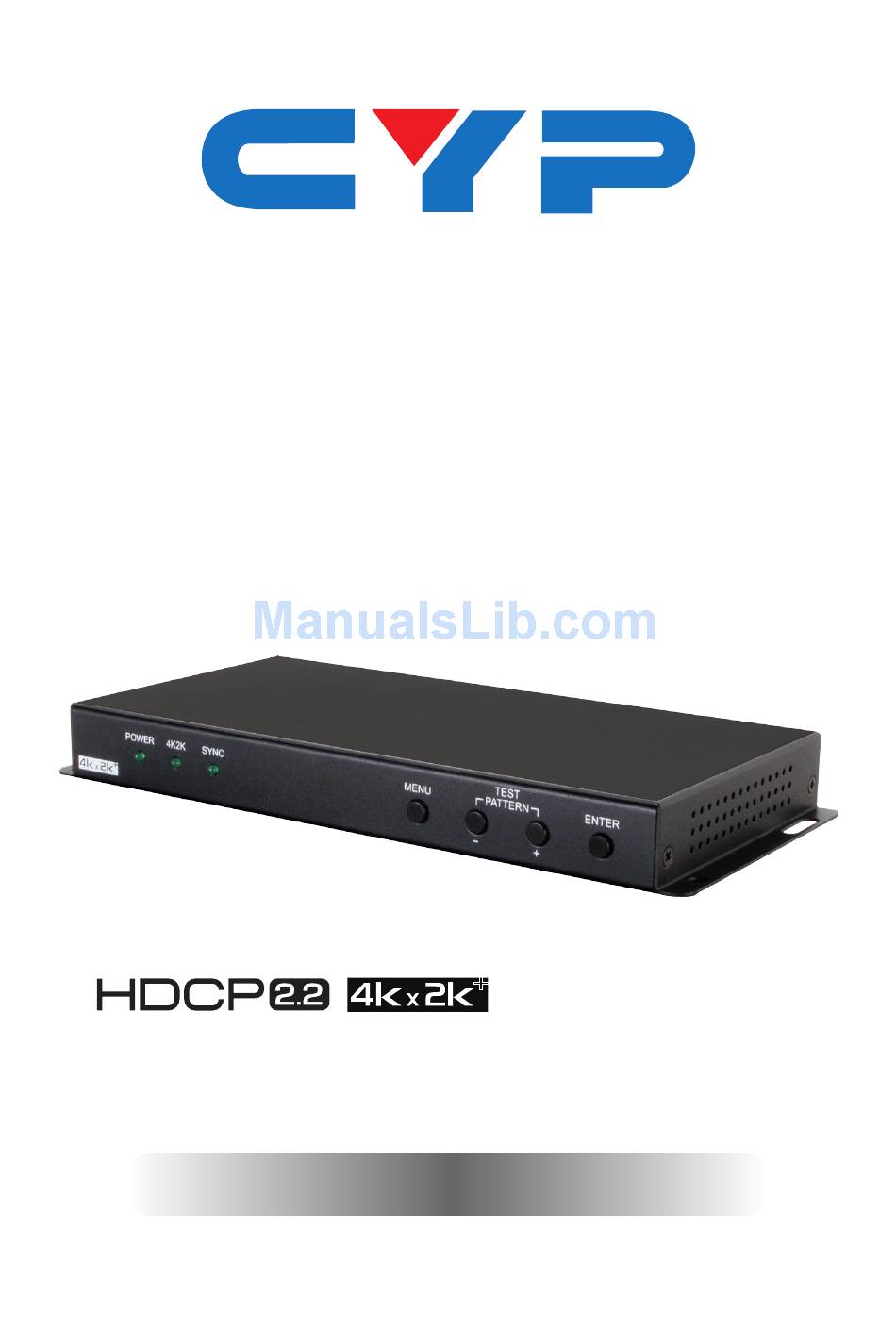

  • Page 1 CPLUS-V2PE 1 by 2 UHD Scaler with Audio De-Embedded Operation Manual Operation Manual...
  • Page 2 DISCLAIMERS The information in this manual has been carefully checked and is believed to be accurate. Cypress Technology assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. Cypress Technology assumes no responsibility for any inaccuracies that may be contained in this document.

  • Page 3: Safety Precautions

    SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons.

  • Page 4: Table Of Contents

    CONTENTS 1. Introduction ..........1 2. Applications ........... 1 3. Package Contents ........ 1 4. System Requirements ......1 5. Features ..........2 6. Operation Controls and Functions ..3 6.1 Front Panel ........3 6.2 Rear Panel .........4 6.3 OSD Menu .........5 7.

  • Page 5: Introduction

    1. INTRODUCTION The 1 by 2 UHD Scaler with Audio De-Embedded is designed to upscale 1080p signal into 4K2K 6G or downscale 4K2K 6G signal into 1080p with synchronized digital and analog audio output. Friendly and simple design that allow user with direct viewing on input HDMI content and OSD that ease user with output settings/selection.

  • Page 6: Features

    5. FEATURES • HDMI with 6G 4Kx2K supported and HDCP 2.2 compliant • Supports HDMI signal bypass on both outputs or upscale 1080p signal into 4K2K on output B and downscale 4K2K signal into 1080p on output A • Supports 4K2K@50/60 (4:4:4) to 4K2K@50/60(4:2:0) conversion •...

  • Page 7: Operation Controls And Functions

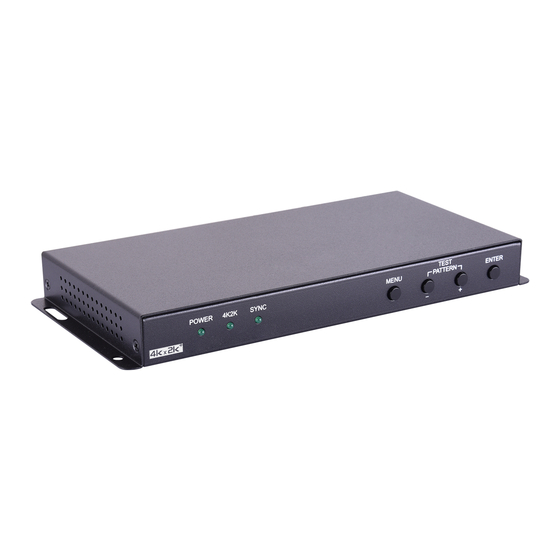

    6. OPERATION CONTROLS AND FUNCTIONS 6.1 Front Panel TEST POWER 4K2K SYNC MENU PATTERN ENTER – POWER LED: This LED will illuminate when the device is connected with power supply. 4K2K LED: This LED will illuminate when the input source contains 4K2K signal.

  • Page 8: Rear Panel

    6.2 Rear Panel AUDIO OUT DC 5V HDMI IN HDMI OUT SERVICE HDMI IN: This slot is to connect with source equipment such as PS3 or Blu-ray player. HDMI OUT: These slots are to connect with UHD display/TV for images display. Each output can be displaying with different timing and pattern and image.

  • Page 9: Osd Menu

    6.3 OSD Menu LEVEL LEVEL LEVEL LEVEL PASS THROUGH OUTPUT A INPUT 4K2K DOWN 1080P FIX 4K2K(420) PASS THROUGH INPUT HDR FIX 8 BITS PASS THROUGH INPUT 1080P OUTPUT UP 4K2K UP 4K2K(420) OUTPUT B PASS THROUGH INPUT 4K2K FIX 4K2K(420) PASS THROUGH INPUT HDR FIX 8 BITS...
  • Page 10 LEVEL LEVEL LEVEL LEVEL YES/NO OUT B (2CH) HDCP SUPPORT REFER TO HDCP SOURCE REFER TO DISPLAY DISPLAY INFO. 5 SEC. 10 SEC. 15 SEC. OSD TIME OUT 20 SEC. 25 SEC. 30 SEC. 35 SEC. 40 SEC. MODE AUTO PATTERN AUTO TIMING WHITE COLOR RED COLOR...
  • Page 11 LEVEL LEVEL LEVEL LEVEL YELLOW COLOR CYAN COLOR COLOR BAR RAMP TOGGLE 720X480P@60 720X576P@50 1280X720P@50 1280X720P@60 1920X1080P@50 RESOLUTION 1920X1080P@60 3840X2160P@24 3840X2160P@25 3840X2160P@30 4096X2160P@24 4096X2160P@25 4096X2160P@30 OUTPUT A DISABLE/ENABLE HDCP OUTPUT B DISABLE/ENABLE 10 SEC. 20 SEC. 30 SEC. 40 SEC. SWITCH TIME 50 SEC.
  • Page 12 LEVEL LEVEL LEVEL LEVEL 2 MIN. TEST PATTERN A 3 MIN. 5 MIN. YES/NO 720X480P@60 720X576P@50 YES/NO 1280X720P@50 YES/NO YES/NO 1280X720P@60 1920X1080P@50 YES/NO YES/NO 1920X1080P@60 AUTO TIMING NEXT PAGE SELECT 3840X2160P@24 YES/NO 3840X2160P@25 YES/NO 3840X2160P@30 YES/NO 4096X2160P@24 YES/NO 4096X2160P@25 YES/NO 4096X2160P@30 YES/NO PREVIOUS PAGE...
  • Page 13 LEVEL LEVEL LEVEL LEVEL MEGENTA PATTERN COLOR YELLOW COLOR CYAN COLOR TEST PATTERN B COLOR BAR RAMP TOGGLE 720X480P@60 720X576P@50 1280X720P@50 1280X720P@60 1920X1080P@50 1920X1080P@60 3840X2160P@24 3840X2160P@25 RESOLUTION 3840X2160P@30 4096X2160P@24 4096X2160P@25 4096X2160P@30 3840X2160P@50 3840X2160P@60 4096X2160P@50 4096X2160P@60 10 SEC. 20 SEC. 30 SEC.
  • Page 14 LEVEL LEVEL LEVEL LEVEL 40 SEC. SWITCH TIME 50 SEC. 1 MIN. 2 MIN. TEST PATTERN B 3 MIN. 5 MIN. OUTPUT A DISABLE/ENABLE HDCP OUTPUT B DISABLE/ENABLE YES/NO 720X480P@60 720X576P@50 YES/NO 1280X720P@50 YES/NO YES/NO 1280X720P@60 1920X1080P@50 YES/NO YES/NO 1920X1080P@60 NEXT PAGE 3840X2160P@24 YES/NO...
  • Page 15 LEVEL LEVEL LEVEL LEVEL PREVIOUS PAGE INPUT INFORMATION RESOLUTION OUTPUT A OUTPUT B OUTPUT A DISABLE/ENABLE HDCP OUTPUT B DISABLE/ENABLE FIRMWARE VERSION VX.XX FIRMWAR UPDATE FACTORY SETTING Default settings are in Italian bold font Note: When input timing is non-VESA standard, OSD may be disable. To enter into OSD selection, press hot keys to enter into test pattern mode and do the OSD selection.
  • Page 16 * 1 Input → Output 3840x2160@24 → 1920x1080p@24 3840x2160@25 → 1920x1080p@25 3840x2160@30 → 1920x1080p@30 3840x2160@50 → 1920x1080p@50 3840x2160@60 → 1920x1080p@60 4096x2160@24 → 1920x1080p@24 4096x2160@25 → 1920x1080p@25 4096x2160@30 → 1920x1080p@30 4096x2160@50 → 1920x1080p@50 4096x2160@60 → 1920x1080p@60 * 2 Input → Output 3840x2160@50(RGB,YCbCr444,Ycbcr422) →...

  • Page 17: Connection Diagram

    7. CONNECTION DIAGRAM DVD or Blu-ray Player HDMI IN HDMI OUT AUDIO OUT DC 5V SERVICE USB Flash Disk Active Speakers TV or Monitor...

  • Page 18: Specifications

    8. SPECIFICATIONS 8.1 Technical Specifications VideoBandwidth 600MHz/18G 1 x USB (Service only) Output ports 2 x HDMI 1 x R/L HDMI Cable Length 15 m@1080p/8-bit, 10 m@1080p/12-bit, 5 m@4K Power Supply 5V DC/2.6A (US/EU standards, CE/FCC/UL certified) ESD Protection Human body model: ±8kV (air-gap discharge) ±4kV (contact discharge) Dimensions...

  • Page 19: Video Supports Specification

    8.2 Video Supports Specification DVI and HDMI Supported Input Output 640x480i@60   640x480p@60   720x480p@60   720x576i@50   720x576p@50   800x600@56/60/72/75/85   1024x768@60/70/75/85   1280x720p@50/60   1280x768@60/75   1280x800@60/75   1280x1024@60/75 ...

  • Page 20: Audio Specifications

    8.3 Audio Specifications Input Output Frequence Output THD+N Crosstalk Level Level/Freq Terminal Response HDMI HDMI 0dB~-1dB <0.01% ±1dB >80dB <-80dB 0dBFS 20、 Vrms±10% <0.1% ±3dB >70dB <-60dB 1K、20KHz 9. ACRONYMS ACRONYM COMPLETE TERM...
