Hardware Installation and Reference Guide

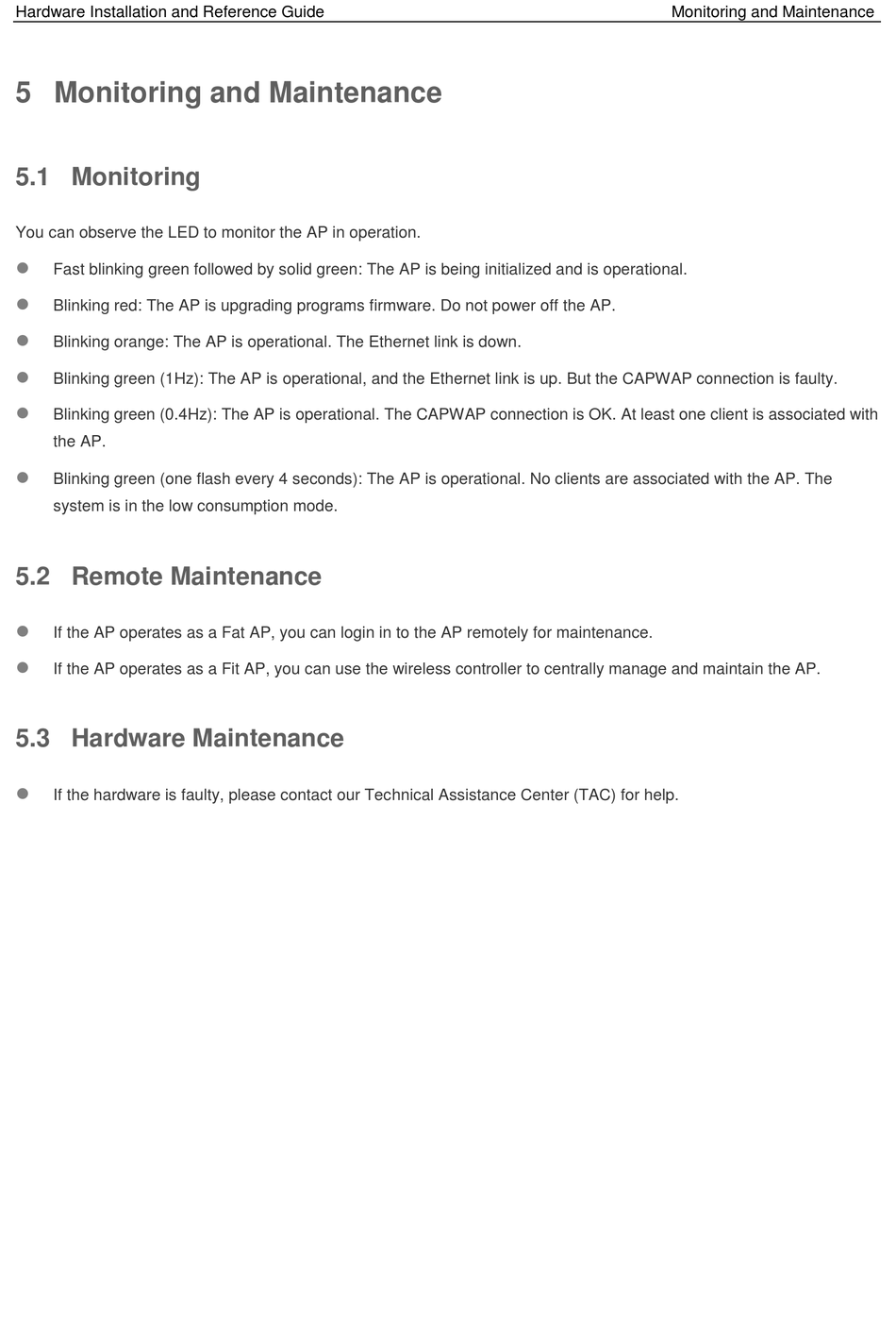

5 Monitoring and Maintenance

5.1 Monitoring
You can observe the LED to monitor the AP in operation.

Fast blinking green followed by solid green: The AP is being initialized and is operational.

Blinking red: The AP is upgrading programs firmware. Do not power off the AP.

Blinking orange: The AP is operational. The Ethernet link is down.

Blinking green (1Hz): The AP is operational, and the Ethernet link is up. But the CAPWAP connection is faulty.

Blinking green (0.4Hz): The AP is operational. The CAPWAP connection is OK. At least one client is associated with
the AP.

Blinking green (one flash every 4 seconds): The AP is operational. No clients are associated with the AP. The
system is in the low consumption mode.

5.2 Remote Maintenance


If the AP operates as a Fat AP, you can login in to the AP remotely for maintenance.

If the AP operates as a Fit AP, you can use the wireless controller to centrally manage and maintain the AP.

5.3 Hardware Maintenance


If the hardware is faulty, please contact our Technical Assistance Center (TAC) for help.
