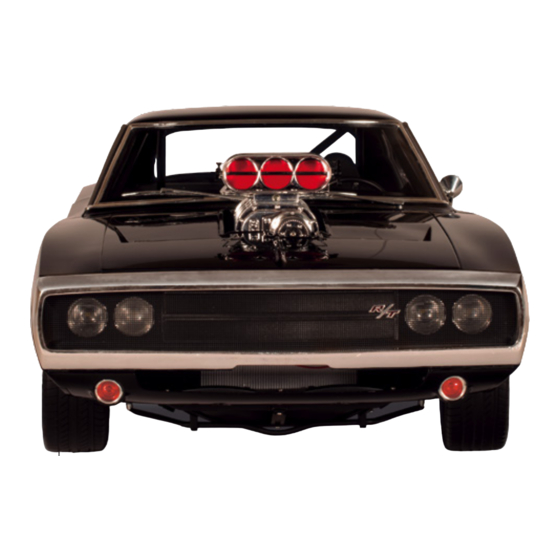

Deagostini MODEL SPACE FAST & FURIOUS DODGE CHARGER R/T Manual
  1. Manuals
  2. Brands
  3. Deagostini Manuals
  4. Motorized Toy Car
  5. MODEL SPACE FAST & FURIOUS DODGE CHARGER R/T
  6. Manual

Deagostini MODEL SPACE FAST & FURIOUS DODGE CHARGER R/T Manual

Pack 7
Hide thumbs Also See for MODEL SPACE FAST & FURIOUS DODGE CHARGER R/T:

Advertisement

Quick Links

Download this manual
7
pack

Advertisement

loading
Need help?

Need help?

Do you have a question about the MODEL SPACE FAST & FURIOUS DODGE CHARGER R/T and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Deagostini MODEL SPACE FAST & FURIOUS DODGE CHARGER R/T

Summary of Contents for Deagostini MODEL SPACE FAST & FURIOUS DODGE CHARGER R/T

  • Page 1 pack...
  • Page 2 FCA US LLC and used under license by The braking system Premium and Collectibles Trading Co. Ltd. ©2019 FCA US LLC. ©️ 2019 Editorial Planeta DeAgostini S.A.U. Stage 27 Todos los derechos reservados. Attaching the engine housing ©️...
  • Page 3 ASSEMBLING STAGE THE FIREWALL In the following assembly session you will prepare the firewall panel that you will then mount on your model. Follow our instructions carefully, using the illustrations to help you. PIECES FOR THIS STAGE PIECES FOR THIS STAGE 25A Firewall 25D Firewall grounding connector 25B Bonnet safety catches (x 2)
  • Page 4 STAGE 25.1 ttAch a bonnet safety catch 25B to the firewall 25A, ensuring the pieces face the same way as those in the illustration. Secure with one type CM screw. 25.2 ttAch the second bonnet safety catch 25B to the other side of the firewall.
  • Page 5 STAGE This illustration shows you where the firewall will go inside the model. It is a panel that separates the engine housing from the passenger compartment. Initially, its function was to prevent fire from spreading inside the passenger compartment in the event of a fire, which is no longer a danger in modern vehicles.
  • Page 6 STAGE 25 25.4 ttAch the grounding connector 25D to the firewall 25A, ensuring it is facing the same way as shown in the illustration. The piece only fits one way thanks to a semi-circular peg. STAGE 25 FINAL RESULT The firewall is now ready to be mounted on the model.

  • Page 7: The Braking System

    THE BRAKING STAGE SYSTEM In this assembly session you will put together the hydraulic circuit of your model’s braking system. Follow our instructions and the illustrations that accompany them very carefully. PIECES FOR THIS STAGE 26A Mount bracket 1 for the master cylinder 26E Connecting piece for the brake power 26H Hoses (x 3) booster and the reservoir...
  • Page 8 STAGE 26 26.1 26.2 the mount brackets for the master o Assemble the brake power booster, join cylinder (26A and 26B), as shown in the pieces 1 and 2 (26C and 26D) as shown in the illustration. Secure with a type AP screw. illustration.
  • Page 9 STAGE 26 26.7 the left panel of the engine housing (22A and 22B) that you attached to the battery in the twenty fourth assembly session. Turn the firewall over and place it on the left panel. Once the pieces are perfectly aligned, join with three type LM screws.
  • Page 10 STAGE 26 26.11 the chassis back over and use the tweezers to pull the four hoses out. Slide the free end of one of the hoses 26H onto the linchpin on the brake caliper of the front left wheel 4A. 12A 12B 26.12 the front right hose 26I over the top...
  • Page 11 ATTACHING THE ENGINE HOUSING TO STAGE THE CHASSIS In this assembly session you will attach the firewall and the side panels of the engine housing to the chassis. You will also mount the front wheel arch reinforcement plates. PIECES FOR THIS STAGE 27A Front left wheel arch reinforcement plate 27G Front left control arm anchor bolt 27B Front right wheel arch reinforcement plate...
  • Page 12 STAGE 27 27.1 27.2 the piece composed of the firewall and side panels of the onnect the free end of the engine housing. Put the windscreen wiper motor 27E inside the firewall positive cable 24H, which is attached 25A, as shown in the illustration. Secure the piece with two type CM to the battery, to the linchpin on the screws.
  • Page 13 STAGE 27 27.5 Arefully turn over what you have built over and insert four type AM screws into the holes in the front section of the chassis 5A, as shown in the illustration. 27.6 onnect the free end of the alternator wire 17G to the free linchpin on the voltage regulator 27F, situated on the inside of the firewall 25A.
  • Page 14 STAGE 27 27.9 ttAch the right panel 2 of the engine housing 23B to the front right suspension dome 8H. First insert two AM screws into the holes shown in the illustration. Then align the front right control arm anchor bolt 27H, labelled with the letter R, with the remaining hole.
  • Page 15 ASSEMBLING STAGE THE ENGINE HOUSING (III) In this assembly session you will attach the horn and the expansion tank to the front panel of the engine housing. Follow our instructions and the illustrations that accompany them carefully. PIECES FOR THIS STAGE 28A Front panel of the engine housing 28D Expansion tank 28B Horn...
  • Page 16 STAGE 28.1 the horn 28B to its mount bracket 28C using a type AP screw. Ensure the pieces face the same way as those in the illustration. 28.2 liGn the free hole in the horn mount bracket 28C with the corresponding hole in the front panel of the engine housing 28A.
  • Page 17 STAGE 28 28.3 the expansion tank 28D to the left side of ttAch the front panel of the engine housing 28A. This piece is also secured with a type AP screw. A USEFUL TIP When you have to handle small pieces or hoses, it is best to use a pair of tweezers.
  • Page 18 STAGE HOW TO STORE THE PIECES It is advisable to store the unused pieces or partially assembled parts of your model in a box, kept in a safe place, where they cannot be damaged. You must also ensure that any wires or hoses maintain their correct position.
