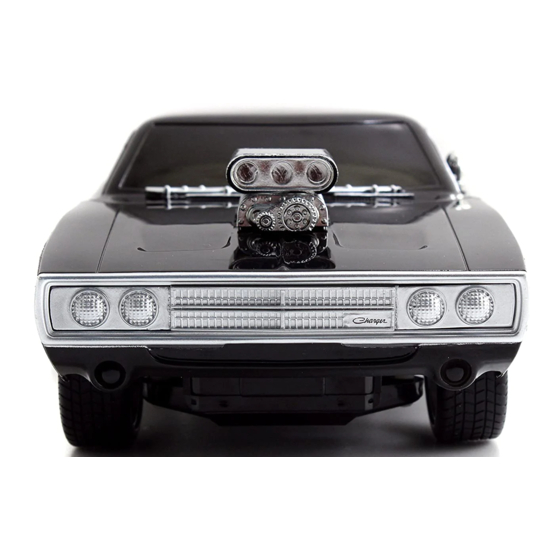

Deagostini MODEL SPACE FAST & FURIOUS DODGE CHARGER R/T Manual
  1. Manuals
  2. Brands
  3. Deagostini Manuals
  4. Motorized Toy Car
  5. MODEL SPACE FAST & FURIOUS DODGE CHARGER R/T
  6. Manual

Deagostini MODEL SPACE FAST & FURIOUS DODGE CHARGER R/T Manual

Pack 3
Hide thumbs Also See for MODEL SPACE FAST & FURIOUS DODGE CHARGER R/T:
Table of Contents

Advertisement

Quick Links

Download this manual
3
pack

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MODEL SPACE FAST & FURIOUS DODGE CHARGER R/T and is the answer not in the manual?

Questions and answers

Related Manuals for Deagostini MODEL SPACE FAST & FURIOUS DODGE CHARGER R/T

Summary of Contents for Deagostini MODEL SPACE FAST & FURIOUS DODGE CHARGER R/T

  • Page 1 pack...
  • Page 2 Dodge, HEMI and related logos, vehicle model names and trade dress are trademarks of FCA US LLC and used under license by Premium and Collectibles Trading Co. Ltd. ©2019 FCA US LLC. ©️ 2019 Editorial Planeta DeAgostini S.A.U. Stage 10 Todos los derechos reservados.
  • Page 3 FRONT RIGHT SUSPENSION STAGE AND THE CHASSIS In this stage you will continue to assemble the front right suspension and the elements that make up the front section of the chassis. PIECES FOR THIS STAGE PIECES FOR THIS STAGE 9A Front right suspension lower control 9G Front suspension torsion bar arm anchor AM Screw 2×4 mm (x 2)*...
  • Page 4 STAGE 9 the front section of chassis and position the cover plate 1 9H on the right beam of the chassis 5A, with the smooth side of the cover plate facing upwards. Attach the cover plate using two type CM screws. the same side of the chassis 5A, insert the engine mount plate 9K into the rectangle groove in the beam.
  • Page 5 STAGE 9 OsiTiOn the suspension ball joint 9E between the two nserT the suspension bump stop 9C into the hole in side plates on the lower control arm 9B. Attach the pieces the lower control arm 9B next to the shock absorber together with a type FM screw.
  • Page 6 STAGE the front section of the chassis 5A upside down. Position the engine guard plate 7A and the stabilizer bar 7D you made in stage 7 on the front crossmember 6A. Align the holes and attach the pieces together with three type CM screws and two type KM screws, using the holes shown in the illustration.
  • Page 7 STEERING AND RIGHT STAGE SUSPENSION With the pieces attached to the tenth stage, you can assemble the parts of the steering system and continue assembling the front right suspension. PIECES FOR THIS STAGE 10A Ball joints for the steering (x 5) 10E Right tie rod anchor 10F Tie rod end links (x 2) 10B Tie rod...
  • Page 8 STAGE 10 10.1 10.2 nserT the cylindrical end of one of the tie rod end one ball joint 10A into the third-to-last hole in links 10F into the eyes of the left tie rod anchor 10D the central bar 10C. Line up the hole in the ball joint (indicated with the letter “L”).
  • Page 9 STAGE 10 10.6 the chassis you have built so far and position it as shown in the illustration. Insert a ball joint 10A into the second hole in the left end of the central bar 10C. Insert it into the forked end of the left tie rod 5D. Join them together with a type JM screw.
  • Page 10 STAGE 10.9 carefully at the front suspension stay rods 10G: they are slightly bent. Take one stay rod 10G and insert its shortest segment into the indicated small hole in the lower control arm 9B. Insert the other end of the stay rod 10G into the hole in the front chassis crossmember 6A.
  • Page 11 ASSEMBLING THE FRONT STAGE RIGHT WHEEL In this assembly session, you will prepare the second wheel and attach it to the front section of the chassis of the model you are building. PIECES FOR THIS STAGE 11A Front right tyre 11E Hub cover 11F Washer 11B Rim (outer)
  • Page 12 STAGE 11 11.1 the outer part of the rim 11B. On the inside there is a notch with a linchpin in the middle. Slide the tyre valve 11C onto the linchpin. 11.2 at the tyre 11A: on one side you will see the word “outside”...
  • Page 13 STAGE 11 11.4 laCe the wheel onto piece 1 of the front right spindle 8J. 11.5 nserT the washer 11F into the centre of the rim and fix the wheel in place with a type IM screw. Don’t tighten the screw too much as the wheel must be free to move.
  • Page 14 STAGE 11 11.6 O finish mounting the wheel on the section of the chassis you have built so far, press the hub cover 11E onto the middle of the rim 11B. STAGE 11 FINAL RESULT Both of the front wheels are now mounted on the chassis of the model you are building.
  • Page 15 ASSEMBLING THE GEAR BOX STAGE In this assembly session, you will build the gearbox for your model. PIECES FOR THIS STAGE 12A Gearbox crankcase, left side, piece 1 12D Gearbox crankcase, right side, 12H Starter motor, piece 2 piece 2 AM Screw 2×4 mm (x 10)* 12B Gearbox crankcase, right side, 12E Gearbox oil pan...
  • Page 16 STAGE 12 12.1 the bracket 12F and the gearbox oil pan 12E together, ensuring that the pieces are facing the same way as those in the illustration. To make the assembly stable, use two type AM screws. 12.2 the left side, piece 1, of the gearbox crankcase 12A and align the hole in its linchpin with the transverse hole in the bracket 12F.
  • Page 17 STAGE 12 12.4 TTaCh the left side, piece 2, of the gearbox crankcase 12C to the left side, piece 1, 12A, as shown in the illustration. Join them together with a type AM screw. 12.5 attach the right side, piece 1, 12B to what you have just assembled.
  • Page 18 STAGE 12.7 he sTarTer motor must be attached to the left side, piece 1, of the gearbox 12A with two type CM screws. STAGE 12 FINAL RESULT Here’s the gearbox you made in this assembly session. Put it in a safe place until you are ready to install it in the model you are building.
