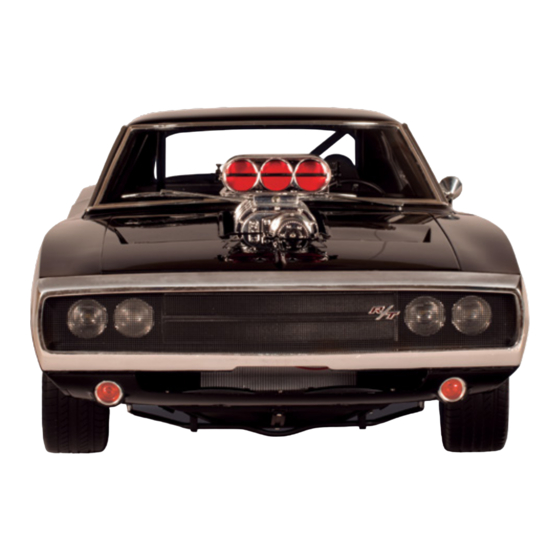

Deagostini MODEL SPACE FAST & FURIOUS DODGE CHARGER R/T Manual

Deagostini MODEL SPACE FAST & FURIOUS DODGE CHARGER R/T Manual

Pack 11
Hide thumbs Also See for MODEL SPACE FAST & FURIOUS DODGE CHARGER R/T:

Advertisement

Quick Links

pack
pack
11
11

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MODEL SPACE FAST & FURIOUS DODGE CHARGER R/T and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Deagostini MODEL SPACE FAST & FURIOUS DODGE CHARGER R/T

  • Page 1 pack pack...
  • Page 2: Table Of Contents

    FCA US LLC and used under license by Mounting the right rear Premium and Collectibles Trading Co. Ltd. ©2019 FCA US LLC. ©️ 2019 Editorial Planeta DeAgostini S.A.U. wheel Todos los derechos reservados. ©️ 2019 De Agostini Publishing Italia S.p.A.
  • Page 3: Stage

    ATTACHING ATTACHING STAGE STAGE THE REAR AXLE THE REAR AXLE In this assembly session you will assemble part of the right rear suspension system, preparing the leaf spring that will be attached to the chassis later on. PIECES FOR THIS STAGE 41A Rear left tyre HM Screws 2×3 mm (x 4)* 41B Rim (outside)
  • Page 4 STAGE 41 STAGE 41 41.1 the chassis and very carefully put it upside down on your work surface. Find the end of the gear box and insert the linchpin on the front coupling 35C (i.e. the coupling with the smallest diameter), as shown in the illustration.
  • Page 5 STAGE 41 STAGE 41 41.4 you attach the rear axle to the chassis, insert the rear shock absorbers rods 40E into their respective cylinders 40F. At this point, you can attach the free end of the rear brake hose 34E to the linchpin on the rear brake hose fitting 37H.
  • Page 6 STAGE 41 STAGE 41 41.7 the wheel you have just assembled onto the left end of the rear axle, and secure it with a washer 41F and a lIde type IM screw. Finally, press the hub cover 41E onto the middle of the wheel. STAGE 41 FINAL RESULT You have now attached the rear axle to the chassis.
  • Page 7: Stage

    MOUNTING THE RIGHT MOUNTING THE RIGHT STAGE STAGE REAR WHEEL REAR WHEEL In this assembly session you will assemble the right rear wheel and attach it to the corresponding side of your model’s rear axle. PIECES FOR THIS STAGE 42A Rear right tyre 42D Rim (inside) HM Screws 2×3 mm (x 4)* 42B Rim (outside)
  • Page 8: Stage 42

    STAGE 42 STAGE 42 42.1 the tyre valve 42C onto the lIde small linchpin on the outside of the rear right tyre rim 42B. MODEL BUILDING NOTE The wheel you are assembling is a replica of the one installed on Dom Toretto's Dodge Charger R/T in the first Fast and Furious film.
  • Page 9 STAGE 42 STAGE 42 42.3 nsert the inside of the rim 42D into the inside of the tyre 42A, and align the holes and linchpins of the two parts of the rim. Secure the two pieces with three type HM screws.
  • Page 10 STAGE 42 STAGE 42 42.5 press the hub cover 42E onto Inally the middle of the outside of the rim 42B. STAGE 42 FINAL RESULT You have assembled the rear right wheel and attached it to your model.
  • Page 11: Assembling The Battery Holder

    ASSEMBLING THE ASSEMBLING THE STAGE STAGE BATTERY HOLDER (I) BATTERY HOLDER (I) In this assembly session you will start assembling your model's battery holder. Follow our instructions and the illustrations that accompany them very carefully. PIECES FOR THIS STAGE 43A Back panel of the fuel tank 43D Spring 43B Battery holder cover 43E Washer...
  • Page 12: Stage 43

    STAGE 43 STAGE 43 43.1 the top side of the battery holder cover 43B, insert the screw 43C into the corresponding hole. AN OVERVIEW The battery holder will go at the back of the chassis, and can be opened by removing the screw that comes with this stage. To operate your model’s electrical system, you will need three batteries to power the lighting system and produce the sound effects.
  • Page 13 STAGE 43 STAGE 43 43.2 the battery holder cover over and slide the spring 43D onto the screw. Battery holder Rear section of the chassis Speaker holes Fuel tank...
  • Page 14 STAGE 43 STAGE 43 43.3 Inally slide the washer 43E onto the screw 43C so that it is on top of the spring 43D. STAGE 43 FINAL RESULT You have now prepared the battery holder cover. Put it carefully to one side.
  • Page 15 ASSEMBLING ASSEMBLING STAGE STAGE THE BATTERY HOLDER (II) THE BATTERY HOLDER (II) In this assembly session you will install the battery holder, complete with the wiring, in the bottom of the fuel tank. PIECES FOR THIS STAGE 44A Battery holder with wires and switch FP Screws 2.3×4 mm (x 5)* 44B Connecting plate GP Screws 1.2×3 mm (x 3)*...
  • Page 16 STAGE 44 STAGE 44 44.1 the nut 44C into the nsert corresponding hexagonal hole in the battery holder 44A. 44.2 lace the connecting plate 44B over the nut 44C and secure it with two type GP screws.
  • Page 17 STAGE 44 STAGE 44 44.3 the piece you have just assembled with the back panel of the fuel tank 43A. Insert the switch correctly into the small rectangular hole, as shown in the illustration. Secure the pieces with four type FM screws. 44.4 ecure the switch with two type...
  • Page 18 STAGE 44 STAGE 44 44.5 the battery holder cover 43B. Put it on top of the battery holder, using the two tabs. Secure with the screw 43C. STEGE 44 FINAL RESULT You have now installed the battery holder in the bottom of the fuel tank.
  • Page 19: The Fuel Tank And The Speaker

    THE FUEL TANK AND THE FUEL TANK AND STAGE STAGE THE SPEAKER THE SPEAKER In this assembly session you will assemble the fuel tank and attach the speaker to the chassis. PIECES FOR THIS STAGE 45A Upper panel of fuel tank AP Screws 1.7×4 mm (x 8)* 45B Speaker CM Screws 1.7×3 mm (x 3)*...
  • Page 20 45.1 the piece with the battery holder. Pass the wiring through the rectangular hole in the upper panel of the fuel tank 45A, and attach the latter to the lower panel 43A by joining the respective linchpins together. 45.2 ecure the two parts of the fuel tank with six type AP screws.
  • Page 21 45.3 the chassis and, from underneath, put the fuel tank in position. Make sure the battery holder wiring comes out on top and align the mounting holes. Secure with four CP type screws. 45.4 ocate the circular housing shown in the illustration. Insert the speaker 45B, ensuring it faces exactly the same way as that shown in the illustration.
  • Page 22 45.5 osItIon the retainer ring 45C as shown in the illustration. Align the fixing holes and secure the pieces with two type CM screws. STAGE 45 FINAL RESULT You have now attached the speaker and the fuel tank with the battery holder to the chassis.
