Chapter 1 INSTALLATION
1.6

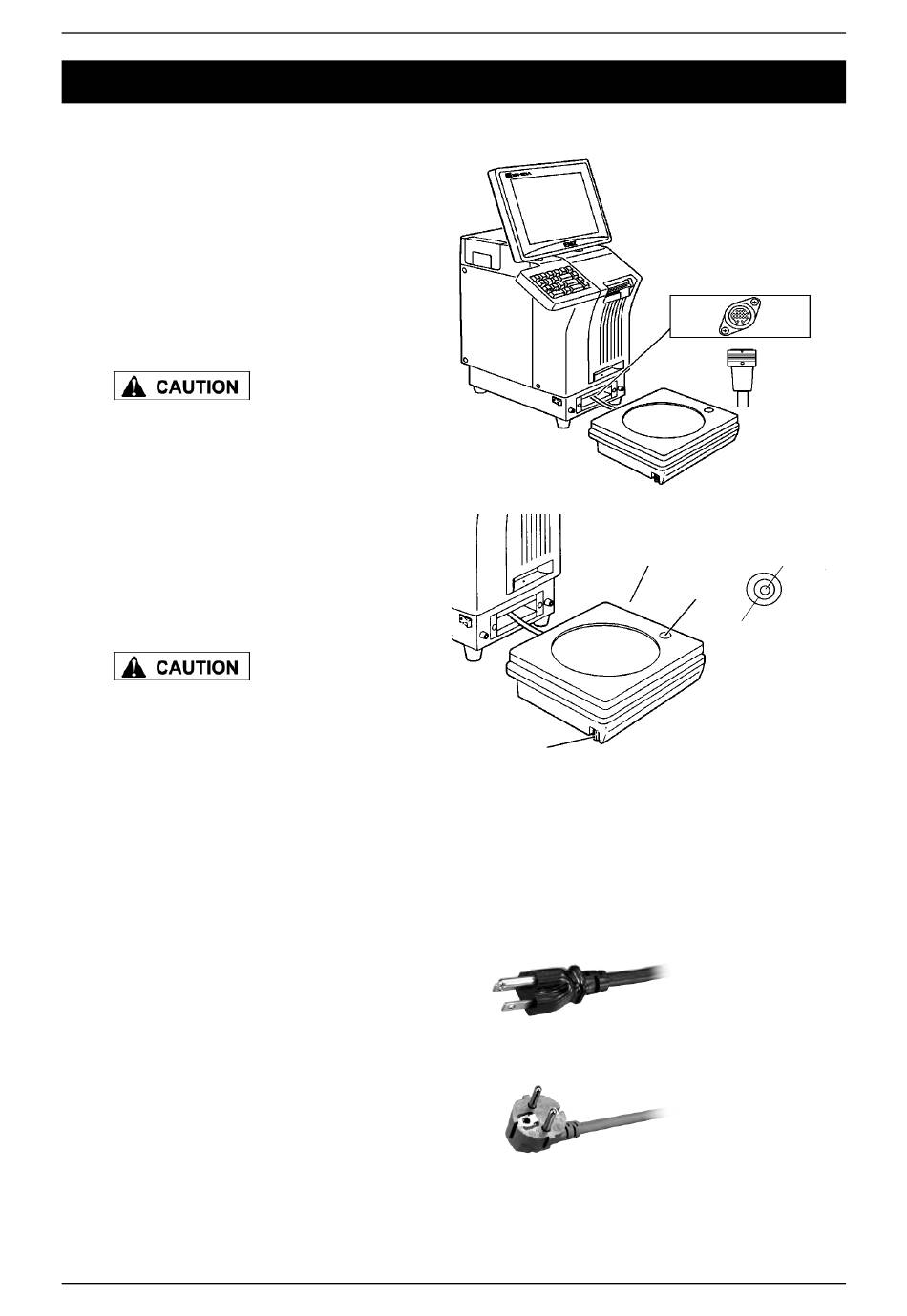

HARDWARE INSTALLATION

I nstall the main body to be able to see
1.
the display clearly and perform the key
operation easily.
Connect the cable of the scale unit with
2.
the main body.
Connection or separation in the
power-on state may cause damage.
Turn the level adjuster so that the unit
3.
is horizontally installed. To install the
scale unit horizontally, turn the level
adjuster until the bubble locates at the
center of circle of the level gauge.
If this adjustment is not performed
accurately, a weighing error may occur.
Make sure that the machine is
4.
grounded at the power supply outlet.
Insert the power plug into the outlet.
5.
1-8
Scale unit
Level adjuster
(CAN,USA)
(EU)
Bubble
Level gauge
Circle
