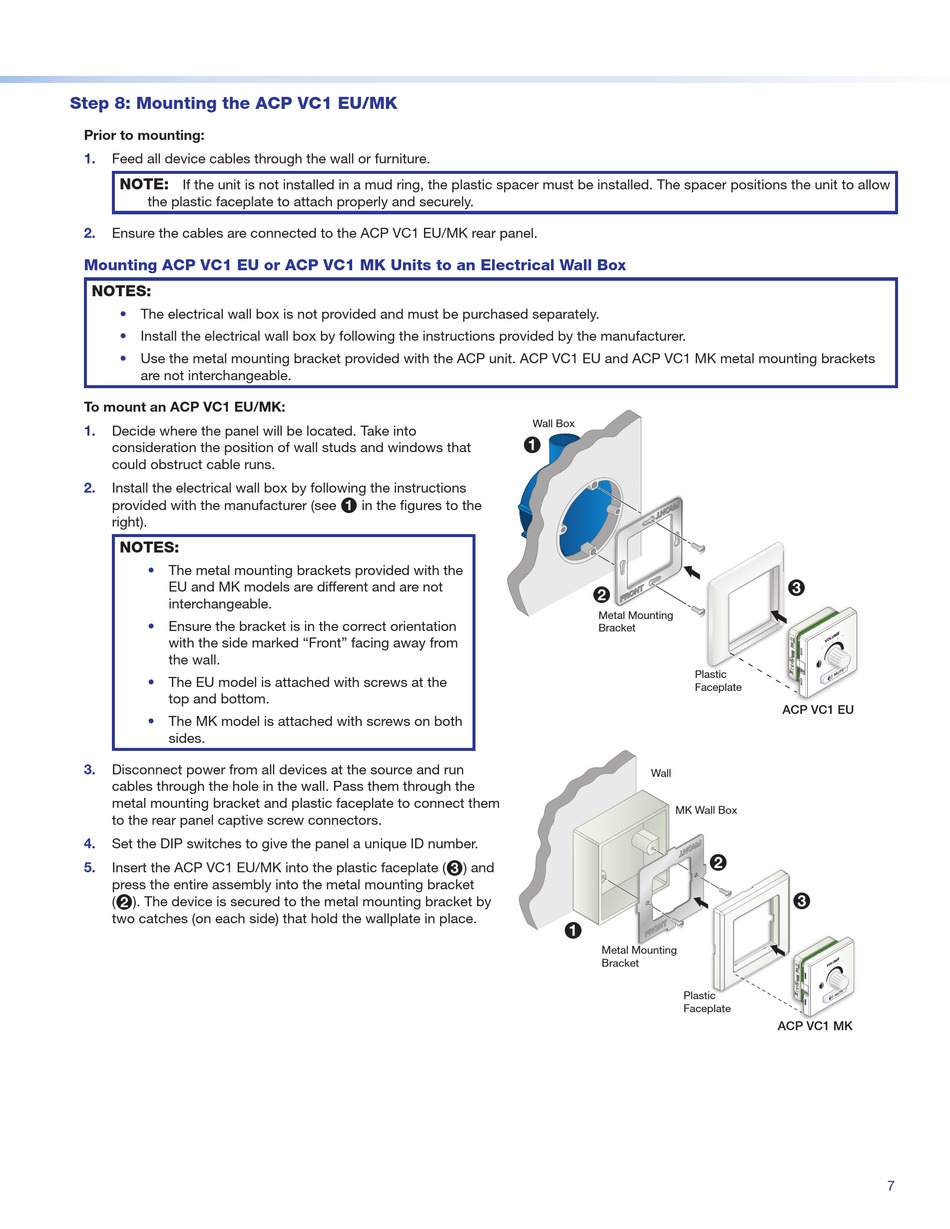

Step 8: Mounting the ACP VC1 EU/MK
Prior to mounting:
1.
Feed all device cables through the wall or furniture.
NOTE:
If the unit is not installed in a mud ring, the plastic spacer must be installed. The spacer positions the unit to allow
the plastic faceplate to attach properly and securely.
2.
Ensure the cables are connected to the ACP VC1 EU/MK rear panel.
Mounting ACP VC1 EU or ACP VC1 MK Units to an Electrical Wall Box
NOTES:
• The electrical wall box is not provided and must be purchased separately.
• Install the electrical wall box by following the instructions provided by the manufacturer.
• Use the metal mounting bracket provided with the ACP unit. ACP VC1 EU and ACP VC1 MK metal mounting brackets
are not interchangeable.
To mount an ACP VC1 EU/MK:
1. Decide where the panel will be located. Take into
consideration the position of wall studs and windows that
could obstruct cable runs.
2.
Install the electrical wall box by following the instructions
provided with the manufacturer (see
right).
NOTES:
• The metal mounting brackets provided with the
EU and MK models are different and are not
interchangeable.
• Ensure the bracket is in the correct orientation
with the side marked "Front" facing away from
the wall.
• The EU model is attached with screws at the
top and bottom.
• The MK model is attached with screws on both
sides.
3.
Disconnect power from all devices at the source and run
cables through the hole in the wall. Pass them through the
metal mounting bracket and plastic faceplate to connect them
to the rear panel captive screw connectors.
4.
Set the DIP switches to give the panel a unique ID number.
5. Insert the ACP VC1 EU/MK into the plastic faceplate (
press the entire assembly into the metal mounting bracket
( 2 ). The device is secured to the metal mounting bracket by
two catches (on each side) that hold the wallplate in place.
1 in the figures to the
) and
3
Wall Box
1 1
2 2
Metal Mounting
Bracket
Plastic
Faceplate
Wall
MK Wall Box
1 1
Metal Mounting
Bracket
Plastic
Faceplate
3 3
ACP VC1 EU
2 2
3 3
X
C
M I
M
R A
O G
P R
ACP VC1 MK
