RISERVATO AL PERSONALE AUTORIZZATO ALL'INSTALLAZIONE - ONLY FOR INSTALLATION-AUTHORIZED STAFF
3PH
POWER SUPPLY CABLE:
3 POLES+GROUND X AWG12
76

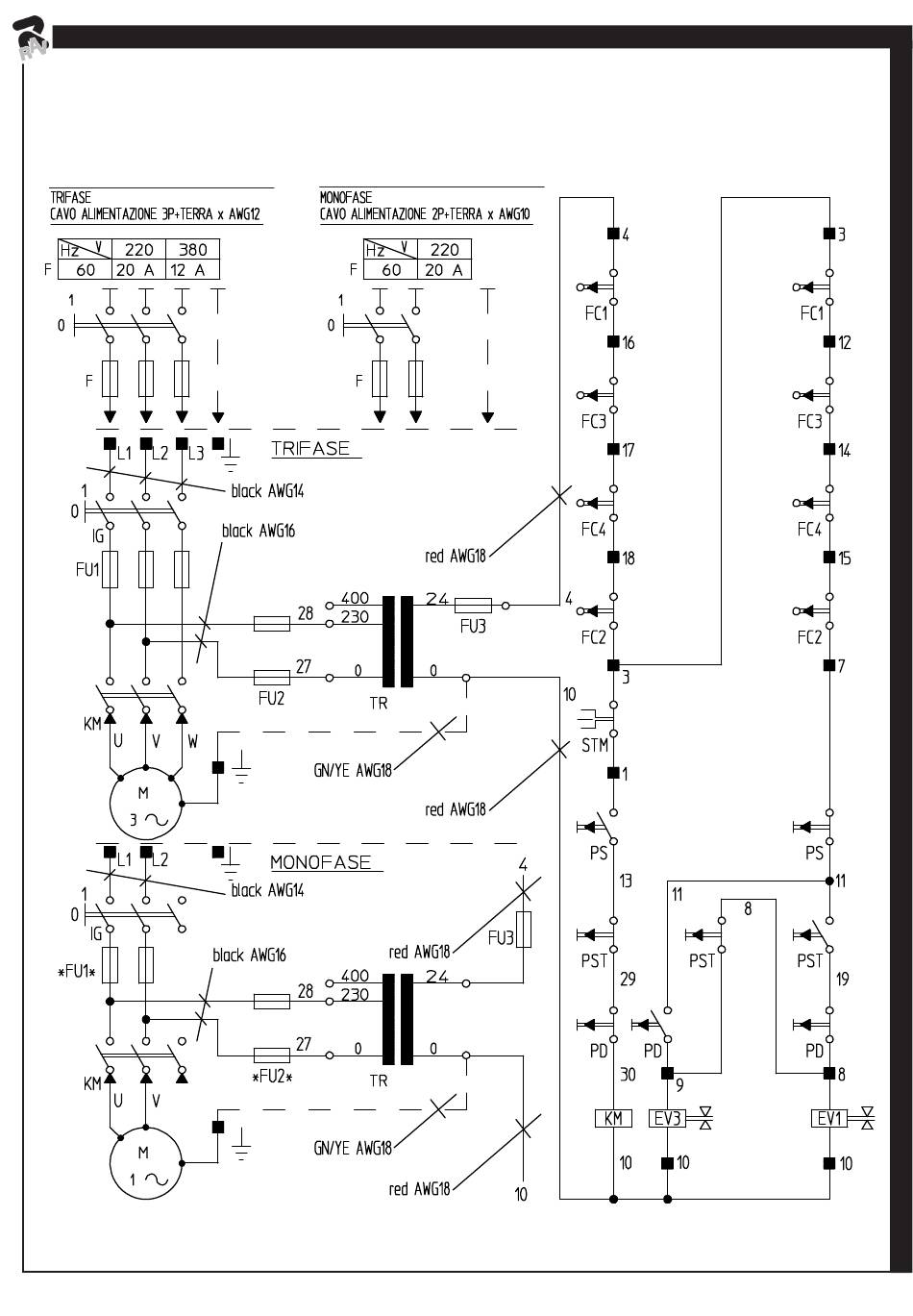

SCHEMA IMPIANTO ELETTRICO
WIRING DIAGRAM
1PH
POWER SUPPLY CABLE:
2 POLES+GROUND X AWG10
0750-M001-0
