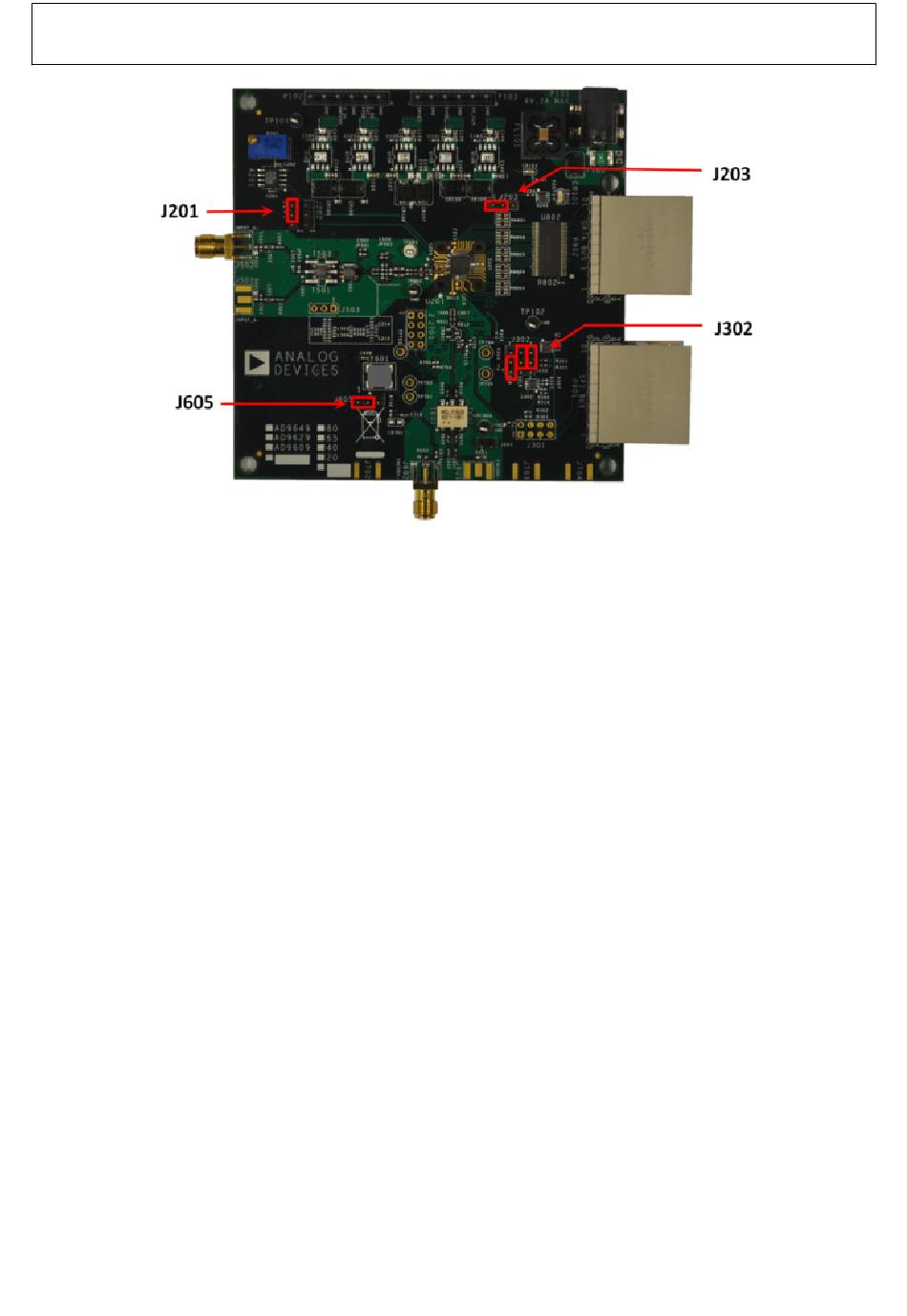

Figure 2. Default Jumper Connections for AD9266-80EBZ/AD9649-80EBZ/AD9629-80EBZ/

AD9609-80EBZ

Board

Evaluation Board Circuitry

This section explains the default and optional ADC settings or modes allowed on the

AD9266-80EBZ

and the

AD9649-80EBZ

boards.

Power

Connect the switching power supply that is supplied in the evaluation kit between a rated 100 V ac to

240 V ac, 47 Hz to 63 Hz wall outlet and to P101.

The analog input on the evaluation board is set up for a double balun-coupled analog input with a 50

Ω impedance. The default analog input configuration supports analog input frequencies of up to ~200

MHz.

Rev 03 Jun 2015 18:39 | Page 6
