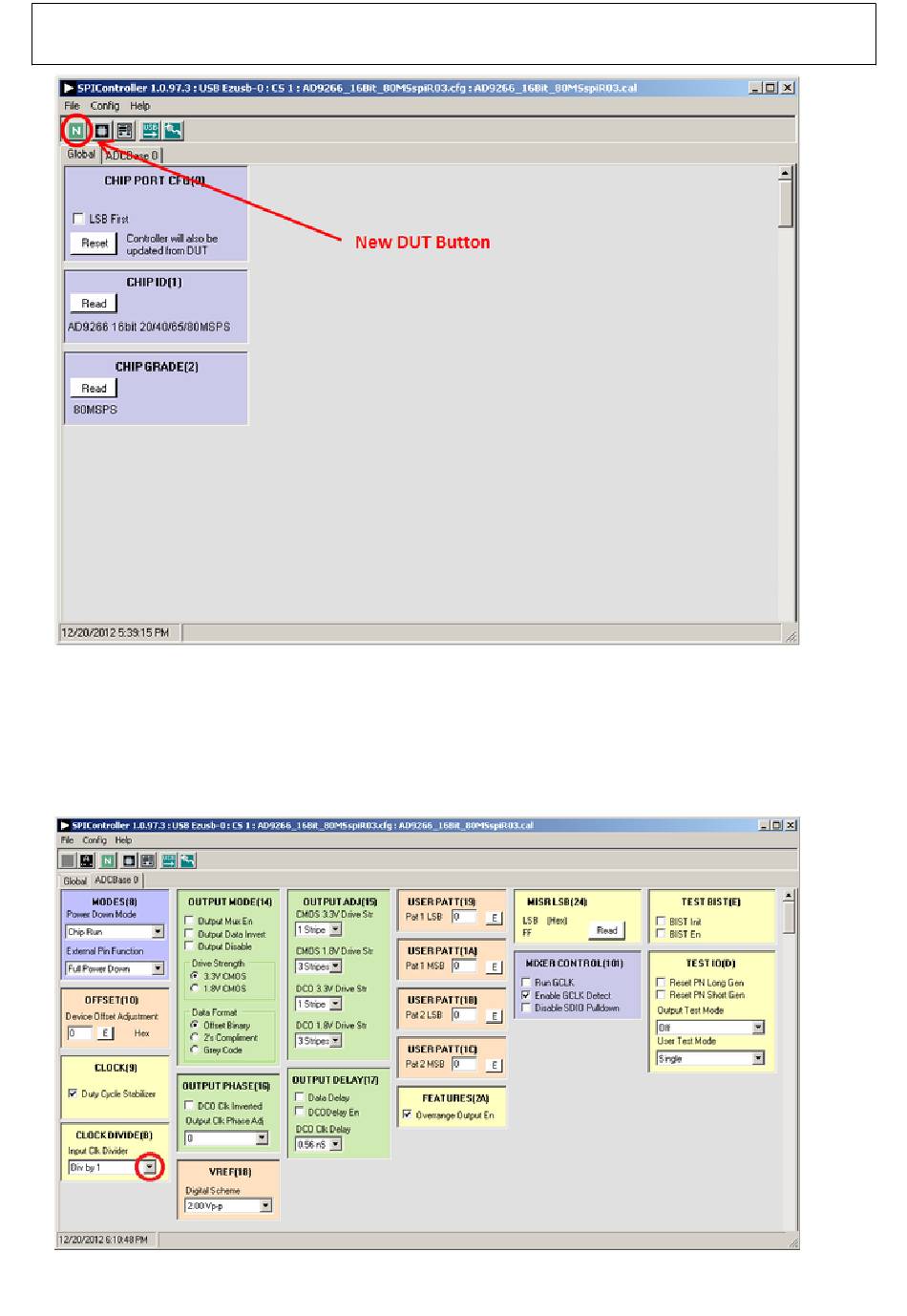

SPI Controller, New DUT Button
3.
In the ADCBase 0 tab of the SPIController window, find the CLOCK DIVIDE(B) box (see Figure
9), and the MODES(8) box (see Figure 9). If using the clock divider, use the drop-down menu to
select the correct clock divide ratio, as desired. If there is any interruption of the ADC clock during
power-up or during operation, a digital reset may be needed to reinitialize the ADC (Figure 10). For
additional information, refer to the data sheet, the
Control Software, and the
SPI Controller, CLOCK DIVIDE(B) Box
AN-877 Application
Note, Interfacing to High Speed ADCs via SPI.
Rev 03 Jun 2015 18:39 | Page 12
AN-878 Application
Note, High Speed ADC SPI
Figure 8.
Figure 9.
