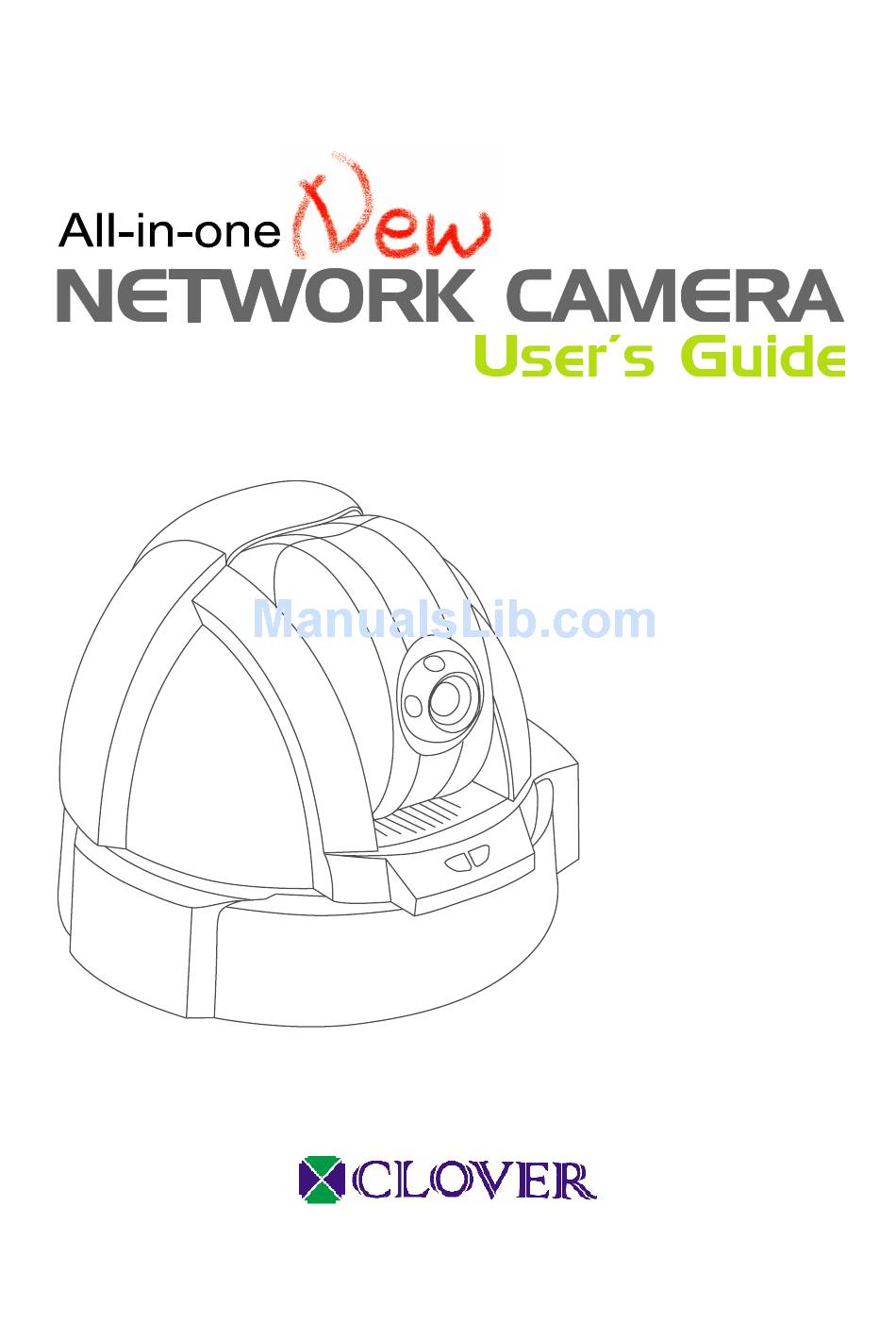

Clover USB01PT User Manual

Pan/tilt all-in-one new network camera
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the USB01PT and is the answer not in the manual?

Questions and answers

Related Manuals for Clover USB01PT

Summary of Contents for Clover USB01PT

  • Page 2 Please read the “User’s Guide” to use the product correctly.

  • Page 3: User's Record

    Record MAC Address in the space provided below. It is necessary to keep it when using Service that is Dynamic DNS server of Technical Support & Clover Electronics U.S.A. MAC Address: 0 0 – 0 8 – F 2 -...

  • Page 4: System Requirement

    ..............All rights reserved by Clover Electronics Inc. ; no part of this publication may be reproduced,...

  • Page 5: Fcc Statement (Usa)

    Approval ..............FCC statement (USA) The United States Federal Communications Commission (FCC part 15.105) has specified that the following notice be brought to the attention of users of this product:...
  • Page 6 To prevent any damage or accident due to mishandling the points mentioned above regarding to safety must be followed. Make sure to read them before installing the product. Clover Electronics Co Ltd is not responsible for any damage or incident occurred due to negligence of the safety points or caution...

  • Page 7: Table Of Contents

    Table of contents ..............Summary and Main Features Components of product Before Use...

  • Page 8: Summary And Main Features

    Summary and Main Features ..............What is PAN/TILT NETWORK CAMERA? PAN/TILT NETWORK CAMERA has a web-server H.323 protocol stack built-in itself, which enables it to transmit images and sound simultaneously and to connect between H.323 and...

  • Page 9: Main Features

    Pan/Tilt Network Camera Main features Built-in Web Server & Web interface It has built-in Web Server that transmits image and sound data in real-time through the network, and without any additional program, an access to the server via Web browser such as MS Explorer is available.

  • Page 10: Components Of Product

    Components of product ..............Item check Please make sure all the items listed below are contained before use.

  • Page 11: Name Of Parts

    Name of parts Lens Action LED LAN Port (10 Base-T) Multi Port Item Lens Fixed lens. Default: F 6.0mm, Option: F 3.8mm Power LED Displaying red light when power is on. Action LED Flashing green light when using LAN service. LAN Port Connecting10 Base-T LAN cables Connect to AC Adapter.
  • Page 12 Factory Reset MAC Address Label Internal Camera Type Items Factory Reset MAC Address Label Ceiling Plate Hole Internal Camera Type Assembly Type Video image is displayed upside down when set up as desktop, therefore it is necessary to get desktop assembly type when purchasing camera. <Bottom View>...

  • Page 13: Before Use

    Before use ..............Set-up procedure In order to set up a network camera, please refer to the following procedure.

  • Page 14: Checkpoints According To Network Type

    Items to be confirmed before set up by network type 1. Before installing network camera, confirm user’s network type A. Static IP(Public) : it is a Network component that is given Static (Public) IP from Internet service provider (Cable, Private line) Network TYPE 1, Network TYPE 2 Make a note and confirm Static (Public) IP given by internet service provider and other network environment information.
  • Page 15 Pan/Tilt Network Camera C. Static IP (Private): it is a network that has several Static (private) IP addresses with one Static (public) IP address. Using general IP router, it composes into interior private IP network environment i. Network TYPE 3, Network TYPE 5 ii.

  • Page 16: Internet Service Environment And Dns Server

    Camera connection and IP set-up ..............Connection Method 1) Connect camera to PC directly Method 2) Connect camera to the internet or LAN...

  • Page 17: Camera Ip Setup Using Setup Ip Program

    Set up camera IP using Setup IP program 1. Characteristic and caution to Setup IP program A. Setup IP Software (Version 2.0.0.2) only operates in Static IP set-up mode. In case the camera has been set up in Dynamic IP or/and PPPoE mode, it is advised that the camera is to be initialized to the Static IP using the factory Reset.
  • Page 18 iii. Primary DNS Server: Enter DNS Server provided by Internet Service Company. Refer text 13 Pages Web Server Port (TCP/IP): It is a port for Web Page of camera and data communication. Video Server Port(TCP/IP): It is a port for Video of camera &...
  • Page 19 D. After completing camera setting normally, success message window is created as shown in the diagram when click [Apply] button click Confirm] and finish setting. Error message is displayed as follows in case it is set up by IP that exists in local area network then you need to set up again.

  • Page 20: Camera Ip Setup Using Temporary Ip Address

    Setting up camera IP using temporary IP address Change Internet Protocol (TCP/IP) of PC to connect into camera as following. IP Address: 192.168.1.11 Sub Net Mask: 255.255.255.0 Gateway: 192.168.1.1 For Windows 98 A. Double click on Start-> set-up-> control-> network After click "TCP/IP"...
  • Page 21 C. Click “internet protocol (TCP/IP)” then click (Properties) Make a tick for”when linked, indication of icon on task bar,” network icon is shown on the right below (tray icon) of PC screen D. Enter network information in [Use the following IP address] as on the window.
  • Page 22 3. Connect to camera A. Type 'http:// 192.168.1.2 /' in Internet Explorer's address B. Download Active X Control automatically. C. Active X Control capacity is about 1.8M so that downloading can take a sometime depending on network state. (Confirm whether Internet tool security item of Explorer's pull-down menu are set up in (normal) ) D.
  • Page 23 F. When Administrator page is open click [TCP/IP] of [Network] group on the left side menu. G. After selecting Network Type (1), set up IP Setting (2). Refer to text page 41- 42 for detailed setting method and comment. H. Click [Apply] button to finish setting. Virtual IP Address is given to camera for emergency connection and it should not be changed to be used in following cases - Do not know IP Address of camera...

  • Page 24: Camera Setup Of Private Network Using Router And Port-Forwarding Method

    Camera setting and port-forwarding method in private network using IP Router Assume that network structure of above picture is set up as follows. Internal connection IP Address of Router: 192.168.1.1 Private IP Address of camera: 192.168.1.51 1. Camera set-up A. Network Type: Static IP IP Setting i.
  • Page 25 iii. Subnet mask: 255.255.255.0 (Follow IP router’s setting) iv. Default Gateway: 192.168.1.1 ( enter intra-connection IP Address of IP router) v. Primary DNS Server: enter DNS Server of internet service provider vi. Web Server Port(TCP): 2051 ( it is recommended to add 2000 to the end number of IP Address and you can assign other port of number 1025 ~ 65535) vii.

  • Page 26: Terms Of Web Page And Functions

    Name of web page and function ..............Section Name It can move camera immediately to specified position that stored in...
  • Page 27 Alarm I/O Mark Alarm Input state, and control Output terminal On/Off Position: It shows absolute position control window in Display area. Status: It shows status bar that can confirm name of camera, time, setting state and number of connection. Record: Record/stop moving pictures Still Image: It captures still images in new window.

  • Page 28: (Section 1) Preset

    (Section 1) Preset Menu Preset List 1. Add / Edit Preset No. A. Click (Edit) button and then a Preset number. Enter information in “Preset Position Add “window and click [OK] button. Preset Position index: Selected Preset number Preset Position Name: Arbitrary name by user iii.
  • Page 29 2. Move A. Click [Move], and then preset number, camera moves at the specified speed and at the same time Alarm Out function runs 3. Delete A. Select Preset number that wish to delete after click [Delete]. Click (OK) to confirm. Pan/Tilt Network Camera - 26 - User’s Guide...

  • Page 30: (Section 2) Patrol

    (Section 2) Patrol Preset number Preset name 1. Edit A. Click (Edit], then, "Patrol Edit" window is created i. No: It is an order of movement pattern. ii. Description: It indicates Number and name of Preset.. B. Click arrow, and then, select Preset that is shown in list. 2.

  • Page 31: (Section 3) Sensor

    (Section 3) Sensor Camera If sensor is installed to Input terminal of Alarm I/O Module, shown as the above picture and On/Off appliances are installed to Output terminal and connected to camera, it can be applied to security surveillance system using "Sensor" function. 1.

  • Page 32: (Section 4) Video

    (Section 4) Video 1. Resolution A. You can select Video resolution among 6 steps. Since Image of high Video resolution is large in volume, network transmission speed becomes slow. Therefore, it is recommended to use Video resolution of CIF (352x288) or SIF (320x240). Resolution: 4CIF(704x576), 2CIF(704x288), 640x480(VGA), 352x288(CIF), 320x240(SIF), 176x144(QCIF) 2.

  • Page 33: (Section 5~7) Display Area, Admin Tools, Connect/Disconnect

    (Section 5) Display Area 1 CH View 640 Pixels (Section 6) Admin Tools Environment setting of Video/Audio, Network, System, Sensor and Motion Detection of camera and additional function can be set up. You can log in to Administrator account and refer to text page 38 ~ 50 for detailed contents and explanation (Section 7) Connect / Disconnect Connect: Connect by entering network information camera.
  • Page 34 To enter camera information (Server Manager) Use when you wish to connect by entering camera information manually not using Auto-Login function. Also, you can use when connecting 4 cameras at once in Multi-Views. 1. Group : Click ‘Group’ as shown on the right diagram. A.

  • Page 35: (Section 8) Select View Mode, (Section 9) Motion Control

    (Section 8) Select View Mode 1.channel (Section 9) Motion Control 1. Jog button A. It controls Camera in all direction (up/down/left/right). B. Center Button: It Moves camera to the original position (center). 2. Speed Control Slider Bar A. It Regulates the speed of camera in 10 steps. 3.

  • Page 36: (Section 10, 11-1) Alarm I/O, Position

    (Section 10) Alarm I/O Sensor installed to Alarm IN 1 is on and Alarm Sound is generated by PC speaker Click icon to cancel. 1. Sensor installed to Alarm IN 1 is on and LED is turned on. 2. LED light indication of Alarm IN works only when surveillance setting of "Sensor" is put on [Enable] 3.

  • Page 37: (Section 11-2, 11-3) Status, Record

    (Section 11-2) Status Camera time Alias Name of camera appointed in admin tool 1. It indicates name, time, and number of connection and status of camera. 2. Status icon is activated when each function is on. 3. (Connection) icon indicates that when activated, it is connected to Operator’s account and when inactivated it is connected to viewer’s account.

  • Page 38: (Section 11-4) Still Image

    Pan/Tilt Network Camera (Section 11-4) Still image 1. Capture the image of the moment when click [Still Image] and shows on new window. 2. Save: click on icon shown on the picture and save or click the right mouse button and choose “Save Picture As”...

  • Page 39: (Section 11-5, 11-6) Video Player, Sound

    (Section 11-5) Video Player Rec. time File name Play Pause Stop 1. Click [Video Player] and then the support program runs to play the recorded moving picture file (*.swi). 2. Pull-down menu A. File Open: Choose the recorded picture file. File Close: To open another picture file and play you need to close all other files that are playing.

  • Page 40: (Section 11-7, 11-8, 11-9, 12) Mic, Stretch, Zoom, H.323 Mode

    (Section 11-7) MIC 1. It delivers sound by speaker installed to Audio Out of camera through microphone installed to 2. According to network transmission speed, the sound may not travel properly, it is recommended to adjust quality of image appropriately to improve quality of sound. 3.

  • Page 41: Administration Tools

    Administration Tools ..............Video &...

  • Page 42: Mount Type

    2. 6.0mm: It is a standard lens and has a view angle of 52° 3. 3.8mm (Option): It is a wide-angle lens with a view angle of 97° and used to set camera up in a small room less than 3m (3.8mm lens) Appearance i.
  • Page 43 3. File Size is determined by video quality and check the speed of network upload referring to this. It is set in High by manufacturer. iii. Brightness: It controls the brightness of image. . (Default: 5) iv. Contrast: it controls definition of image. (Default: 2) 2.

  • Page 44: Network

    Network 1. TCP/IP A. Network Type Static IP 1. Set up IP Address, Subnet Mask, Gateway and DNS Server given by internet service provider (ISP) of network administrator. It is the same set-up as PC network installed with camera. 2. Set up Web Server Port and Video Server Port (Default: 80, 4333) 3.
  • Page 45 When Auto-Reboot Flag is set (available only for Static IP) Click [Apply] to reboot camera after DDNS setup Refer text page 66-67 “(Ref 6) Use of SecuIP Service (DDNS) for detailed method on the use of Dynamic DNS server of CLOVER ELECTRONICS U.S.A Pan/Tilt Network Camera - 42 -...
  • Page 46 3. SMTP A. Enable/Disable: Choose Enable or Disable. Mail Server SMTP Server: 1. Enter a sending mail server. 2. When domain name has more than 20 characteristic (alphabet), IP Address is entered. 3. When entering domain name, DNS of TCP/IP must be set up correctly. 4.
  • Page 47 You will receive a file with information of camera’s condition attached as follows when an incident occurs while sensor and Motion Detection are on. Subject: [Warning] Motion Warning from “Alias name” [Warning] Sensing action in Motion detection region of "Alias name" ============================================================= - IP address of "Alias name"...

  • Page 48: System

    System 1. Date & Time A. Current Camera Date & Time It indicates current date and time in camera. New Camera Date & Time Synchronize with computer time : Camera time is synchronized with computer time Set manually : Set camera time manually If “Synchronize with Dynamic DNS time”...
  • Page 49 2. Users A. Administrator Can monitor image and sound, connect into Administration tool and control motion of camera up/down/left/right. Administrator’s account is set up with admin (ID) and passes (Password) when manufactured. iii. To change account is details, click [Edit] to edit and click [Save] to save the changed details.
  • Page 50 It is registered automatically to “Server Manager” of PC with a name “My Camera” 4. Firmware Update : CLOVER ELECTRONICS U.S.A. provides the update of Firmware to improve performance of camera. Refer to pages 57-59 “[Reference 4] Firmware Update method” for Other detailed contents 5.

  • Page 51: Motion Detection

    Motion Detection Detect motion of camera image and then gears with the motion that is set in “Act of Motion Detection” 1. Enable/Disable: Set act of motion Detection. 2. Region Setting A. Set surveillance area. Can choose among Wide, Normal and Narrow (Wide) When motion detection is on, Video Resolution is auto-changed to CIF(352x288) Video Resolution is recovered to monitoring mode when it’s off.
  • Page 52 3. Motion Sensitivity A. Set motion sensitivity. It can be set in between level 1 and 5 and lower the lever, higher the sensitivity so that it enables to detect small motion. Therefore select the level appropriately. 4. Position Setting A.

  • Page 53: Sensor

    Use to restart the system when camera dose not work properly or failure of the initial communication with Dynamic DNS Support It is linked to web page of the manufacturer, Clover Electronics Inc. Please go to web page for technical support and enquiries. Pan/Tilt Network Camera - 50 - User’s Guide...

  • Page 54: Faq

    The web page of Pan/Tilt Network Camera is based on the simultaneous monitoring up to 4 cameras. You can have up to 16 cameras monitored on a single screen at once when multi- viewing products of CLOVER ELECTRONICS U.S.A., SecuEyes-MV16 or MR16 are installed 9. Up to how many simultaneous connectors does it allow? Up to 15 persons for a web page (HTTP) and 2 persons for H.323...
  • Page 55 10. What do I do if Active X Control is not set as shown on the below diagram?? Occasionally, Active X Control is not set up as intended depending on the system. in this case, a new version of Active X Control cannot be set up. Active X Control that is previously Therefore installed abnormally should be deleted and re-...

  • Page 56: [Ref 1] Appearance Of Product

    Pan/Tilt Network Camera [Ref 1] The appearance of product ..............- 53 - User’s Guide...

  • Page 57: [Ref 2] Camera Set-Up

    Pan/Tilt Network Camera [Ref 2] Camera setting ..............1.
  • Page 58 5. Put Ceiling Plate Hole of camera and 4 latches of Ceiling Plate in line and fixed them by pushing in the direction of arrow as shown in the right diagram 6. Put Rear Cover as shown in the left diagram and push down and towards into camera in the direction of arrow on the right diagram.

  • Page 59: [Ref 3] Disassembly Of Camera

    [Ref 3] Disassembly of camera ..............1.

  • Page 60: [Ref 4] Firmware Update

    [Ref 4] Firmware Update method ..............When updating Firmware web browser under the Internet Explorer 5.0 (SP2) may not work normally.
  • Page 61 Pan/Tilt Network Camera Click [Start Update] to upload firmware file to camera. 5. When file uploading finishes, delete existing firmware of flash memory < Delete existing firmware> 6. Save new firmware in memory and notify the progress of camera to user by Progressive bar(Progressive bar) - 58 - User’s Guide...
  • Page 62 7. Click [Close] when firmware update is completed as shown below. If the following problems occur In the middle of Firmware Update, reconnect to camera and start Firmware Update again from the beginning.. If it stops running after file Upload is finished. If there is no indication of the progress or error occurs ( It can update only a part of firmware in flash memory.) Pan/Tilt Network Camera...

  • Page 63: [Ref 5] Set-Up Of Different Types Of Routers

    [Ref 5] Different router models and setup methods When it is composed of public IP network group (Modem) and private IP network group (Router) as the above picture, you need to change IP of router to 192.168.10.1 because routing table must be different between modem and router. 1.
  • Page 64 2. ZIO (INB3040SR) A. Set-up procedure Router Connection: enter http://192.168.0.1 in the address window of internet explorer Port forwarding and virtual server 1. Select [additional registration] –(virtual server) 2. Registration information (Web Server Port forwarding) A. Check usability. B. Choose Camera (IP) from PC (server) C.
  • Page 65 The above setup and all router setup hereafter only apply when TCP/IP of camera is setup as below. IP Address: 192.168.10.51 Subnet Mask: 255.255.255.0 Default Gateway: 192.168.10.1 Web Server Port: 2051, Video Server Port: 3051 4. Reenet (RX-3400 Plus) Set-up procedure Router connection 1.
  • Page 66 6. 3Com (3C857-US) A. Set-up procedure Router connection 1. Enter http://192.168.1.1. in the Internet Explorer address window 2. System Password : admin Change of Router IP setup ( it must be the same as Gateway of camera) 1. [LAN Settings – LAN IP Address ] 2.
  • Page 67 6. Click [Apply] 7. Add Port Number: 3051 by repeating step 2-6. 8. Linksys (BEFSR41) A. Set-up procedure Router connection 1. Enter http://192.168.1.1. in the Internet Explorer address window 2. System Password : admin Change of Router IP setup ( it must be the same as Gateway of camera) 1.
  • Page 68 5. Private IP Address: enter 51 6. Private port: 2051 7. [Click [Apply] 8. Description: enter Video 9. Add Port Number: 3051 by repeating step 3-7 10. Netgear (RP614) A. Set-up procedure Router connection 1. Enter http://192.168.0.1. in the Internet Explorer address window 2.
  • Page 69 8. Add Port Number: 3051 by repeating step 2-7 12. SMC (SMC7004VBR) A. Set-up procedure Router connection 1. Enter http://192.168.2.1. in the Internet Explorer address window. 2. System Password: smcadmin Change of Router IP setup ( it must be the same as Gateway of camera) 1.

  • Page 70: [Ref 6] Terms And Functions Of Alarm I/O Module

    [Ref 6] Name and function of Alarm I/O Module ..............1.
  • Page 71 C. The bottom Dip Switch set-up 1. Action Input: it turns ON/OFF the power of Alarm I/O module A. ON: when not using the function of Action Input B. OFF: when using the function of Action Input (refer the below diagram) 2.

  • Page 72: Alarm Input

    2. Alarm Input Connect sensor to Alarm Input terminal for detecting a trespass or an unusual situation. <1> Normal 3. Alarm Output Connect On/Off device such as siren, lamp and etc to Alarm Output terminal <1> Alarm Output Status: OFF Terminal1 Terminal2 <2>...

  • Page 73: [Ref 7] Factory Default Value

    [Ref 7] Factory default value ..............Title - Alias Name - Select Camera...
  • Page 74 - Enable/Disable - SMTP Server - My server requires SMTP Authentication - Account name - Password - Mail Address(Recipient-Address) - Simultaneous Connections H.323 - Connect Password - Date Date & Time - Time - Administrator: ID, Password - Operator: ID, Password Users - Viewer: ID, Password - Auto Login...

  • Page 75: [Ref 8] Specification

    Pan/Tilt Network Camera [Ref 8] Specification ..............- 72 - User’s Guide...
  • Page 76 Pan/Tilt Network Camera - 73 - User’s Guide...
