Low-battery alarm
Only use original batteries. Original batteries can be ordered at the manufacturer.
The use of unapproved batteries will void the warranty.
•
At the end of the battery's life-time, the
voltage starts to drop. When the voltage
becomes too low, the battery indicator comes
on. When the battery indicator is on, install a
new and fresh battery as soon as possible.
▪
No-flow alarm
The F132-P offers a no-flow monitoring feature: When the flowmeter does not generate a signal
during a certain (preset) time period, the F132-P will shut-off the control output(s) and bring the
batch controller in alarm status. The "PAUSE" and "ALARM" indicators come on and NO FLOW is
shown. Press the STOP/ key to confirm the alarm status and note that the "PAUSE" indicator
stays on. Now you can cancel or continue the batch (after you have solved the possible problem).
▪
Alarm
When the alarm indicator is shown, refer to Appendix B: Problem Solving.
▪
Printer malfunction
Refer to the manual that came with the printer or refer to Appendix B: Problem Solving.

3 CONFIGURATION

This and the following chapters are exclusively meant for electricians and non-operators. In these,
an extensive description of all software settings and hardware connections are provided.
•
Mounting, electrical installation, start-up and maintenance of this device may only be
carried out by trained persons authorized by the operator of the facility. Persons must
read and understand this Manual before carrying out its instructions.
•
This device may only be operated by persons who are authorized and trained by the
operator of the facility. All instructions in this manual are to be observed.
•
Make sure, the measuring system is correctly wired up according to the wiring diagrams.
Protection against accidental contact is no longer assured when the enclosure cover is
removed or the panel cabinet has been opened (danger from electrical shock). The
enclosure may only be opened by trained persons authorized by the operator of the
facility.
•
Take careful notice of the "Safety rules, instructions and precautionary measures" in the
front of this manual.
The SETUP menu is used to program the F132-P.
The SETUP menu is accessible at all times while the F132-P remains fully operational. Be aware
that in this case any change to the settings may have an influence on the operation.
It is possible to prevent access to the SETUP menu with a password. A password may be
required to enter the SETUP menu. Without this password, access to SETUP is denied.
3.1

HOW TO PROGRAM THE F132-P

Press the PROG/ENTER key for 7 seconds to access the setup menu.
FW_F132P_v1901_02_EN.docx

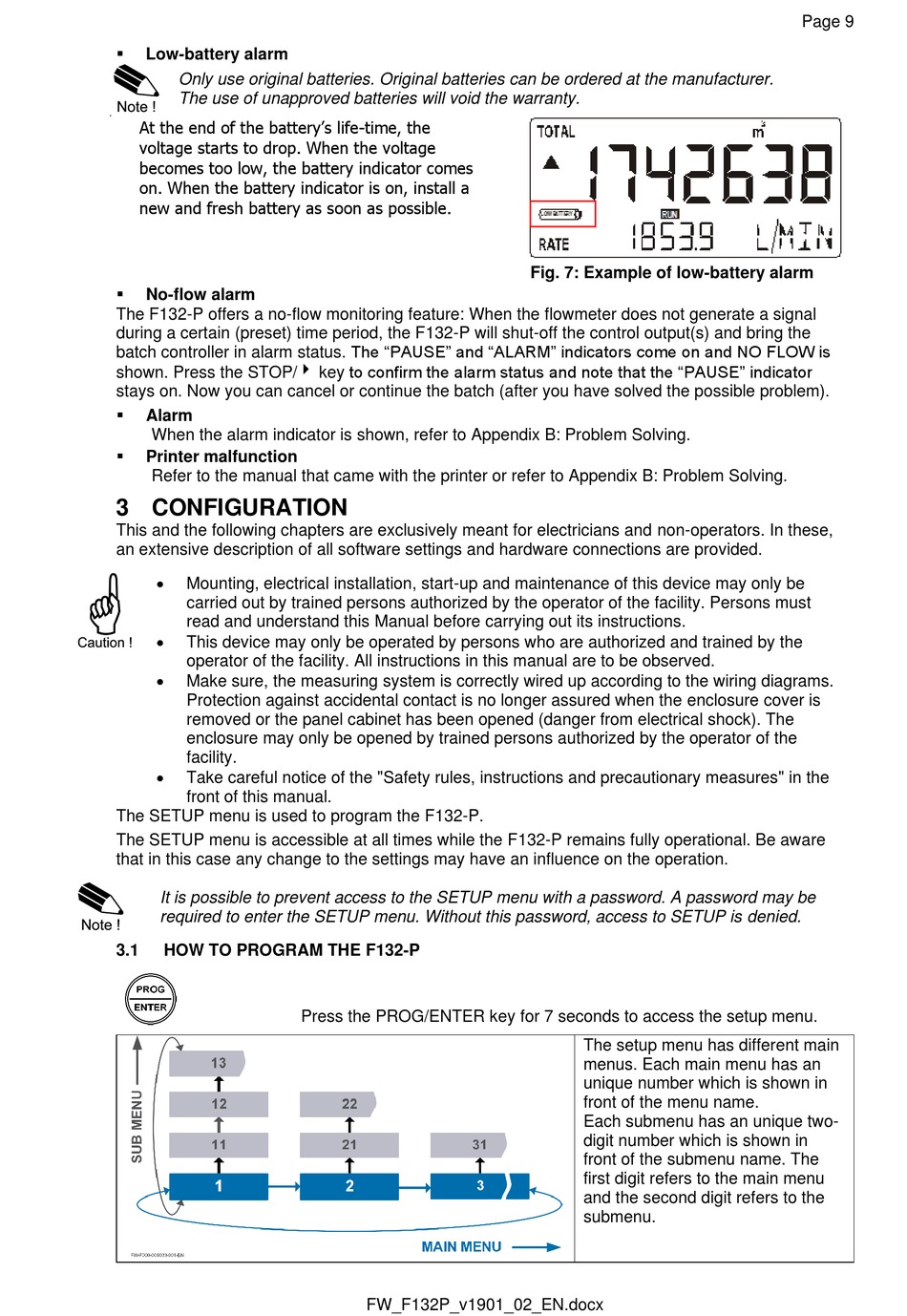

Fig. 7: Example of low-battery alarm

The setup menu has different main
menus. Each main menu has an
unique number which is shown in
front of the menu name.
Each submenu has an unique two-
digit number which is shown in
front of the submenu name. The
first digit refers to the main menu
and the second digit refers to the
submenu.
Page 9
