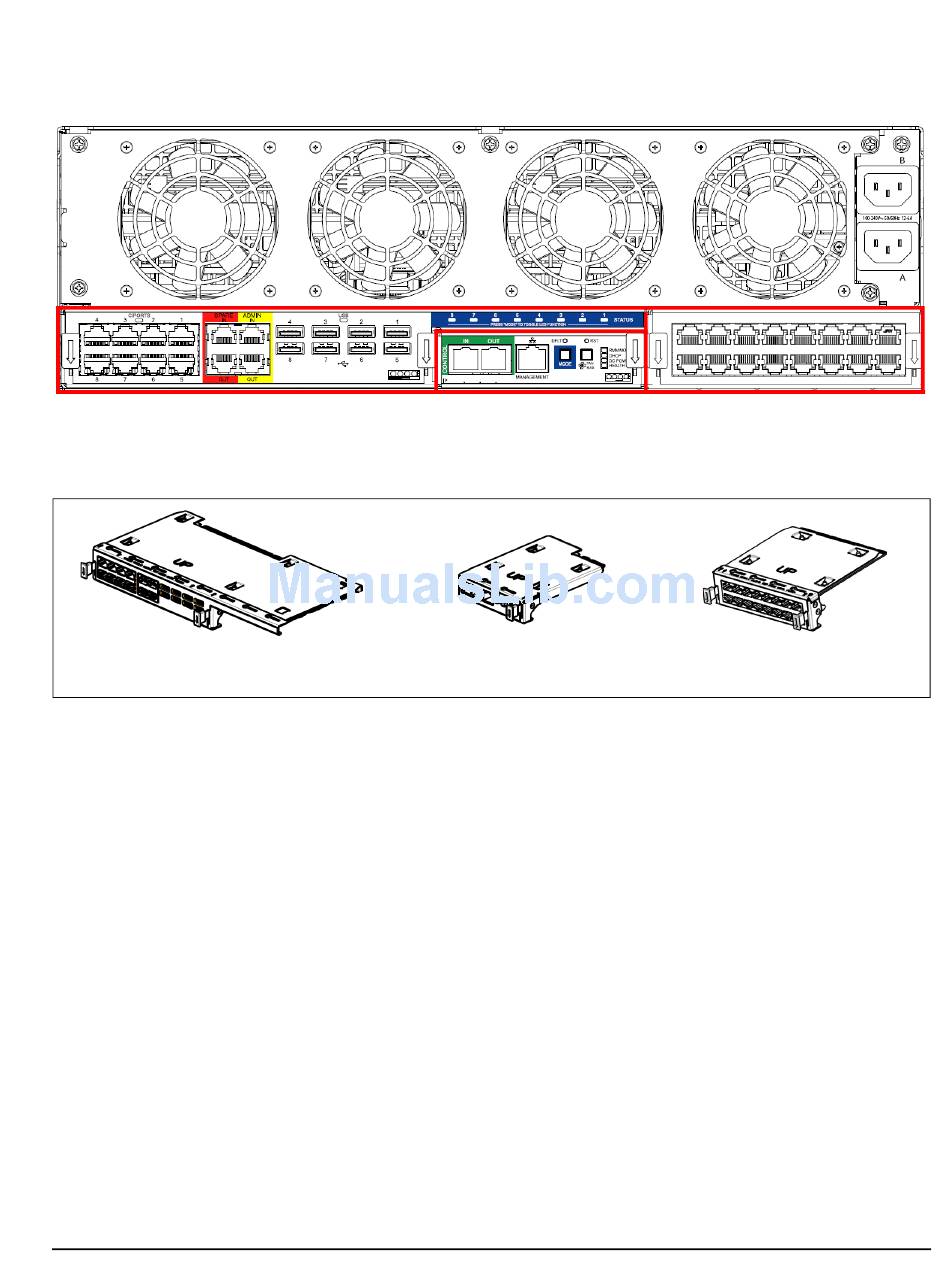

Figure 19 shows the back apron of the R4300, with the three module bays
designated. Figure 20 shows typical R4300 modules.
Connect Bay Network Bay
Management Bay
Figure 19 R4300 Module Bays
Connect Module Management Module

Network Module

Figure 20 R4300 Modules
On the left in Figure 19, the Connect Module provides connectors for C/Ports, USB
ports, and sparing. On the right, the Network Module provides Ethernet connections.
In the center, the Remote Management Module provides network and daisy-chain
control connections, chassis health indicators, and fan speed control. The Status
LEDs in the blue area above the Management Bay are shared between the sets of
connectors to provide information about each kind of connection to each blade in a
manageable fashion.
Table 3 provides details of the features of the modules, and describes their
interactions. Note that some features are color-coded to show that their functions are
inter-related. For example, features coded blue are for monitoring the status of the
various connection ports on the R4300.
R Series Data Center Products User's Guide, Rev. B Chassis and Blade Installation • 41
