ClearCube R1200 User Manual page 41

Front Rack Ears Locking Latch
Main Bracket
R Series Data Center Products User's Guide, Rev. B
Finger Handle

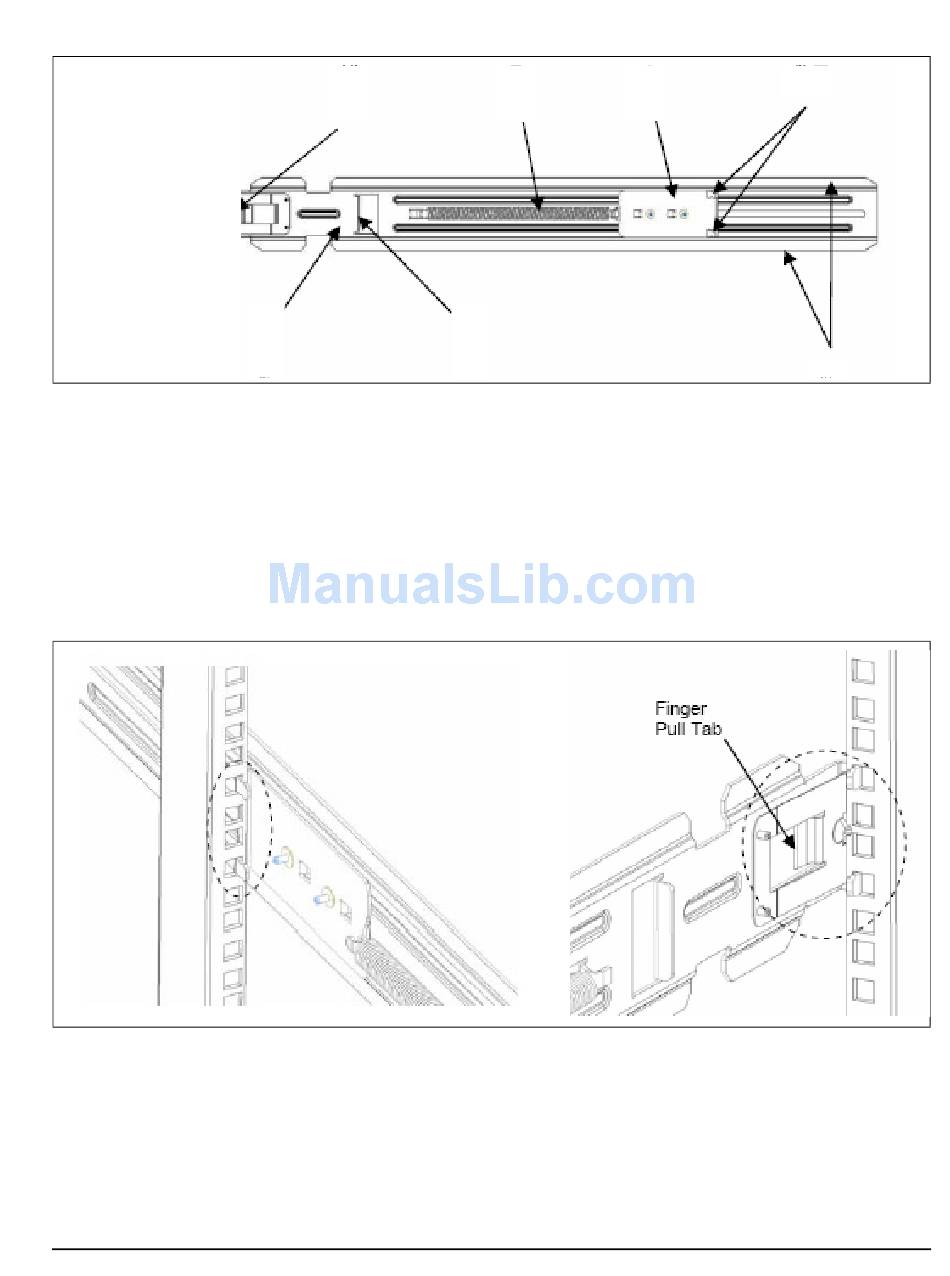

Figure 15 Rack Bracket for CRM Kit
1. Unscrew the thumbscrew holding each pair of chassis and rack brackets together,
and slide the brackets apart.
2. Mount the chassis bracket to the chassis with 4 flathead screws. Repeat on the
other side.
NOTE: The chassis and rack brackets are interchangeable side-for-side.
3. Determine the location and holes to be used to mount the rack ears on the rack
bracket. A guide is provided in the CRM packaging. Insert rack ears on
spring-loaded slider to the back side of the back rack post.
Back of Rack Bracket
Figure 16 Rack Bracket Attachment Points
4. Pull the rack bracket forward and insert the front rack ears on the back bracket
into holes on the front side of the front post. Push forward on the ears until the
latch snaps and locks into place. Ensure the front ears are placed into the
Spring Slider
Front of Rack Bracket
Slider (Back)
Rack Ears
Flanges
Chassis and Blade Installation • 37
