R Series Data Center Products User's Guide, Rev. B
R4300 Chassis
By using a range of hot-swappable modules, the R4300 chassis provides a wide
range of options for C/Port and I/Port connections to blades and to the network.
Modules can be installed either when the chassis is installed, or when the blades are
installed. Because these modules provide all the data I/O for the system, cabling
cannot be completed until these modules are in place.
CAUTION: To avoid equipment damage and potential personal injury,
always install the chassis in the rack before installing any blades in it.
The three externally accessible module bays are as follows:
• Connect Bay
• Management Bay
• Network Bay

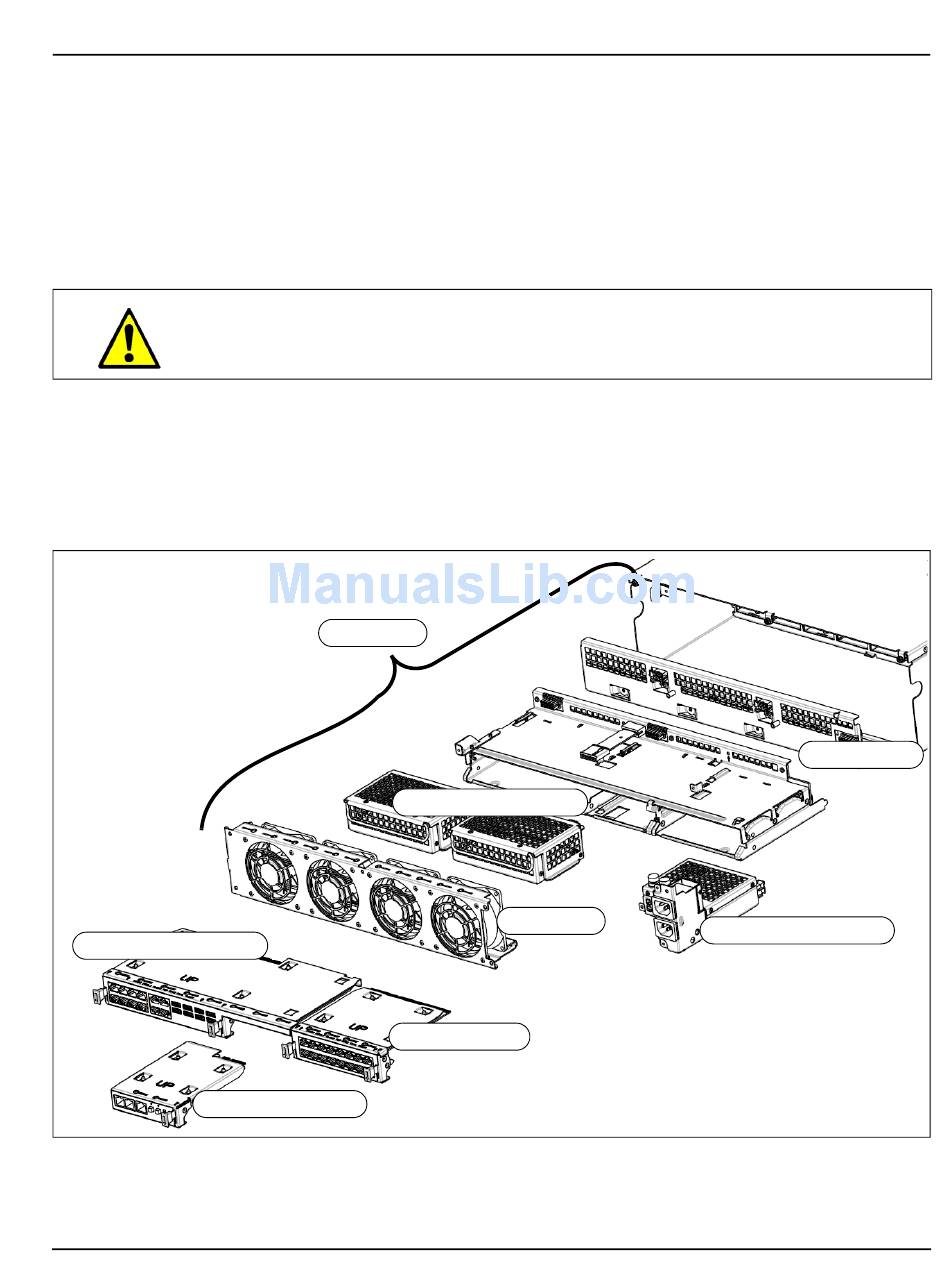

The R4300 accepts the modules as shown in the positions in Figure 17.
Chassis
Power Supply Modules
Network Module
Figure 17 R4300 Exploded View
Fan Pack
Chassis and Blade Installation • 39
AC Backplane
Dual A/C Input Module
