d. After pressing Enter, you are presented with a list of available SCSI Adapters.
Select your controller from the list. The up and down arrow keys can be used
to scroll through the list as all controllers may not be visible. Select the
following controller:
– Intel® 82801ER SATA RAID Controller (ICH5R)
e. The next screen confirms your selected controller. Press the Enter key to
continue.
9. Finish the O.S. install. The system will eventually reboot. Remove the diskette at
so the system does not attempt to reboot from the diskette.
10. Install additional drivers as needed. Drivers are shipped with each factory OS for
the R2200. You need to install chipset, NIC, and video drivers. Reboot after each
device driver is individually installed. Driver for the factory image are in the
following folders:
• Intel chipset – c:\drivers\infupd\infinst_autol.exe
• NIC – c:\drivers\NIC\pro2kxp.exe
• Video – c:\drivers\quad8260\setup.exe
11. Install the Intel Matrix Storage Manager utility. The utility is available from the Intel
website, or from the factory R2200 image. It is the same application you used to
extract the RAID driver files in step 6 above. Specifically, the file is:
c:\drivers\RAID\iata51_enu.exe
12. Run the program and take the defaults, or select options as needed. Reboot when
the installation is complete.
13. When you initially start the Intel Matrix Storage console (GUI) you may see a
popup warning, shown in Figure 30. This error message does not impact system
functionality. The error message appears because the features provided by the
Intel Matrix Storage Manager are dependent on the chipset used. Different
chipsets provide more advanced features that are not available on the R2200
ICHR5 chipset. The Intel reference on this error is here:
http://support.intel.com/support/chipsets/imsm/sb/CS-020991.htm

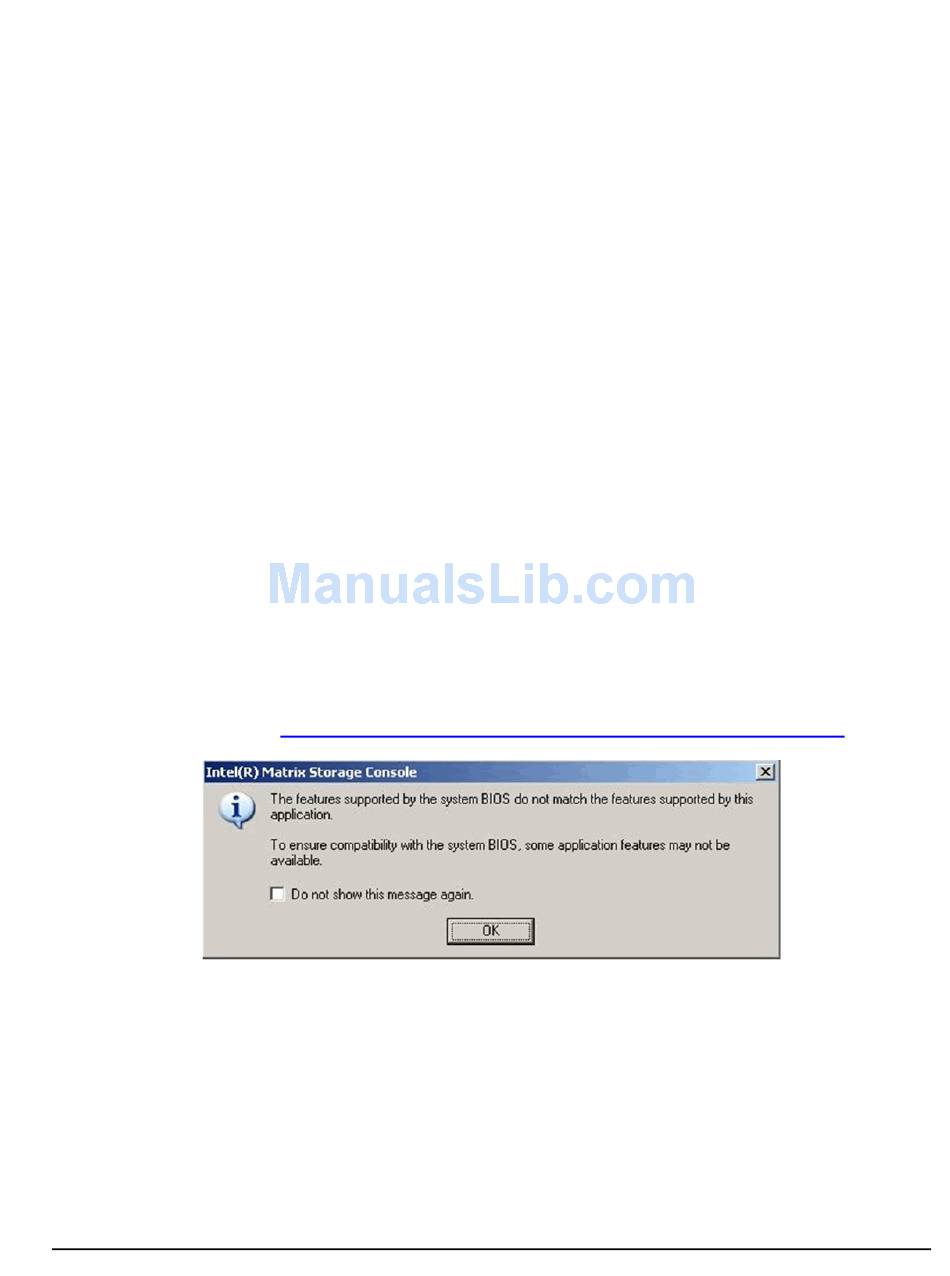

Figure 30 Matrix Storage Console Pop-up
The install is now complete, and the user can use the Intel Matrix Storage console to
view the RAID volume from within Windows. The Intel console will look similar to
Figure 31 once you have installed it.
Chassis and Blade Installation • 71
