Connect Module
designator label
40 • Chassis and Blade Installation
R4300 Modules
The R4300 modules are installed by sliding them into their respective bays and seating
the connector. The three bays are of different sizes and shapes, and a module cannot
be accidentally inserted into the wrong bay. All modules are hot-swappable, and can be
replaced without affecting any existing switching configurations within the chassis. A
small label on each module indicates its position in the R4300, as shown in Figure 18.
Management Bay Module Network Bay Module
Management Module
designator label

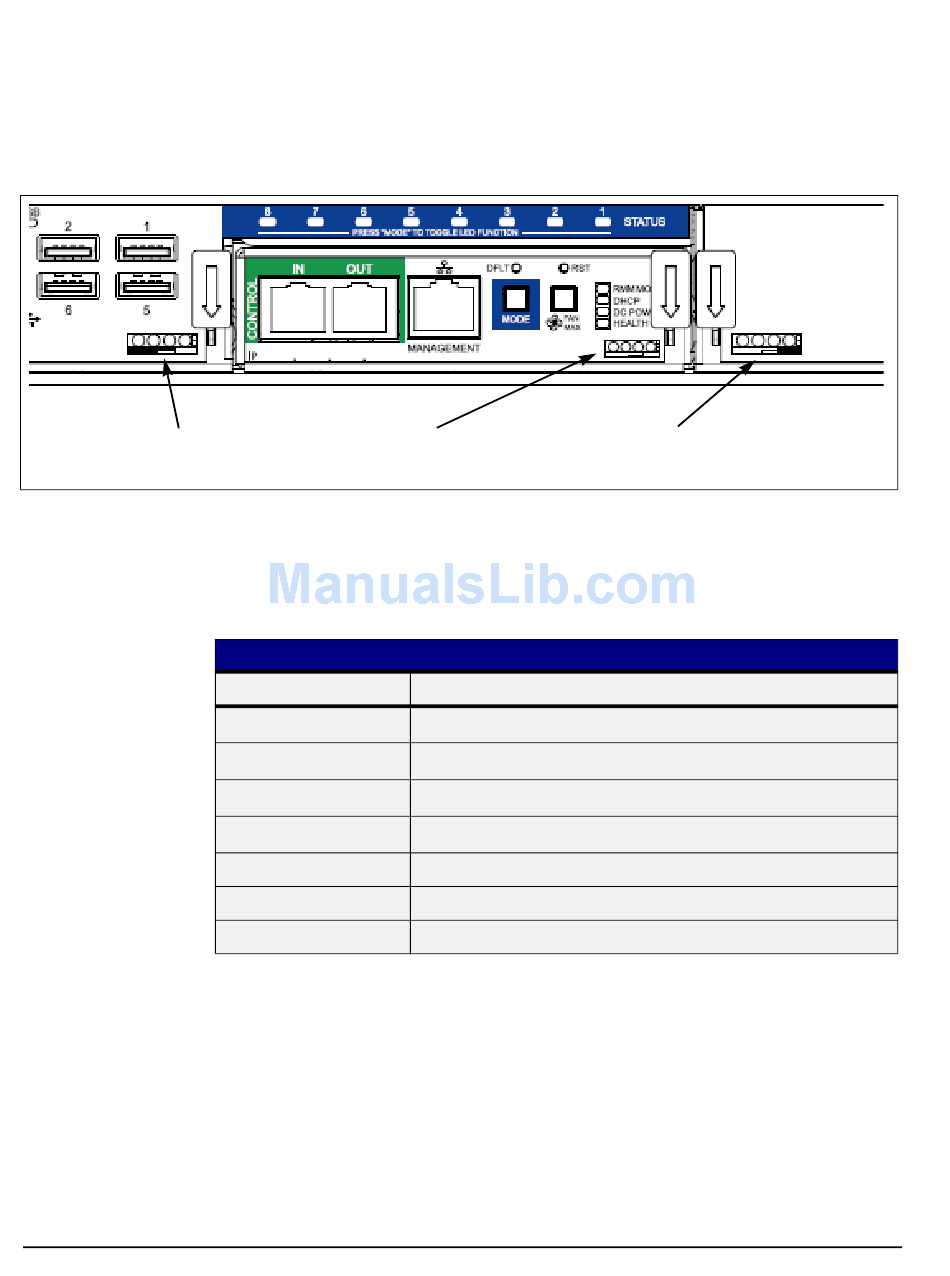

Figure 18 Module Designator Labels
The first three characters of the module's serial number, shown on the back apron and
visible when the module is installed in its bay, are the same as the module's
abbreviation. For example, the serial number XCM12345 identifies a 8 x 8 Connect
Module.
Table 2 Serial Number Formats for R4300 Modules
Serial Number Format
ACMxxxxx
XCMxxxxx
RMMxxxxx
EP6xxxxx
FPMxxxxx
DIMxxxxx
PSUxxxxx
To remove a Connect, Management, or Network module, press down on its green
lever (or levers) until the module is released, and pull the module out of its bay.
NOTE: When hot-swapping modules from an R4300, remove the module and wait for
at least 5 seconds before replacing it.
R4380 – Administrator Connect Module
R4387 – 8 x 8 Connect Module (C/Port Switching)
R4345 – Remote Management Module
R4362 – Ethernet Passthrough 16-Port Module (EP6)
R4320 – Fan Pack Module (contains Variable Fanspeed Controller)
R4315 – Dual AC Input Module
R4316 – Power Supply Unit
R Series Data Center Products User's Guide, Rev. B
Network Module
designator label
Module
