PROGRAMMING

™
Verify that the Vyper is set to Quantum
be accessed with the following keystrokes.
Press: [Confi guration→Compressor→Confi guration]
Set all dates, times, Capacity Regulations, and Package-spe-
cifi c information. Verify that "Screw Compressor with Vyper

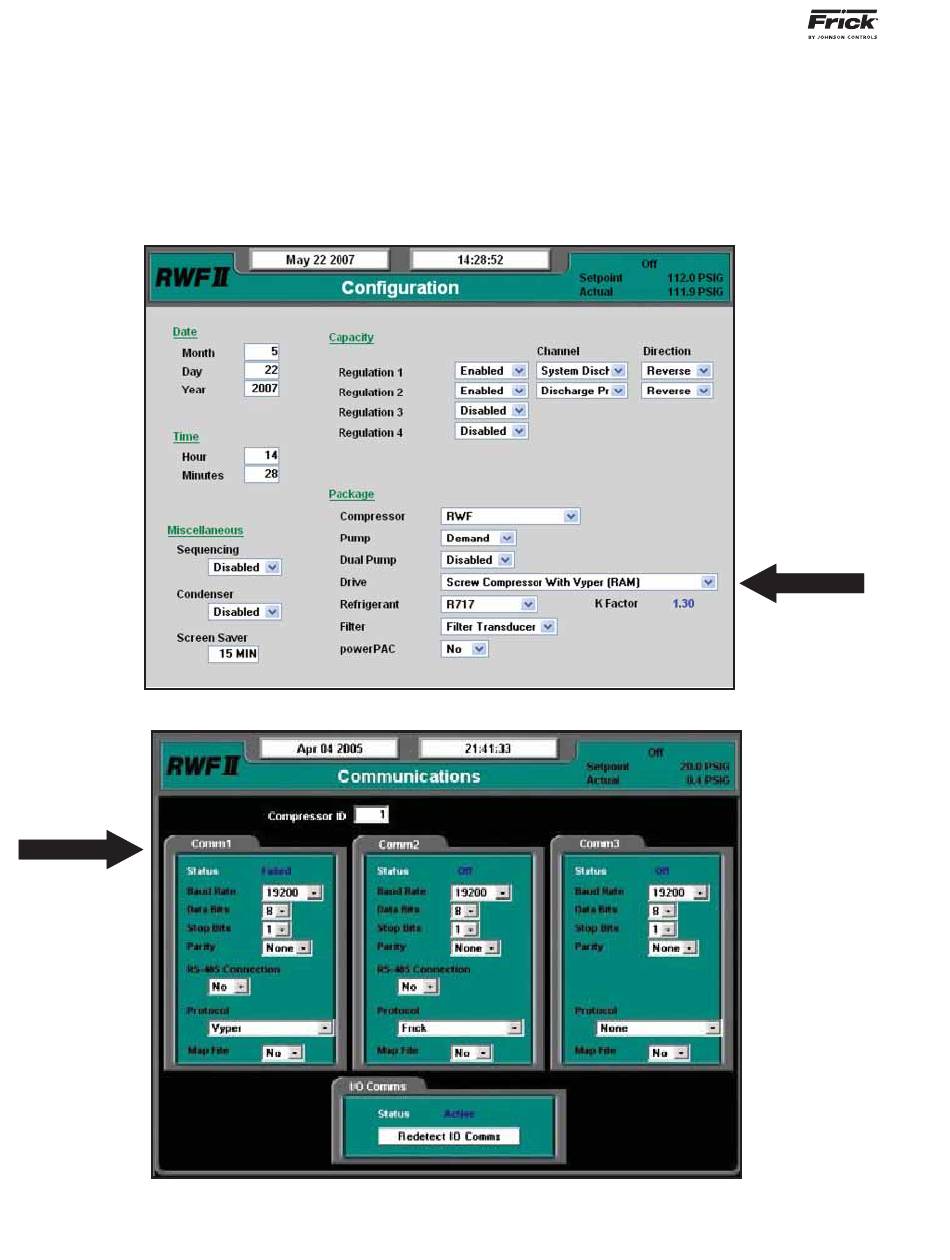

Figure 41 - Confi guration Screen
Figure 42 - Communications Screen
VYPER VARIABLE SPEED DRIVE
™
OPERATION
™
LX control. This can
™
is selected under the package Drive fi eld. This will allow the
™
Vyper specifi c screens to be displayed (See Figure 41).
VYPER ™ / QUANTUM
Set the Communications rate between Vyper
™
Quantum LX. Make sure that the Comm 1 is set as shown
in Figure 42. Press: [Setpoints→Communications].
™ LX COMMUNICATIONS
™ and
