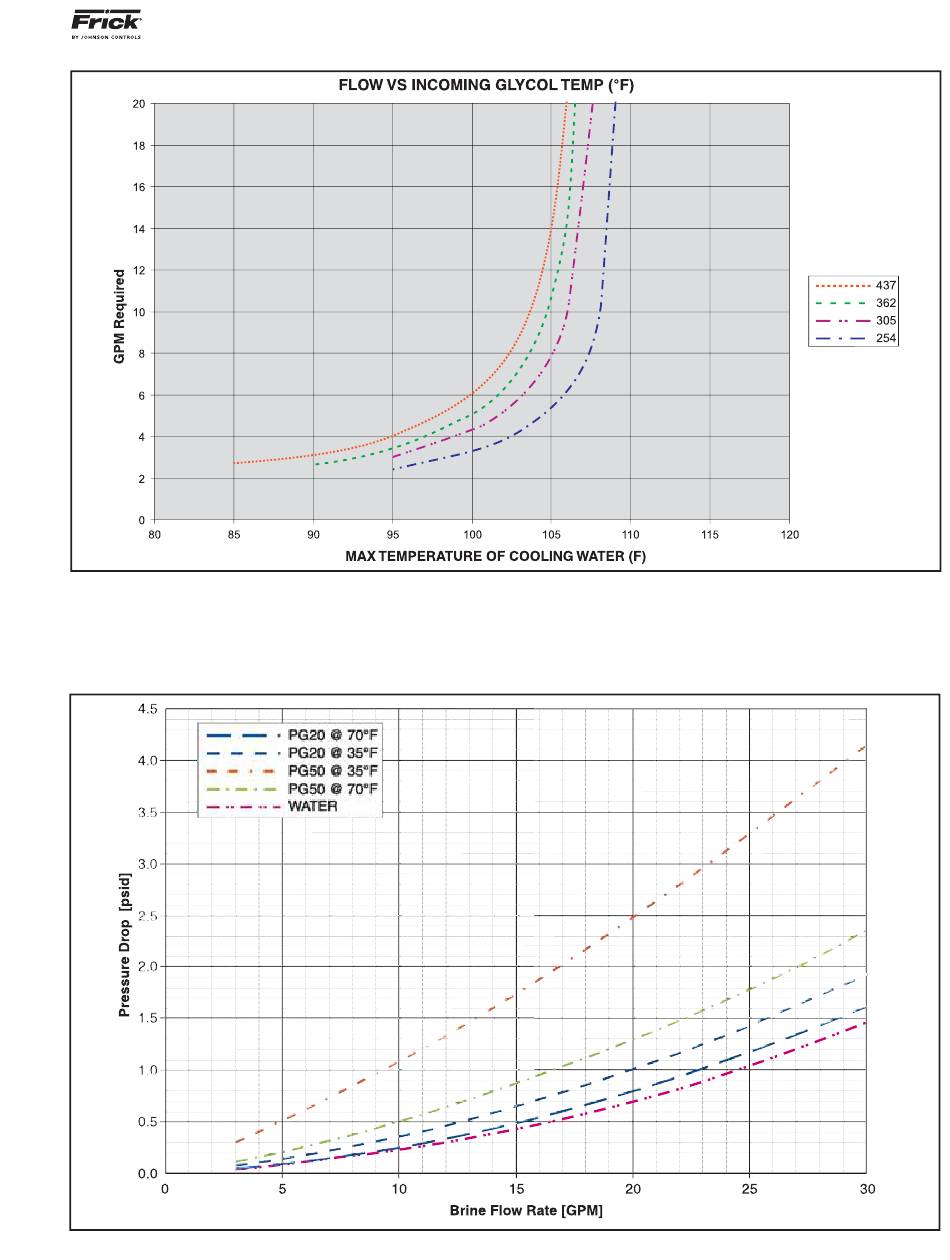

Figure 3 - Minimum Flow Rates - GLYCOL
HEAT EXCHANGER PRESSURE DROP
In order to adequately size piping and booster pump require-
ments, the pressure drop of the coolant across the heat
Figure 4 - Pressure Drop vs. Flow Rate
VYPER
VARIABLE SPEED DRIVE
™
INSTALLATION
exchanger must be known. Figure 4 provides installation
designers with pressure drop reference for different mixtures
of propylene glycol and water.
S100-200 IOM (MAY 08)
Page 7
