The following parameters display status information desig-
nated by:
"0" - no / off "1" - yes / on
• Supply Contactor Energized
• Precharge Contactor Energized
• Phase Rotation Direction (0-ABC, 1-CBA)
• Automanual Switch Status
• Line Frequency Jumper Status
• Run Command Signal Status
• No Faults Signal Status
• Run Acknowledge Relay Status
• Run Command Relay Status
The following parameters display a count or version in whole
numbers.

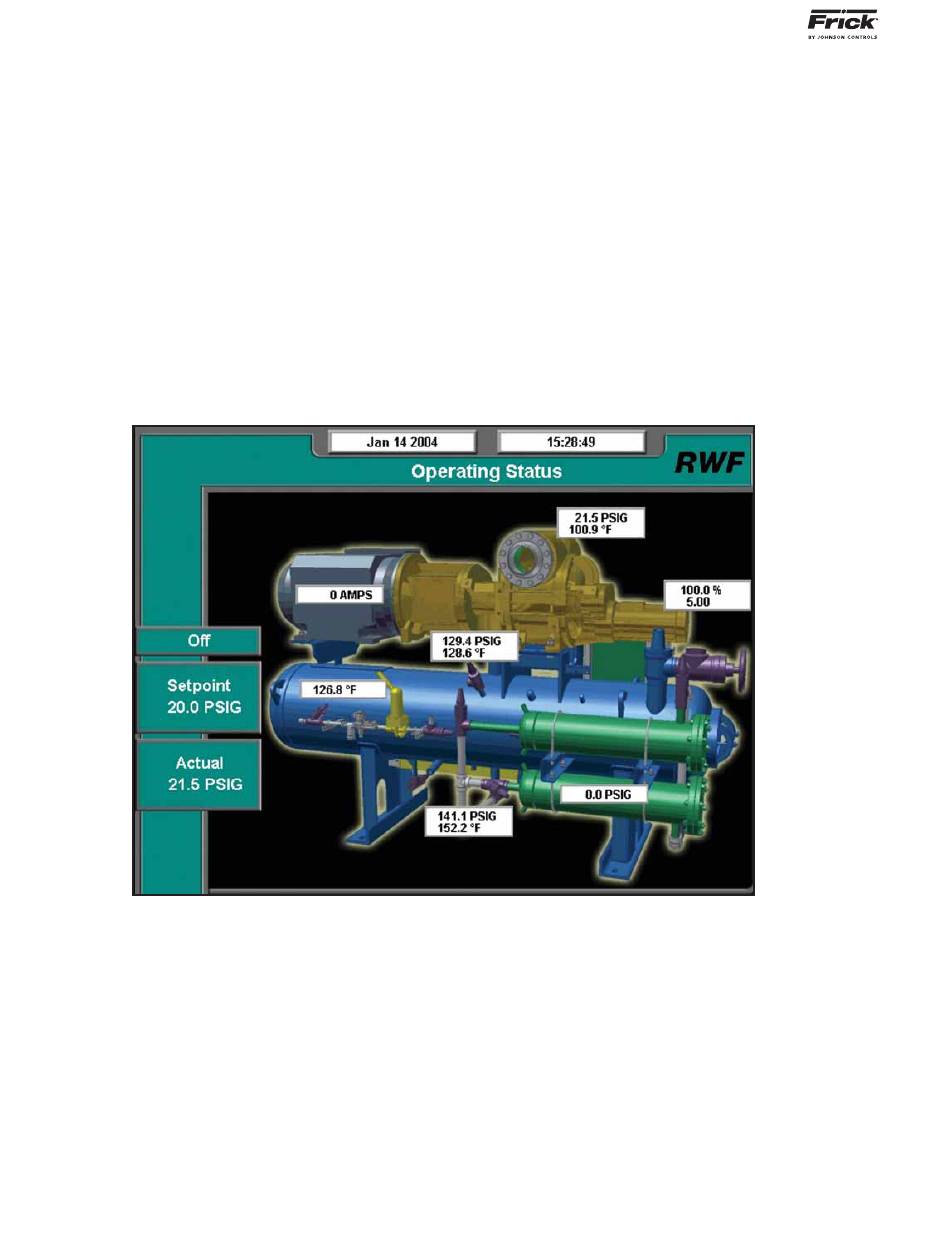

Figure 38 - Quantum ™ LX Start-up Screen
™
QUANTUM LX PANEL SET UP
The Quantum ™ LX software provides the necessary control
to allow operation of a Vyper
Filter, on Frick screw compressors via the SFS-229 Frick
Interface Board. This is accomplished through the reception
of a Speed Command value (in rotations per minute) and a
Run Command signal from the Quantum
This data will then be used to drive the motor.
Additionally, the software will monitor motor current values
and fault fl ags received from the Vyper
whether the drive is operating safely. Any faults detected
by the software will result in an immediate shutdown of the
Compressor. The specifi c fault information will then be dis-
played on the control panel.
VYPER
™
™ Drive, and optional Harmonic
™ LX control panel.
™ Drive to determine
VARIABLE SPEED DRIVE
OPERATION
• Interface Board Version
• VSD Version
• Modbus Node ID
• IB Transmit Errors
• CP to IB Timeout Errors
• VD to IB Timeout Errors
• IB to VD Receive Errors
• VD to IB Checksum Errors
• HF to IB Timeout Errors
• VD to HF Receive Errors
• HF to IB Checksum Errors
• Software reboots
ACCESSING THE VYPER
Specifi c options and setpoints must be confi gured at the
Quantum ™ LX control panel. These settings will provide the
™
Quantum LX with the necessary information to safely control
™
the Vyper Drive, and to shut it down in the event that the
setpoint parameters are exceeded.
The following screens will show the step by step procedure
to properly set up the Quantum
shows the screen that will appear on start-up. Change to
Service level 2.
™
SETUP
™
LX control panel. Figure 38
