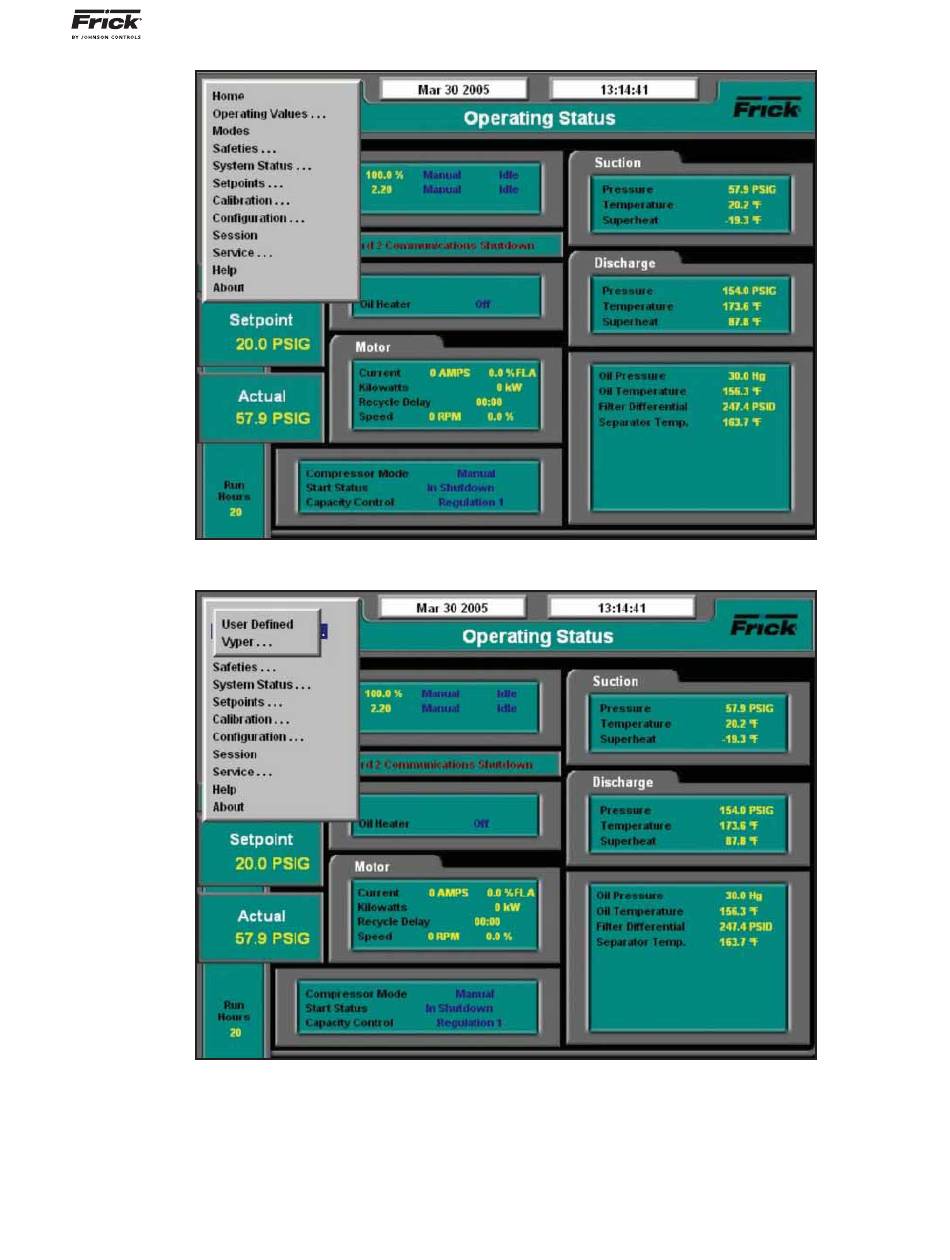

Figure 33 - Home Screen Service Level 2: Press the [Menu] Button then Select Operating Values from the Flydown
Figure 34 - Home Screen Service Level 2: Select Vyper From the Menu
The [Vyper] selection leads to an additional fl yout menu
where the user can select either the [Vyper] or the [ Har-
monic Filter] setup screens (See Figure 35).
The fl ydown menu allows the user to select either the Vyper
Drive setup or, if the Harmonic Filter is installed, the display
information.
VYPER VARIABLE SPEED DRIVE
™
OPERATION
THE VYPER
The Vyper Screen Level 2 (See Figure 36) displays Vyper
system status including operational parameters such as
internal currents, voltages, and temperatures. It also gives
™
detailed information on some external equipment such as
the circulation pump and the motor temperature.
