S100-200 IOM (MAY 08)
VYPER
VARIABLE SPEED DRIVE
™
Page 24
INSTALLATION

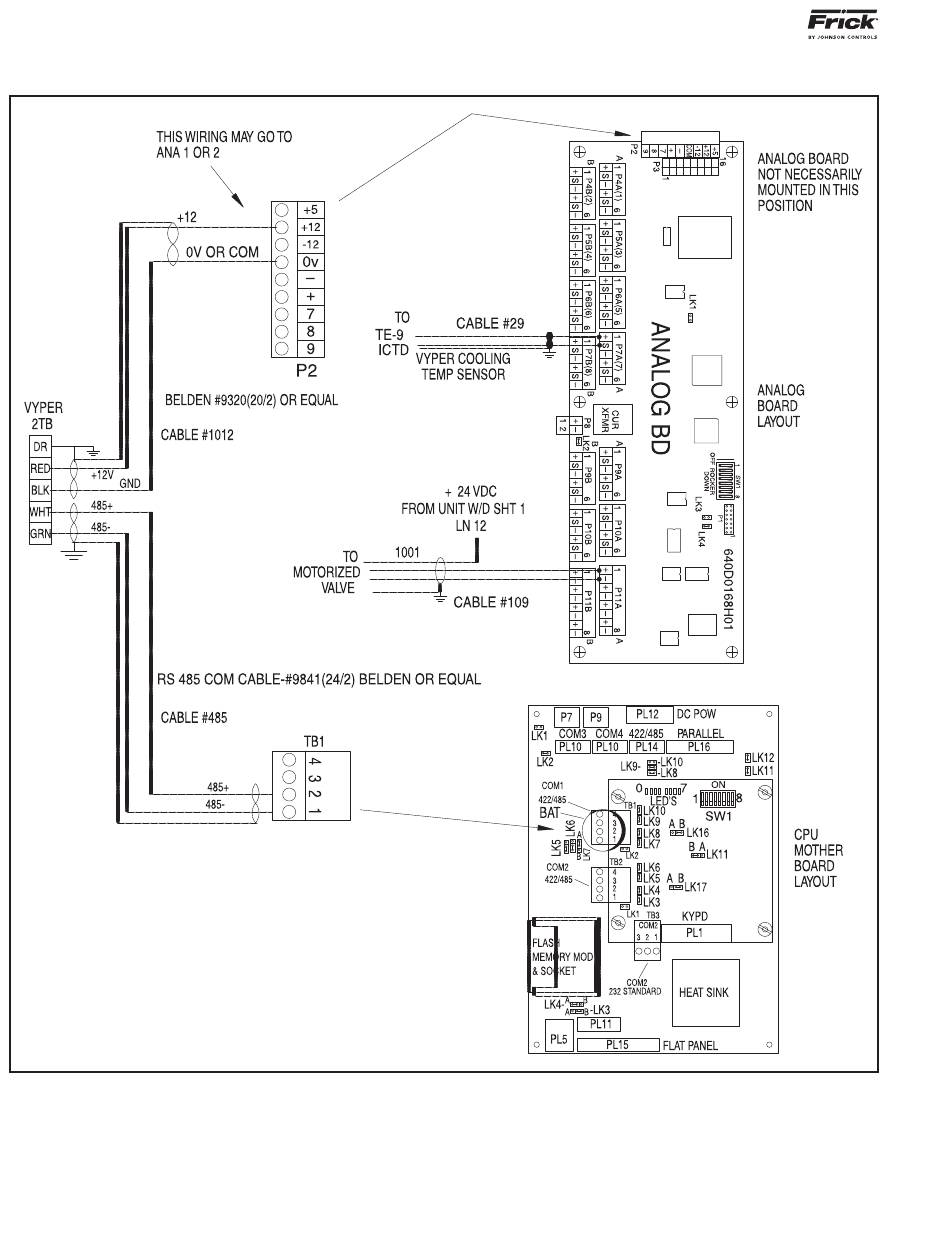

ANALOG BOARD WIRING

Figure 21
