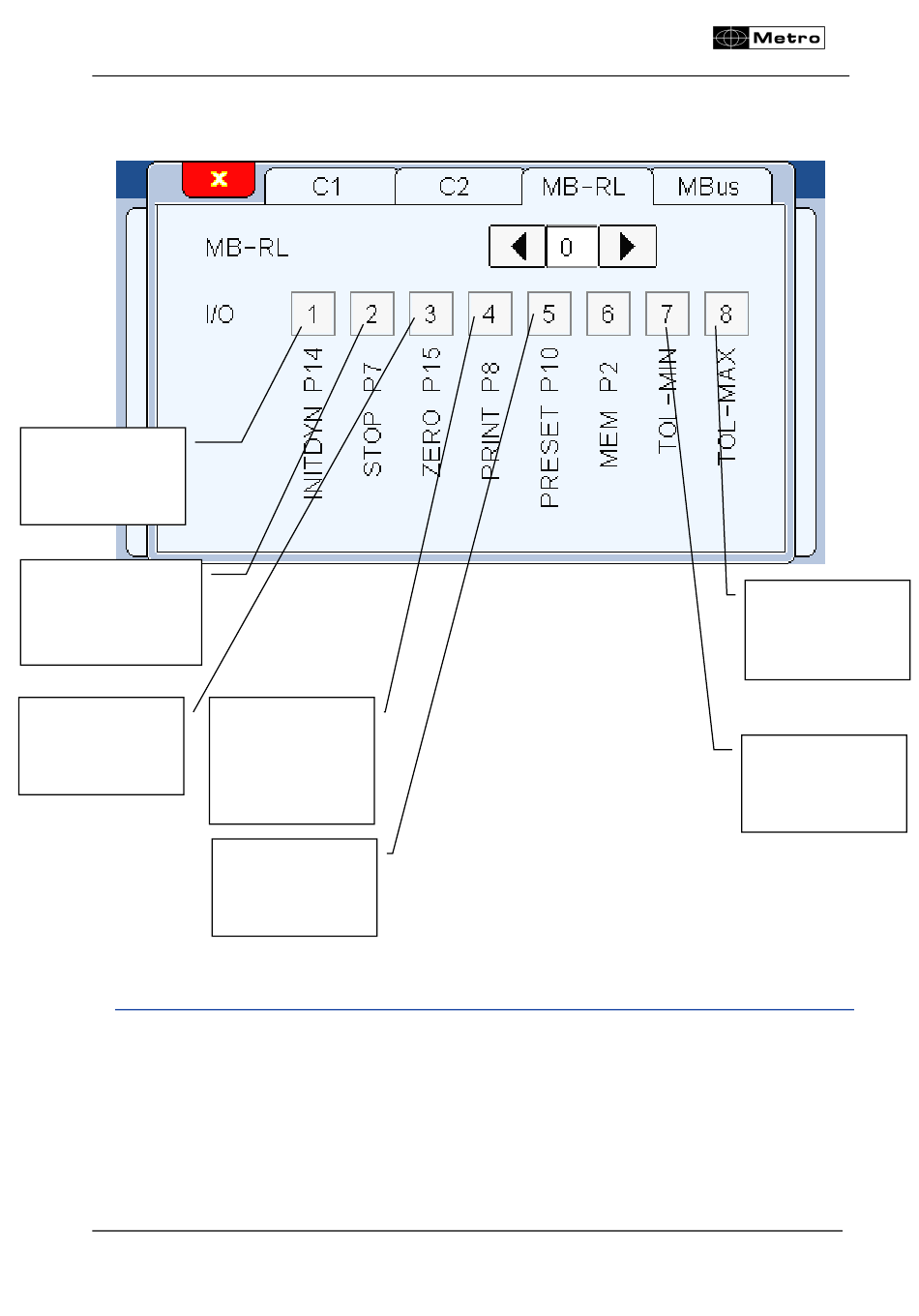

The following screen appears on the M8 when a MB-RL is connected. There is a
function for each of the 8 ports, and these functions can't be changed.
Input: start a
dynamic
measure
Input: freeze the
measurement
screen and the
displayed value
Input: Set the
displayed value
to zero
12.3. MB-TP Module – for temperature compensation
The MB-TP module allows to use an isolated thermocouple type K (hot junction) or
PT100 sensor.
2 functions are then available: alarm or compensation.
A – Identification and configuration of the Temperature module MB-TP
Input: Transfer
the measured
value (need a
USB or RS232
link)
Input: Set the
displayed value
to the master
value
Output: output a
signal if the part
is out of the
tolerance max
Output: output
a signal if the
part is out of the
tolerance min
