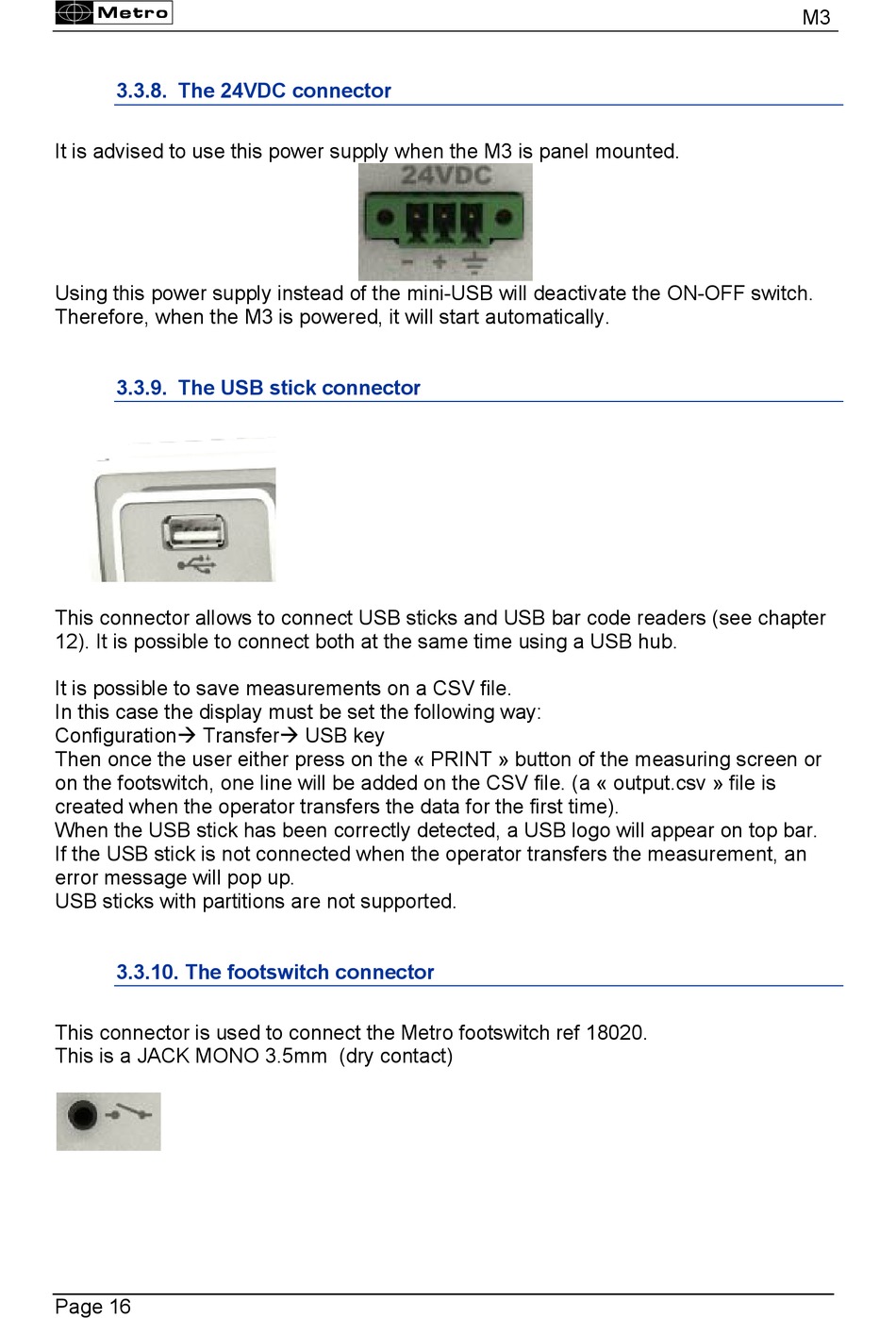

3.3.8. The 24VDC connector

It is advised to use this power supply when the M3 is panel mounted.
Using this power supply instead of the mini-USB will deactivate the ON-OFF switch.
Therefore, when the M3 is powered, it will start automatically.

3.3.9. The USB stick connector

This connector allows to connect USB sticks and USB bar code readers (see chapter
12). It is possible to connect both at the same time using a USB hub.
It is possible to save measurements on a CSV file.
In this case the display must be set the following way:
Configuration Transfer USB key
Then once the user either press on the « PRINT » button of the measuring screen or
on the footswitch, one line will be added on the CSV file. (a « output.csv » file is
created when the operator transfers the data for the first time).
When the USB stick has been correctly detected, a USB logo will appear on top bar.
If the USB stick is not connected when the operator transfers the measurement, an
error message will pop up.
USB sticks with partitions are not supported.

3.3.10. The footswitch connector

This connector is used to connect the Metro footswitch ref 18020.
This is a JACK MONO 3.5mm (dry contact)
