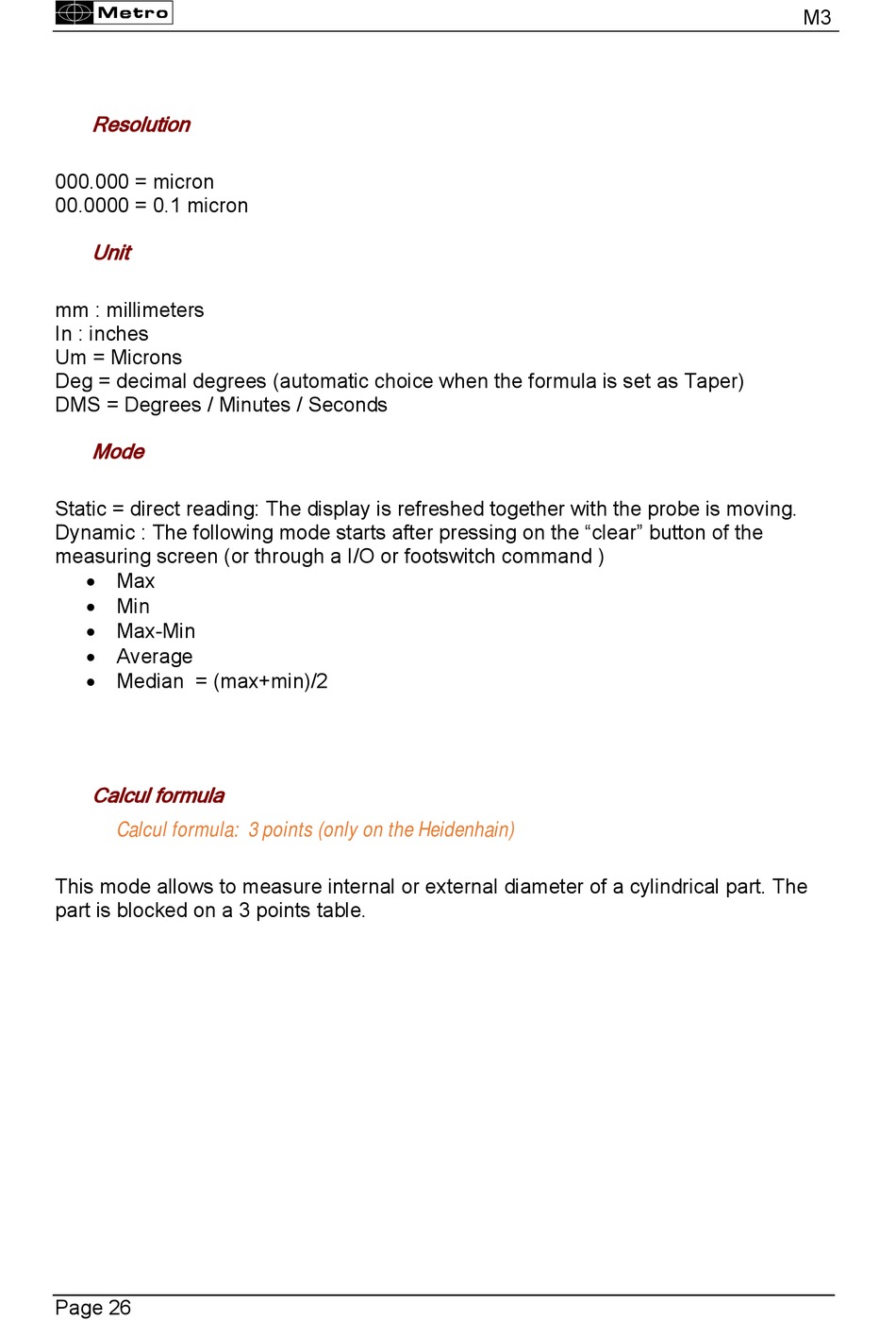

Resolution
000.000 = micron
00.0000 = 0.1 micron
Unit
mm : millimeters
In : inches
Um = Microns
Deg = decimal degrees (automatic choice when the formula is set as Taper)
DMS = Degrees / Minutes / Seconds
Mode
Static = direct reading: The display is refreshed together with the probe is moving.
Dynamic : The following mode starts after pressing on the "clear" button of the
measuring screen (or through a I/O or footswitch command )
Max
Min
Max-Min
Average
Median = (max+min)/2
Calcul formula
Calcul formula: 3 points (only on the Heidenhain)
This mode allows to measure internal or external diameter of a cylindrical part. The
part is blocked on a 3 points table.
Page 26
M3
