12.2. MB-RL Module
Please refer to the chapter 5.3 (Setup) to connect an M-Bus module

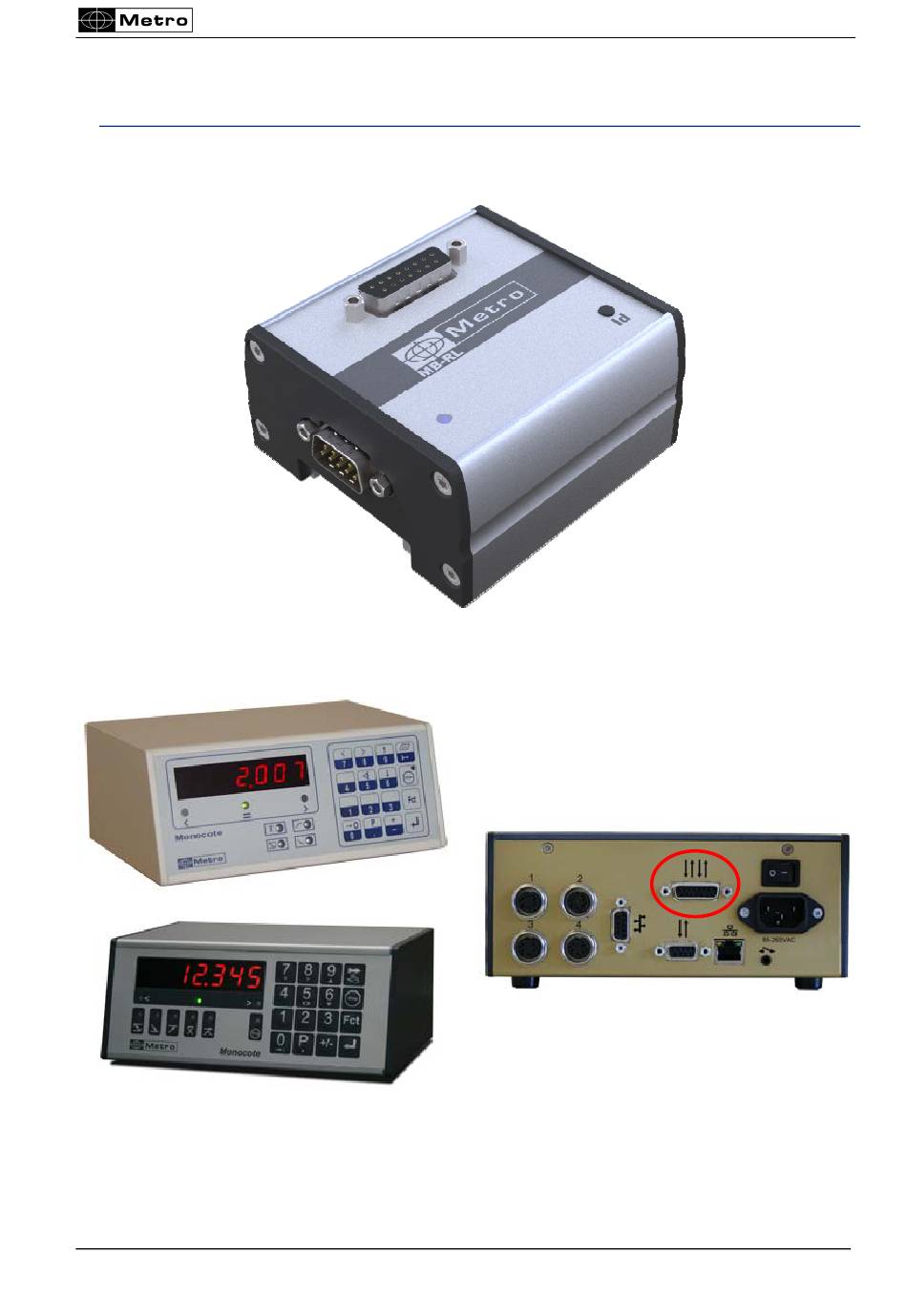

The MB-RL module has been designed for retrofitting old Monocote displays equipped
with the optional relay board.
The external M-bus module has the same pinout (SUBD-15) than the relay board of the
Monocote display, so there is no need to change the wiring of the existing installation.
Page 76
