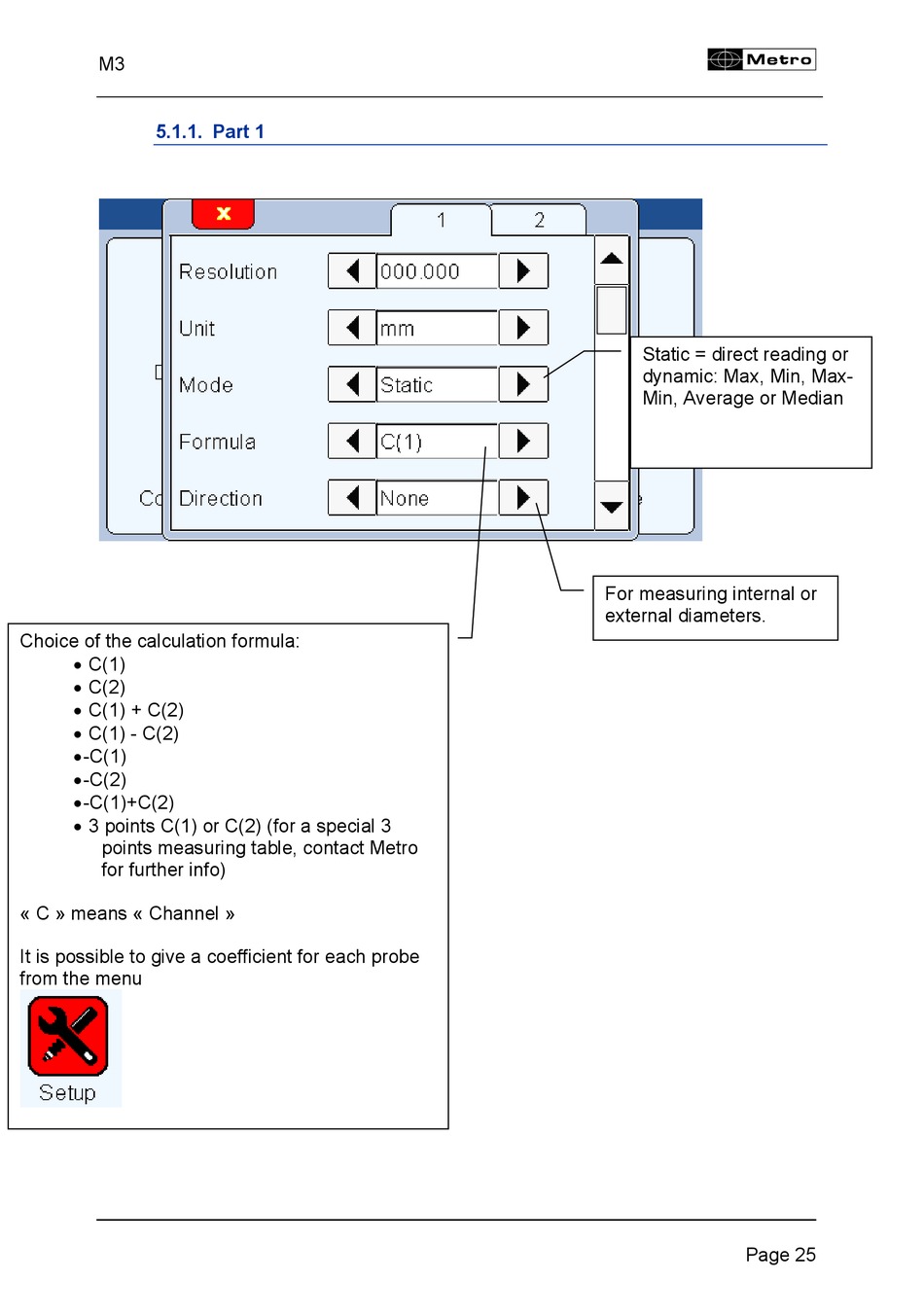

5.1.1. Part 1

Choice of the calculation formula:

 C(1)

 C(2)

 C(1) + C(2)

 C(1) - C(2)

 -C(1)

 -C(2)

 -C(1)+C(2)

 3 points C(1) or C(2) (for a special 3

points measuring table, contact Metro

for further info)

« C » means « Channel »

It is possible to give a coefficient for each probe

from the menu

Static = direct reading or

dynamic: Max, Min, Max-

Min, Average or Median

For measuring internal or

external diameters.

Page 25
