5. CONFIGURATION OF THE DEVICE AND THE MEASURE

This section describes the different windows that are accessible from the icon
desktop.
If you are on the measuring screen, you can reach the icon desktop by clinking on the
button.
Your M3 can be entirely configured (language, communication etc...) from this
window.
The measure (tolerances, characteristics etc...) is also configured from this window.
Characteristic
edition
(tolerances,
master part,
formula)
Configuration of the
device language,
footswitch function
etc..

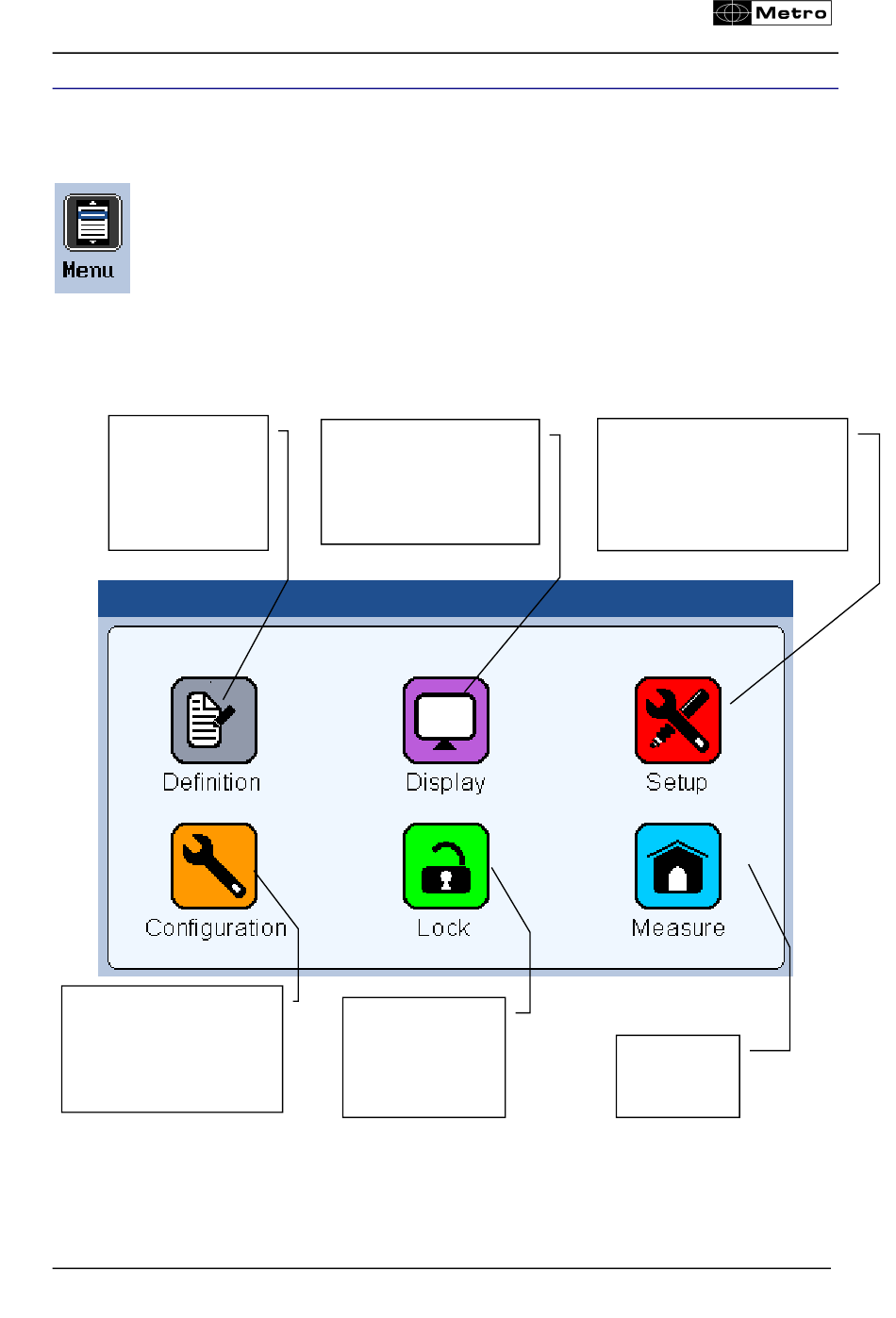

The 6 following sections describe the 6 icons of this screen.
Display mode
selection (1 or 2
bargraph, needle,
without tolerance...)
Allows to lock
selected
functions by
password
Adjustment of the
probes and setting a
probe coefficient.
Configuration of the M-
Bus modules
Go to the
measuring
screen
