M3

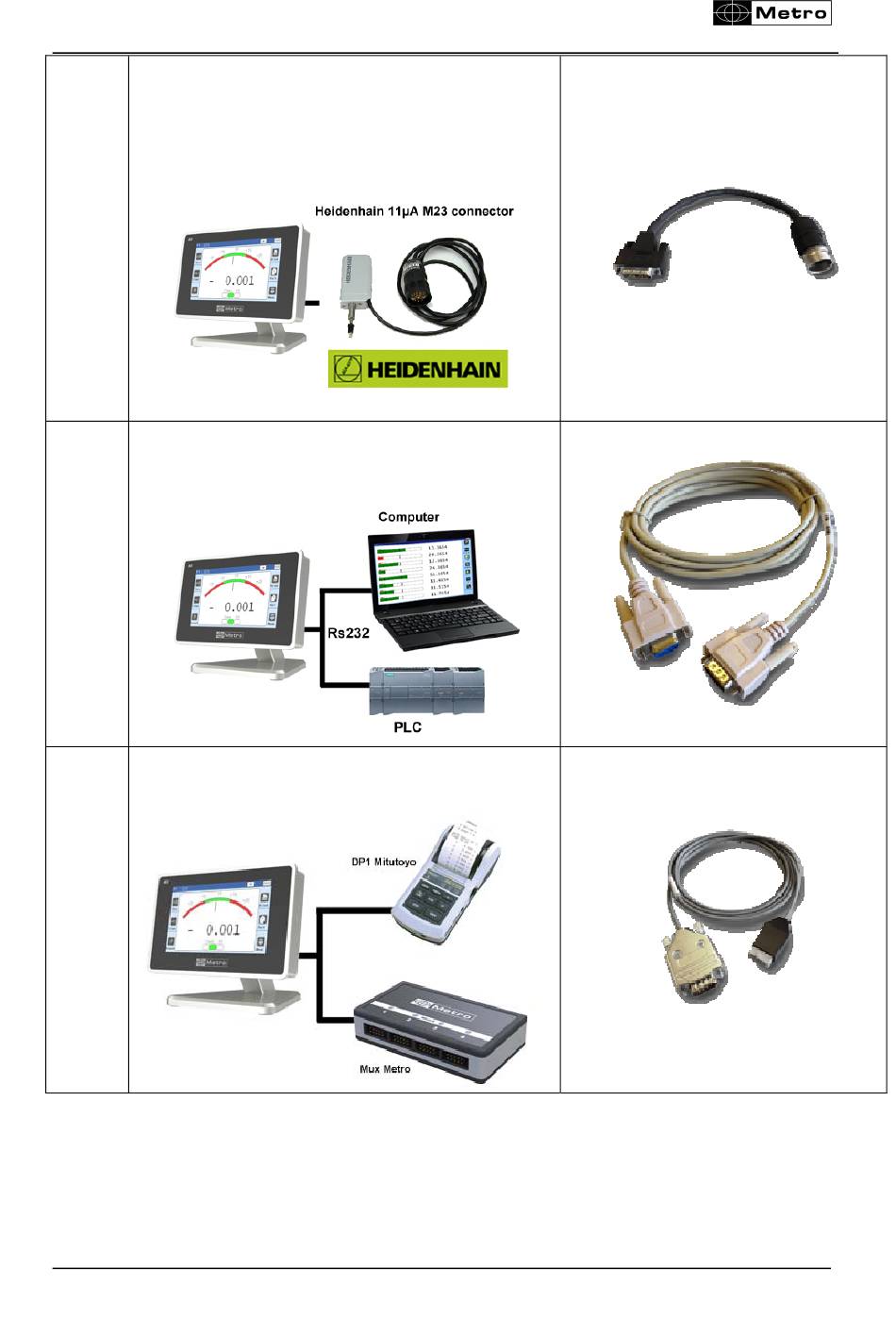

Heidenhain M23/11µA to D-SUB 15 adapter for M3
84100
11µA/1Vpp :
This cable allows to connect 1 Heidenhain probe like
MT12 or MT25 with the round M23 connector on a M3
(ref 13020) display.
45160
RS232 cable
This cable allows to connect a M3 display to a
computer.
18193
This cable allows to connect a M3 display to a
Multiplexer Mux from Metro, and to the DP1 printer
from Mitutoyo
Page 11
