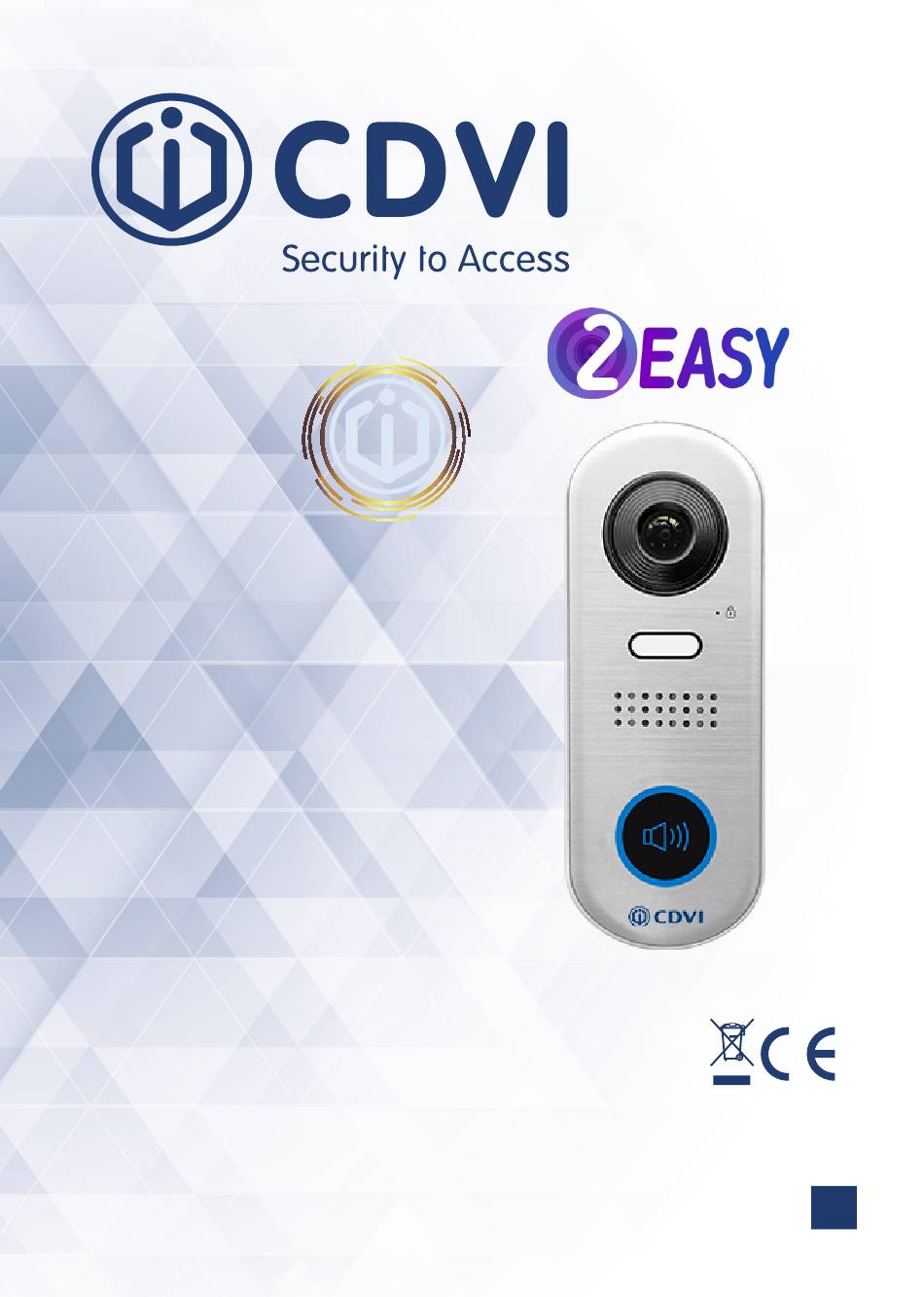

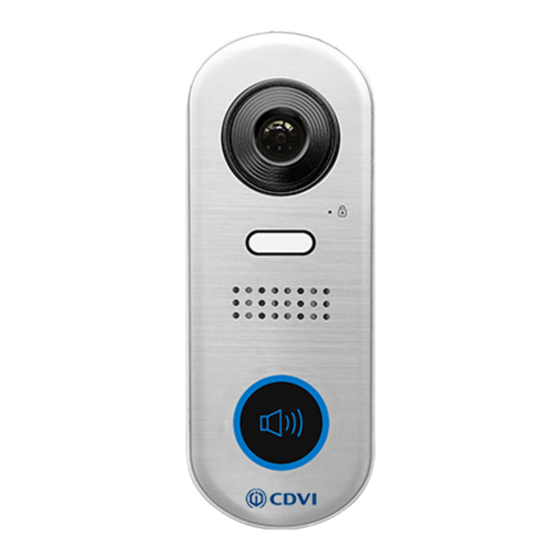

- Page 1 YEAR WARRANTY CDV-91S 2EASY 2-wire 1-button Video Door Station...
-
Page 2: Table Of Contents
CDV-91S 2EASY 2-wire 1-button Video Door Station 1] CONTENTS Title Page 2] Parts and Functions 3] Terminal Description 4] Installation 5] System Wiring and Connections 6] Panview & Zoom 7] LED Status 8] Settings 9] Cable Requirements 10] Product Specifcations 11] Precautions... -
Page 3: Parts And Functions
CDV-91S 2EASY 2-wire 1-button Video Door Station 2] PARTS AND FUNCTIONS 3] TERMINAL DESCRIPTIONS DIP: • Bit 1&2: sets the door station address, a total of 4 door stations can be supported. Please refer to door station address setting. • Bit 3&4: sets the unlock time for door station. -
Page 4: Installation
CDV-91S 2EASY 2-wire 1-button Video Door Station 4] INSTALLATION 1. the recommended installation height for the door station is 145-160cm 2. Use screws to fix the back panel to the wall and connect the cables correctly. 3. Attach the front panel to the back panel, then use the screw to secure the panel. 5] SYSTEM WIRING AND CONNECTIONS Single door station system wiring... - Page 5 CDV-91S 2EASY 2-wire 1-button Video Door Station Electric lock connections Door lock controlled with internal power Notes: 1. This mode only supports Fail Secure (power on to unlock) Strikes 2. The door lock is limited to 12V, and holding current must be less than 250mA. 3.
- Page 6 Multidoor monitors system wiring (4 max*) Standard IN-OUT wiring • The door station is compatible with the 2EASY CDV-47 & CDV- 47DX monitors from CDVI. • For the last monitor connected to the system, DIP6 should be set to ON.
-
Page 7: Panview & Zoom
CDVI distributor CDV-DBC4A for the extension. *IMPORTANT: Subject to cable type. Please see cable distance chart on pages 10-11. For further help, call CDVI Technical Support on +44 (0) 1628 531300 or visit CDVI Support Centre. 6] PANVIEW & ZOOM Note: This function requires a monitor with fish-eye function to operate. -
Page 8: Led Status
CDV-91S 2EASY 2-wire 1-button Video Door Station When a door station image is displayed, move to the desired position by touching on the screen to view the image in zoom mode. Note: The edge of pantilt image will not be displayed. -
Page 9: Settings
CDV-91S 2EASY 2-wire 1-button Video Door Station 8] SETTINGS 2 bits on the DIP switches can be configured. The switches can be modified either before or after installation. Door station address settings Unlock time settings Bit State Description Bit State Description Default setting, ID = 0(00), set to the first Default setting, unlock time is Xs... -
Page 10: Cable Requirements
CDV-91S 2EASY 2-wire 1-button Video Door Station Initialisation Set bit 6 to ON or connect power and within 10 secs, press and hold KEY_CALL to enter the settings mode. Press and hold KEY_CALL After initialisation. to activate initialisation Exit settings automatically LED_UNLOCK: ON LED_UNLOCK: ON LED_KEY: ON... - Page 11 CDV-91S 2EASY 2-wire 1-button Video Door Station Star topology wiring with CDV-DBC4A1 Recommended cable: 16AWG, Belden 8471 Cable and distance (unit: m) Cable Usage Belden 9470 UTP 2x0.75mm Belden 8471 UTP 2x1mm...
-
Page 12: Product Specifcations
CDV-91S 2EASY 2-wire 1-button Video Door Station 10] PRODUCT SPECIFICATIONS Feature Description Power Supply 24 Vdc Power Consumption Standby: 14mA, Working: 122mA Camera Color CMOS, 2.0 Mega pixel 1/2.7’’ fisheye camera, 1700 wide angle Lock Power Supply 12 Vdc, 250mA (internal Power) Operating Temperature -15°C - +55°C Dimensions... - Page 13 CDV-91S 2EASY 2-wire 1-button Video Door Station Notes ..................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................
- Page 14 +39 (0) 321 90 573 www.cdvi.it CDVI MAROC +212 (0) 5 22 48 09 40 www.cdvi.ma CDVI SWEDEN [SWEDEN - DENMARK - NORWAY - FINLAND] +46 (0) 31 760 19 30 www.cdvi.se CDVI UK [UNITED KINGDOM - IRELAND] +44 (0) 1628 531300 www.cdvi.co.uk...
