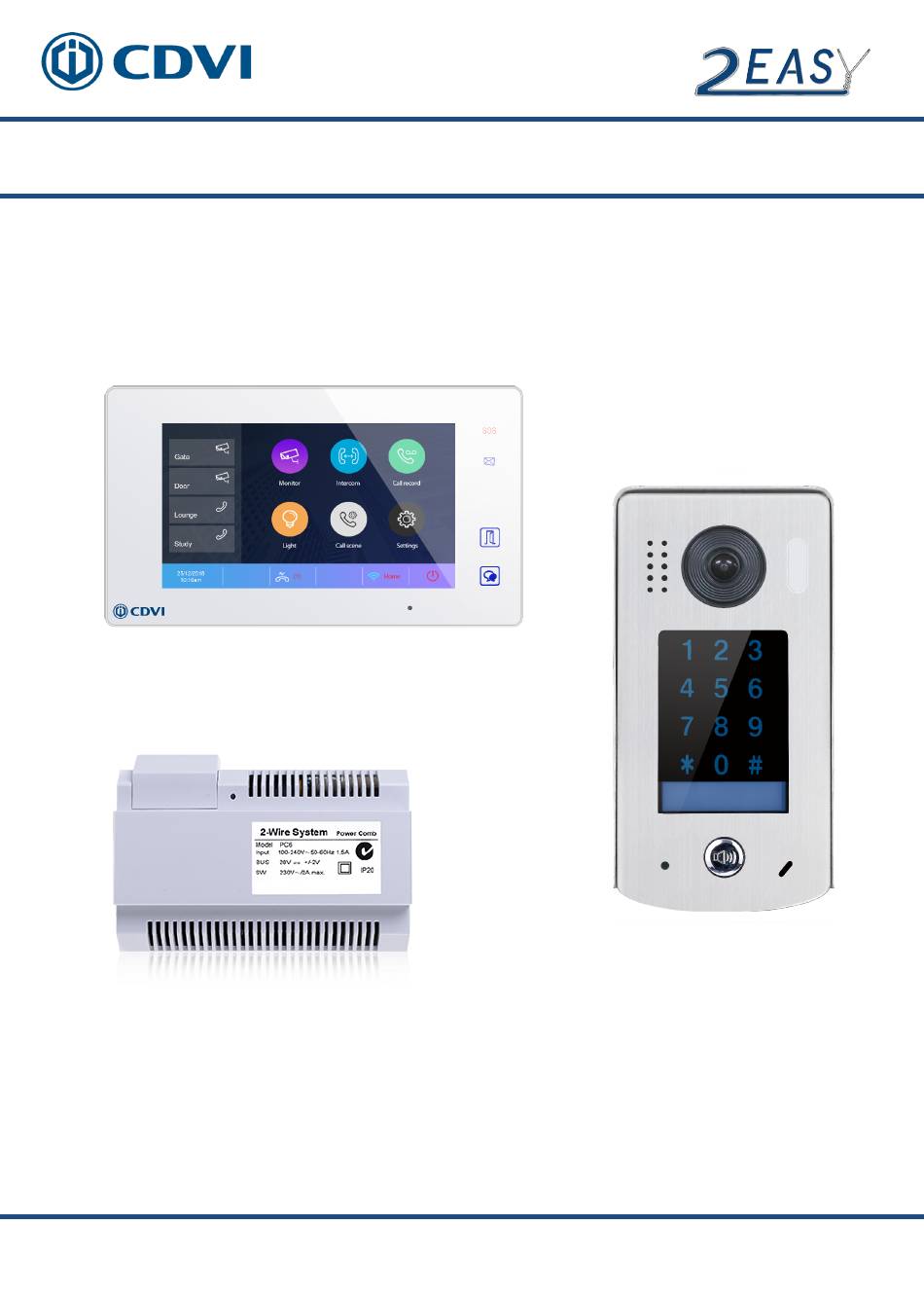

- Page 1 The installer’s choice CDV4796KP-DX KIT MANUAL 01628 531300 www.cdvi.co.uk...
- Page 2 The installer’s choice IMPORTANT: Limitations of this manual: This is provided to allow basic installation and set up of this kit, for advanced features please see device manuals included in each product box. Note: For WiFi Set up please see the CDV47DX manual Pg. 21 1.
-
Page 3: Terminal Descriptions
The installer’s choice 2 : CDV96KP Parts and Functions 30 mm Rain Cover CDV96 KP [7] Microphone [1] Camera lens [4] Touch keypad [8] Power LED [2] Camera LED [5] Keypad LED [3] Speaker [6] Call button 2. 1: Terminal Descriptions •... - Page 4 The installer’s choice 3: Mounting Drill holes in the wall to match the size of Connect the wiring (see pg 4) screws and attach the rain cover to the wall. Us ing a screwdriver secure the panel Attach the panel to the rain cover 3 : CDV -PC6A Parts and Functions 3.1: Description The PC6A is a power/bus combiner unit, which is designed for the CDV 2Easy 2 wire...
- Page 5 The installer’s choice 3. 2: Terminal Descriptions 1 2 3 100~240 Vac BUS(IM) BUS(DS) PG : Earth ground terminal . AC input terminal . AC input terminal . LED: P ower indicator, on when power connected . B us control terminal. BUS(IM): I ndoor monitor connection terminal.
-
Page 6: Terminal Description
The installer’s choice 4: CDV47 Parts and Functions 4.1: Terminal description L1,L2: Bus line terminal. SW+,SW-: Doorbell input conne ction port. Ring,GND: Extension buzzer input connection port. 1 2 3 4 5 6 USB-Wi-Fi adaptor NC: Reserved. DIP switchesBit1~Bit5: Reserved. Bit6: Video impedance matching switch. -
Page 7: Function Status
The installer’s choice 4.3: Main Menu The Main menu is your starting point for using all the applications on your monitor. Touch Unlock button, or touch anywhere of the screen on monitor in standby mode, the Main menu will appear as follow: Monitor Intercom Touch to view outdoor scene. -
Page 8: Installer Settings
The installer’s choice Icon Meaning Description Wi-Fi connection active and not connected Wi-Fi connection disabled Touch to enter Wi-Fi setting interface in shortcut. Wi-Fi connection active and configured 4.4: Installer Settings This section contains the device address setting and system settings. 1. -
Page 9: Unlock Time Setting
The installer’s choice 4.6: Unlock Time Setting Setting the unlock time. Installer Installer Call Tune Current addtess [01] Call Tune Unlock time [03] General IPC Setting General Unlock mode [Open] Installer Monitor list manage Installer Auto reboot [Enable] Wireless System settings Wireless Reboot About... -
Page 10: System Wiring And Connections
The installer’s choice 5: System Wiring and Connections 5.1: Basic Connection Code=00, DIP6=on PC6A BUS(IM) BUS(DS) L1 L2 PL S1+ GND DIP Switches 1 2 3 4 5 6 Doorbell Button Switch 5.2: Multi Door Stations Connection 4# Camera 3# Camera 2# Camera 1# Camera (Device Address:3) - Page 11 The installer’s choice 5.3: Basic IN-OUT Wiring in Standard Mode • The door station is compatible with other Code=1, DIP6=on monitors within the 2Easy range. (Slave 3) • For the last monitor connected to the system, DIP6 should be set to ON. Code=1, DIP6=off (Slave 2) Code=1, DIP6=off...
- Page 12 The installer’s choice 5.4: Star Topology Wiring With CDV-DBC4A1 in Standard Mode Code=0 Master，DIP6=on Code=0 Slave 1，DIP6=on Impedance OFF ON switch Code=0 Slave 2 DIP6=on Code=0 Slave 3，DIP6=on 100~240VAC CDV-BDU CDV-PC6 CDV-RLC CDV-DBC4A1 BUS(IM) BUS(DS) Optional functional modules: CDV-BDU bus amplifier module CDV-RLC staircase light controller module CDV-DBC4 2/4 inputs branch distributor ID=0...
-
Page 13: Door Lock Controlled With Internal Power
The installer’s choice 5.5: Electric Lock Connection Door Lock Controlled with Internal Power Note: 1. This mode only supports strike type locks. Jumper position 2. Strike type lock s of Power- on -to-unlock (fail secure) type should be used. L2 LK+ LK- 3. - Page 14 The installer’s choice 5.6: Setting User Codes (PIN) Setting a User Code for Lock 1(User Group1) and Lock 2(User Group 2) on the CDV Enter programming mode by entering 1234#, 2 beeps will be heard. (Master code 1234 can be changed if required - for more setting please refer to the CDV96KP manual) Setting the code Setting the code for user group1...
-
Page 15: Specifications
The installer’s choice 6: Specifications: 6.1: CDV91S Specifications LOCK ● Power Supply : DC 24V ● Power Consumption: Standby 14mA; Working status 122mA ● Camera: Color CMOS, 2.0 Mega pixel 1/2.7’’ fisheye camera,170 wide angle ● Lock Power supply: 12Vdc, 250mA(Internal power) ●... -
Page 16: Basic In-Out Wiring Mode
The installer’s choice 7: System Wiring and Connections The maximum distance of the wiring is limited in the 2Easy system. Using different cables may also affect the maximum distance which the system can reach. Basic IN-OUT Wiring Mode Cable and distance (unit:m) Cable Usage ≤2 IM ≤16 IM... - Page 17 The installer’s choice Star Topology Wiring Mode With CDV-DBC4 CDV-DBC4A1 CDV-PC6 Cable and distance (unit:m) Cable Usage Belden 9740 UTP 2x0.75mm Belden 8471 UTP 2x1mm...
