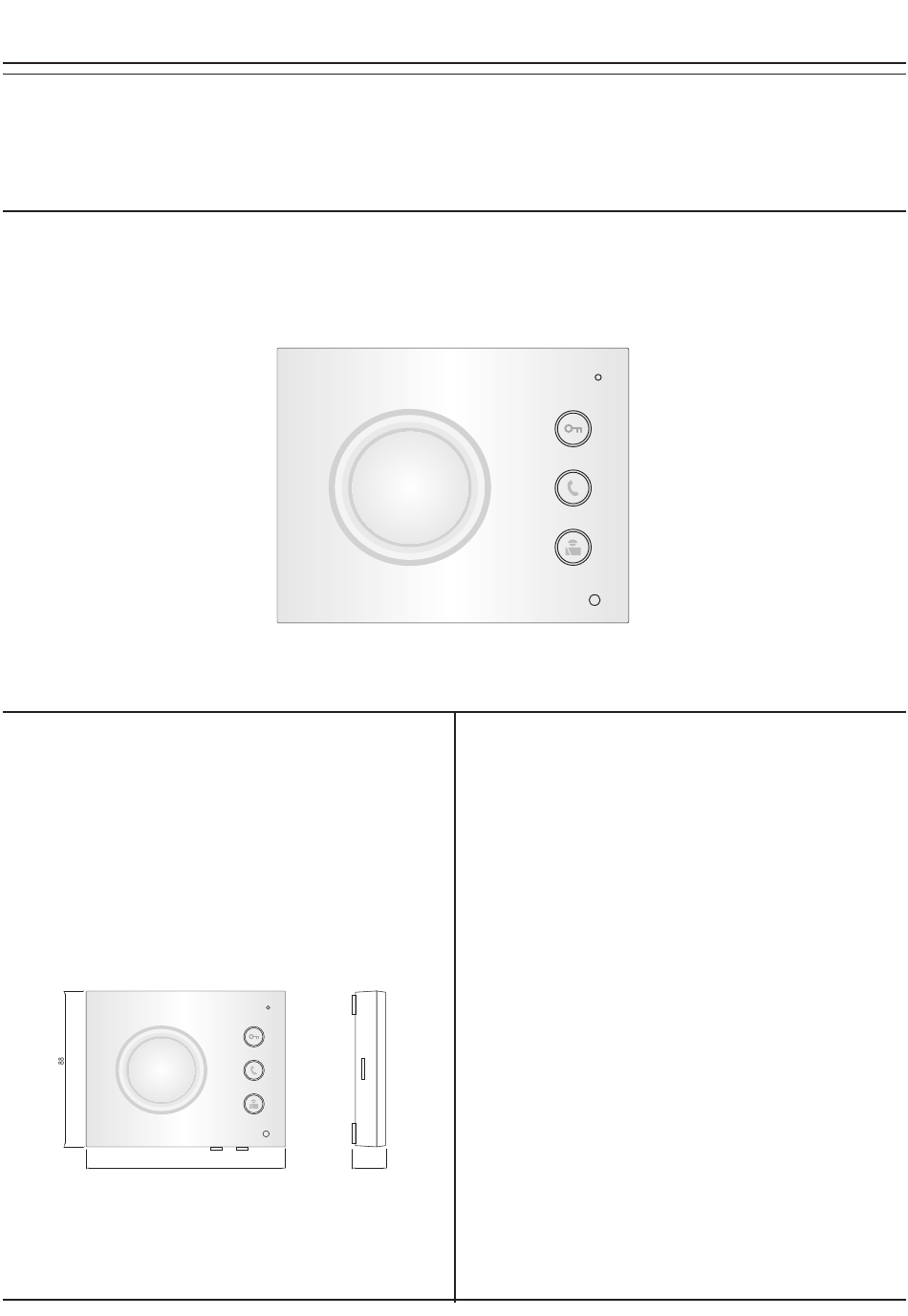

DESCRIPTION
2-wire system indoor handsfree audio handset
DIMENSION
110
►
►
►
►
►
►
20
Side View
2-Wire Indoor Monitor
FEATURES
DIP switch address setting.
Max.128 DIP addresses.
Internal call Intercom - on same address
Two lock outputs.
Choice of 4 ringtones
Suitable for Villa or Apartment systems.
CDV-17HFA
Advertisement
Table of Contents
Related Manuals for CDVI CDV-17HFA
Summary of Contents for CDVI CDV-17HFA
- Page 1 Product Information CDV-17HFA 2-Wire Indoor Monitor DESCRIPTION FEATURES DIP switch address setting. 2-wire system indoor handsfree audio handset ► ► Max.128 DIP addresses. ► Internal call Intercom - on same address ► Two lock outputs. DIMENSION ► Choice of 4 ringtones ►...
- Page 2 1. Parts and Functions Microphone Speaker Unlock button Talk button 2nd Unlock/Intercom button Indicator Talk volume Tone volume controller controller Side View Key Functions Speaker Audio output. Microphone Audio input Unlock button Press to release the door lock. Talk button Press to communicate hands free with visitor During calling/talking state, press to release the 2nd Unlock...
- Page 3 2 . Setup Instructions 2.1 User Code Setting(DIP1 to set it) In the DT system, every apartment must have a unique identifcation called User Code. The DIP1 switches are used to confgure the User Code for each Monitor. • Bit-1~5 of DIP1 are used to User Code setting. The value is from 1 to 32, which have 32 different codes for 32 apartments.
- Page 4 2.2 Slave Address Or Extended Address Setting (DIP2) When multiple Monitors are installed in one apartment, these Monitors have to use the same User Code setting therefore the Master/Slave mode should be set on the Monitor. • Bit-1~2 of DIP2 are used to set the slave address or extended address. •...
- Page 5 3. Mounting 1). Fix 2 screws to the wall at a appropriate height; 2). Connect the system correctly; 3). Attach the audio phone to the bracket. 4 . Specification ● Power Supply : DC 24V; ● Power Consumption: Standby 16mA; Working status 56mA; ●...
- Page 6 5. Packing Information Dimensions: 128(H)×92(W)×30(D)mm Carton: 415 (H)×360 (W)×265 (D)mm Gross Weight: 0.3Kg Quantity: 88PCS...
