Summary of Contents for CDVI 2EASY CDV-T5

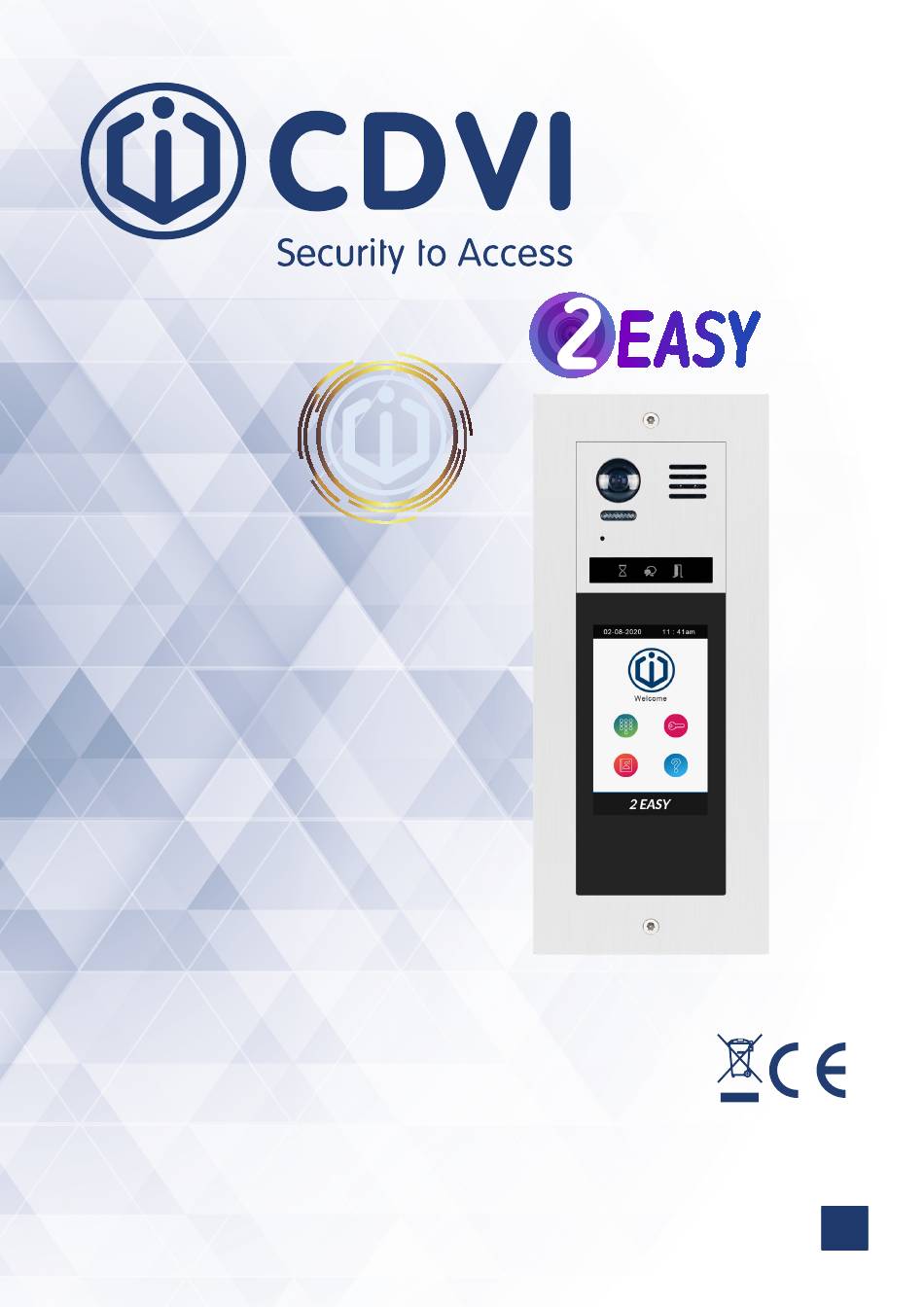

- Page 1 YEAR WARRANTY CDV-T5 2EASY 2-wire Touchscreen Video Door Station...
-
Page 2: Table Of Contents
CDV-T5 2EASY 2-wire Touchscreen Video Door Station 1] CONTENTS Title Page 2] Parts and Functions 3] Installation 4] Electric Lock Connections 5] System Wiring and Connections 6] Door Station Operations 7] Firmware Update Notice 8] Installer Mode 9] Main Menu 10] Specifications... -
Page 3: Parts And Functions
CDV-T5 2EASY 2-wire Touchscreen Video Door Station 2] PARTS AND FUNCTIONS Speaker Camera Lens Night View LED Microphone 1 2 3 4 5 6 Status Indicator 1 2 3 4 5 6 Card Reader Screw Hole Surface mount box Embedded box Front panel Terminal Descriptions Surface mount box... - Page 4 CDV-T5 2EASY 2-wire Touchscreen Video Door Station Door Station Module Speaker Camera lens Night view LED Invisible key B Invisible key A Status indicator Talk indicator Unlock indicator Note: Key A and key B are invisible on the panel as they are cryptic. DIP Switch Settings A total of 6 bits can be configured by DIP switch.
-
Page 5: Installation
CDV-T5 2EASY 2-wire Touchscreen Video Door Station CN/KMB No. Name Description DIP switch for system configurations JP-LK For electric lock safety type setting CN/KMB Touchscreen module connection port CN/T-COIL Reserved No polarity bus line. Connect to power combiner unit CN-LK Electric lock and exit button connection port CN/FUN TFT display module connection port... -
Page 6: Electric Lock Connections
CDV-T5 2EASY 2-wire Touchscreen Video Door Station Surface Mount 4] ELECTRIC LOCK CONNECTIONS Door lock controlled with internal power 1. The door lock is limited to 12Vdc. The holding current must be less than 250mA when using internal power supply. 2. -
Page 7: System Wiring And Connections
CDV-T5 2EASY 2-wire Touchscreen Video Door Station Fail Safe Fail Secure Cut off the line Cut off the line +12V +12V LK - (GND) LK - (GND) LK+(COM) LK+(COM) N.O. N.O. Exit button Exit button 1 2 3 1 2 3 Take off the Jumper Take off the Jumper JP_LK... - Page 8 CDV-T5 2EASY 2-wire Touchscreen Video Door Station Wiring Diagram...
- Page 9 2EASY 2-wire Touchscreen Video Door Station Star Topology with CDV-DBC4A1 The system can be extended by up to 3 slave monitors for each monitor. We recommend you use the CDVI distributor CDV-DBC4A for the extension. IMPORTANT: Subject to cable type. Recommended cable:...
-
Page 10: Door Station Operations
CDV-T5 2EASY 2-wire Touchscreen Video Door Station 6] DOOR STATION OPERATIONS Main Menu Press to enter se�ng page Keypad bu�on Unlock bu�on Namelist bu�on Help bu�on Calling a resident via room number input 1. Press the keypad button to enter the keypad page. 2. -
Page 11: Firmware Update Notice
CDV-T5 2EASY 2-wire Touchscreen Video Door Station 7] FIRMWARE UPDATE NOTICE In order to update the CDV-T5 door station to the latest firmware, follow these steps: • During power up, the “Busy/ Sandclock” LED will light up until the touchscreen module booting is finished: •... -
Page 12: Main Menu
CDV-T5 2EASY 2-wire Touchscreen Video Door Station You can check if you are still in Installer mode by looking at the main menu: Installer mode exited Installer mode still actived If the door station is still in installer mode, tap the blue bar at the top to get into installer menu and exit it. - Page 13 CDV-T5 2EASY 2-wire Touchscreen Video Door Station 5. Other Settings Sub-menu Description Default main menus when in standby: Room list Name list Classic main menu Sorted by room number Sorted by name Default menus select Display date and time in the list calling menu: Enabled Disabled List display date time...
- Page 14 Switching Access Card Output Setting the ACC mode allows card data to be extracted from the bus to a standard Wiegand reader port of an ACU, such as CDVI’s ATRIUM system. Note: The built-in reader is dual-technology for 125Khz Proximity Cards and 13.56Mhz for MIFARE®...
- Page 15 CDV-T5 2EASY 2-wire Touchscreen Video Door Station 7. Password • Disable code unlock: When enabled, users won’t be able to unlock with a password. • Change public unlock: Enter current public unlock password, then enter the new password twice (4digits). •...
- Page 16 CDV-T5 2EASY 2-wire Touchscreen Video Door Station Manage monitors Tap on the monitor that needs configuring as follows: IM Manage Call tes�ng 1-16 17-32 DT addr 01 1 02 2 Manage PWD 03 3 04 4 0000 05 5 06 6 Unlock code 07 7 08 8...
- Page 17 CDV-T5 2EASY 2-wire Touchscreen Video Door Station View Cards View card Tap “View Cards” to display card information. Room • Hold the card to the reader of which the card information you Name want to check Card ID • Enter or select a room •...
-
Page 18: Specifications
CDV-T5 2EASY 2-wire Touchscreen Video Door Station 12. Upgrade Upgrade Source SD card Download code xxxxxx Tap to upgrade the module's firmware. (core firmware) Check 13. RES manage Uploads customised files: display language, default settings and logo. RES manage does not manage “Voice prompt”. •... - Page 19 CDV-T5 2EASY 2-wire Touchscreen Video Door Station Notes ..........................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................
