Summary of Contents for CDVI 2EASY CDV-850IP

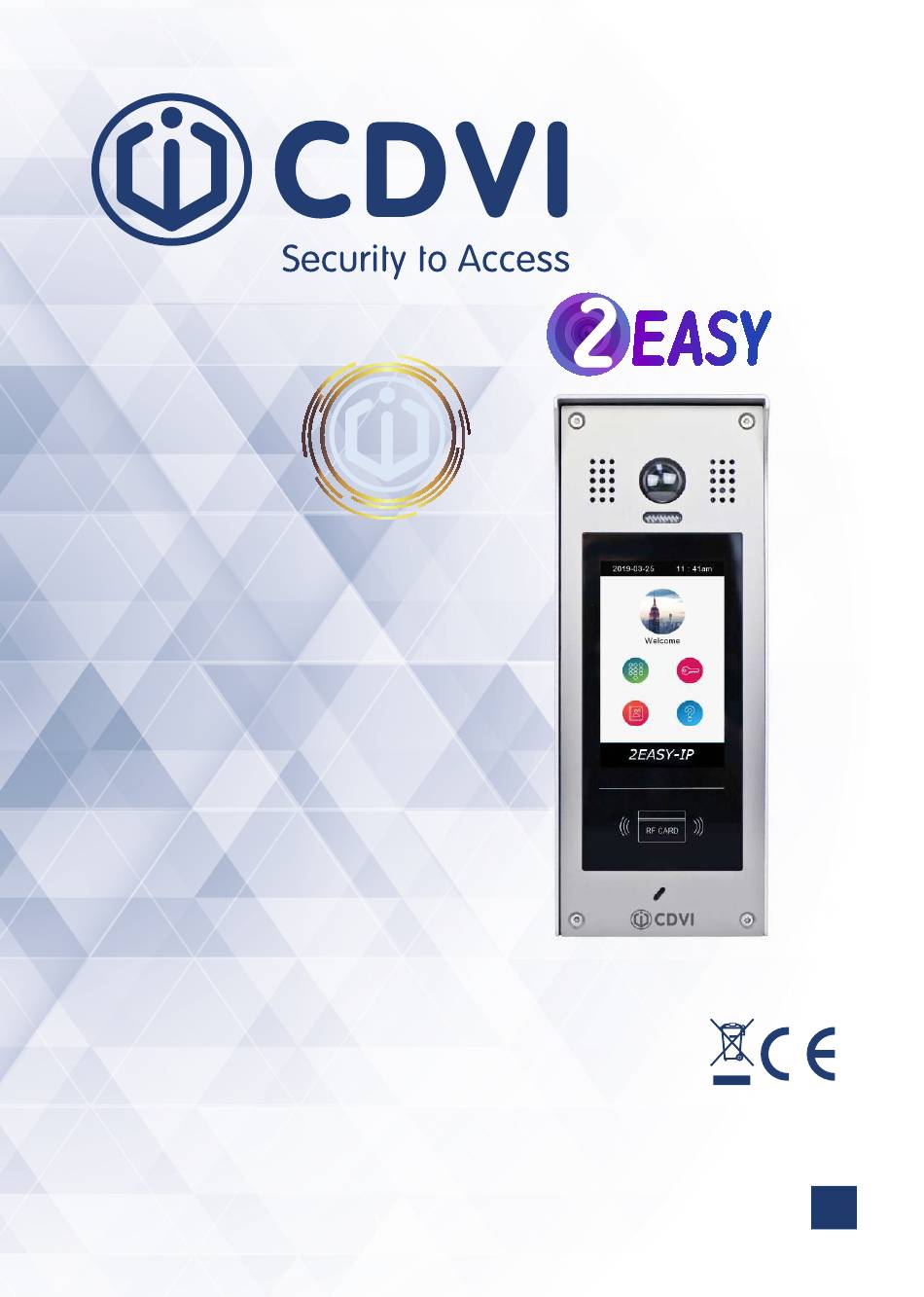

- Page 1 YEAR WARRANTY CDV-850IP 2EASY IP, Touchscreen Video Door Station...
-
Page 2: Table Of Contents
CDV-850IP 2EASY IP, Touchscreen Video Door Station 1] CONTENTS Title Page 2] Parts and Functions 3] Installation 4] Electric Lock Connections 5] System Wiring and Connections 6] Door Station Operations 7] Installer Mode 8] Unlock Settings 9] Management Settings Menu 10] Specifications 11] Precautions... -
Page 3: Parts And Functions

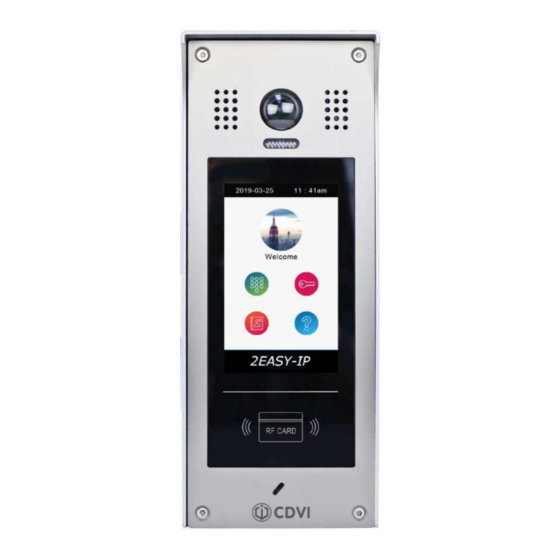

CDV-850IP 2EASY IP, Touchscreen Video Door Station 2] PARTS AND FUNCTIONS Camera Lens Speaker LED_CAM LCD Screen SD Card slot Lan Connector Connector Card Reader Terminal connector Microphone Notes: Indicates monitoring status The door station beeps if the card cannot unlock the door Use to connect the door station to the network Use to connect external devices to the door station 3] INSTALLATION... - Page 4 CDV-850IP 2EASY IP, Touchscreen Video Door Station Flush installation 1. The recommended installation height for door stations is 145-160cm. 2. Use screws to fix the back panel to the wall after correctly connecting the cable. 3. Attach the front panel to the back panel, then use a screw to fix it.
-
Page 5: Electric Lock Connections
CDV-850IP 2EASY IP, Touchscreen Video Door Station 4] ELECTRIC LOCK CONNECTIONS Door lock controlled with internal power Notes: 1. This mode only supports LK - electromagnetic locks. 2. Fail safe electromagnetic locks N.O. (power off to unlock) should be used. EB - 12V 300mA 12Vdc, 300mA... -
Page 6: System Wiring And Connections
CDV-850IP 2EASY IP, Touchscreen Video Door Station 5] SYSTEM WIRING AND CONNECTIONS 6] DOOR STATION OPERATIONS Main menu Press to enter se�ng page Keypad bu�on Unlock bu�on Namelist bu�on Help bu�on... -
Page 7: Installer Mode
CDV-850IP 2EASY IP, Touchscreen Video Door Station Calling a resident via room number input 1. Press the keypad button to enter the keypad page. 2. Input the room numb 3. Press to call. Calling a resident via namelist Press the namelist button to enter the namelist page. 2. -
Page 8: Unlock Settings
CDV-850IP 2EASY IP, Touchscreen Video Door Station Start installer mode 990166666666 PWD free for all device Always in installer mode Enter 8] UNLOCK SETTINGS In Installer Mode (Unlock with code 9901 and tap in the middle of the blue bar at the top): 1. -
Page 9: Management Settings Menu
CDV-850IP 2EASY IP, Touchscreen Video Door Station 9] MANAGEMENT SETTINGS MENU 1. Press the unlock button. 2. Input “990288888888” than confirm (9902+installer password 88888888 by default) Public unlock mode Change public code 1. In the Management Setting Menu. 2. Select Unlock code setting. 3. - Page 10 CDV-850IP 2EASY IP, Touchscreen Video Door Station Add a card View card Tap add card in Access cards to add a Tap View Card in Access Card to new access card. check added cards. Add card Room View card Card List Room By input Room...
-
Page 11: Specifications
CDV-850IP 2EASY IP, Touchscreen Video Door Station 10] SPECIFICATIONS Feature Description Power Source PoE (IEEE 802.3af Class 0) LAN Interface 10 BASE-T / 100 BASE-TX Ethernet (RJ-45) Camera Type 1/3.7” Ultra Sense, ISP with 77dB WDR Len angle 170 degree with Fisheye correction Screen 5”... - Page 12 +39 (0) 321 90 573 www.cdvi.it CDVI MAROC +212 (0) 5 22 48 09 40 www.cdvi.ma CDVI SWEDEN [SWEDEN - DENMARK - NORWAY - FINLAND] +46 (0) 31 760 19 30 www.cdvi.se CDVI UK [UNITED KINGDOM - IRELAND] +44 (0) 1628 531300 www.cdvi.co.uk...
