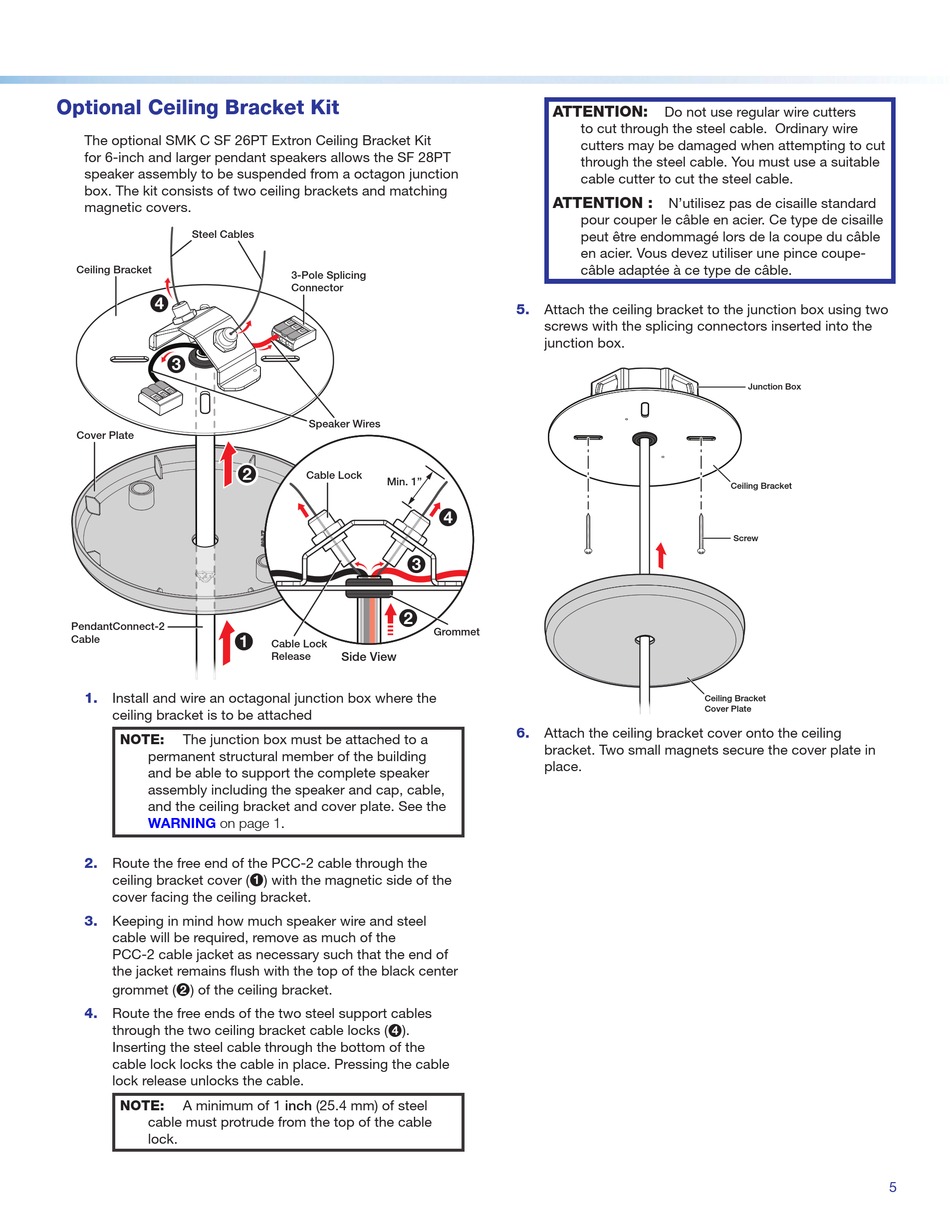

Optional Ceiling Bracket Kit

The optional SMK C SF 26PT Extron Ceiling Bracket Kit
for 6-inch and larger pendant speakers allows the SF 28PT
speaker assembly to be suspended from a octagon junction
box. The kit consists of two ceiling brackets and matching
magnetic covers.
Steel Cables
Ceiling Bracket
4 4 4
3 3 3
Cover Plate
PendantConnect-2
1 1 1
Cable
1. Install and wire an octagonal junction box where the
ceiling bracket is to be attached
NOTE: The junction box must be attached to a
permanent structural member of the building
and be able to support the complete speaker
assembly including the speaker and cap, cable,
and the ceiling bracket and cover plate. See the
WARNING
on page 1.
2. Route the free end of the PCC-2 cable through the
ceiling bracket cover (
cover facing the ceiling bracket.
3. Keeping in mind how much speaker wire and steel
cable will be required, remove as much of the
PCC-2 cable jacket as necessary such that the end of
the jacket remains flush with the top of the black center
grommet ( ) of the ceiling bracket.
2
4. Route the free ends of the two steel support cables
through the two ceiling bracket cable locks (
Inserting the steel cable through the bottom of the
cable lock locks the cable in place. Pressing the cable
lock release unlocks the cable.
NOTE: A minimum of 1 inch (25.4 mm) of steel
cable must protrude from the top of the cable
lock.
3-Pole Splicing
Connector
Speaker Wires
2 2 2
Cable Lock
Min. 1"
3 3 3
2 2 2
Cable Lock
Side View
Release
Cable Lock
Min. 1"
) with the magnetic side of the
1
3 3 3
2 2 2
).
4
Cable Lock
Side View
Release
ATTENTION:
to cut through the steel cable. Ordinary wire
cutters may be damaged when attempting to cut
through the steel cable. You must use a suitable
cable cutter to cut the steel cable.
ATTENTION :
pour couper le câble en acier. Ce type de cisaille
peut être endommagé lors de la coupe du câble
en acier. Vous devez utiliser une pince coupe-
câble adaptée à ce type de câble.
5. Attach the ceiling bracket to the junction box using two
screws with the splicing connectors inserted into the
junction box.
4 4 4
Grommet
Attach the ceiling bracket cover onto the ceiling
6.
bracket. Two small magnets secure the cover plate in
place.
4 4 4
Product Category
Do not use regular wire cutters
N'utilisez pas de cisaille standard
Junction Box
Ceiling Bracket
Screw
Ceiling Bracket
Cover Plate
5
