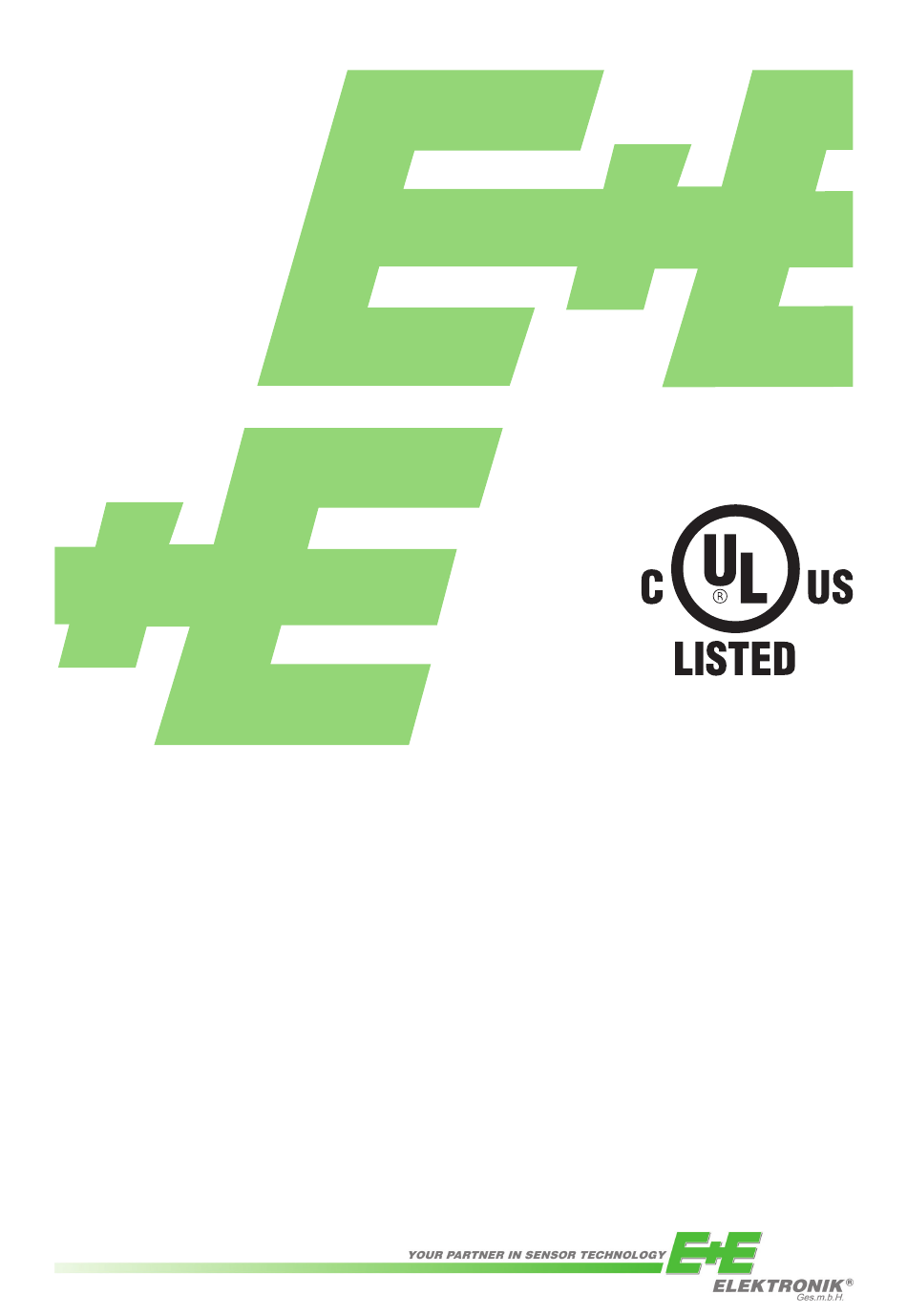

- Page 1 Operation manual EE360 Moisture in Oil Transmitter BA_EE360_UL // V1.0 // Technical data subject to change // 194793...
- Page 2 E+E Elektronik® Ges.m.b.H. provides no warranty of any kind for this publication and accepts no liability for improper use of the products described. This publication might contain technical inaccuracies or typographical errors. The content is revised regularly and is not subject to change management. The manufacturer reserves the right to modify or change its described products at any time.
-
Page 3: Table Of Contents
RH / T adjustment and calibration .......................33 Replacement Parts / Accessories ....................34 Scope of Supply ..........................34 Technical Data ...........................35 10 Appendix ............................36 10.1 Appendix A ..............................36 11 Ordering Guide ..........................41 11.1 Measurand Code ............................41 Operating instructions for EE360 Moisture in Oil Transmitter... -
Page 4: General
1.2.2. Alarm module with voltages >50 V (option AM2, AM6) The optional alarm module is isolated from the low-voltage side of EE360 by a special partition; this must remain fitted at all times in the bottom part of the enclosure. -
Page 5: Product Description

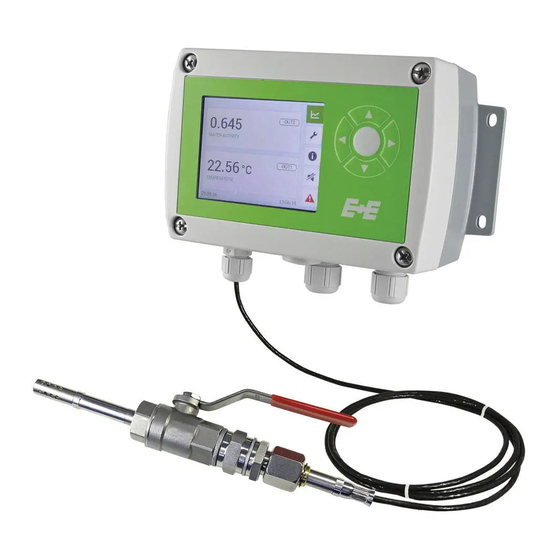

The UL certified EE360 is dedicated for reliable monitoring of lubrication, hydraulic and insulation oils as well as diesel fuel. In addition to highly accurate measurement of water activity (aw) and tempera- ture (T), EE360 calculates the absolute water content (x) in ppm (see also 2.3 Water activity vs. water content). -
Page 6: Probes
For assessing how far is the oil from saturation, x must be regarded together with T. EE360 calculates x out of the measured aw and T values. The calculation is oil dependent and requires a set of oil specific parameters. (Contact an E+E representative for details.) Indoor and Outdoor use The EE360 is suitable for indoor and outdoor use. -
Page 7: Installation
• Mount the two DIN rail brackets (to be ordered separately, see chapter 7 Replacement Parts / Acces- sories) onto the back side of the enclosure. • Snap in the enclosure onto the DIN rail Fig. 6 DIN rail installation Operating instructions for EE360 Moisture in Oil Transmitter... -
Page 8: Electrical Connection
Electrical connection The electrical installation of the EE360 shall be performed by qualified personnel only. Observe all applicable national and international requirements for the installation of electrical devices. Analogue outputs Both analogue outputs shall be configured to either voltage or current. Measurands, analogue range and scaling are freely selectable. - Page 9 Model Type Ratings Terminals RS485 A (=D+) (7) – 0-5V EE360 with option J3 Modbus RTU RS485 B (=D-) (8) – (SELV Limited Energy source) GND RS485 (6) Tab. 1 Electrical Connections Operating instructions for EE360 Moisture in Oil Transmitter...
-
Page 10: Connection Diagram Option E4
3.2.2 Connection diagram Option E4 GND Output OUT 2 OUT 1 power supply + analogue output Fig. 9 Plug option E4 for EE360 (front connector view) GND RS485 (shielded) Model Supply Input Terminals Voltage/Frequency n.c. RS485 A Indoor use: Plug pin... -
Page 11: Connection Diagram Options E6 And E12
Fig. 11 Plug option E6 and E12 (front connector view) GND RS485 GND Output (shielded) OUT 2 n.c. n.c. RS485 A (=D+) OUT 1 n.c. n.c. RS485 B Operating instructions for EE360 Moisture in Oil Transmitter (=D-) Modbus RTU Analogue output... -
Page 12: Connection Diagram Conduit Option
Note for E24: ½” Liquid-Tight Flexible Nonmetallic Conduit Type B (FNMC-B) is installed. Cable used for installation shall be suitable flexible listed cord/cable in accordance with NEC. Local regulation for installation must be observed. Operating instructions for EE360 Moisture in Oil Transmitter... - Page 13 Terminals RS485 A (=D+) (7) – 0-5V EE360 with option J3 Modbus RTU RS485 B (=D-) (8) – (SELV Limited Energy source) GND RS485 (6) Tab. 7 Conduit options E23 / E24 Operating instructions for EE360 Moisture in Oil Transmitter...
-
Page 14: Connection Diagram For Integrated Power Supply Module Am3
Power supply 100 - 240 V AC for polycarbonate enclosure Fig. 13 Plug option AM3 for EE360 (front connector view) External diameter of the supply cable for option AM3: 10 - 12 mm (0.39 - 0.47”) Maximum wire cross section for AM3 connecting cable: 1.5 mm²... -
Page 15: Connection Digram For Integrated Power Supply Module Am5
CANADA: 0.7 Nm 8 - 35 V DC Supply 12 - 30 V AC Analogue outputs OUT 1 OUT 2 GND RS485 Modbus RTU RS485 A (=D+) (galvanically isolated) RS485 B (=D-) Operating instructions for EE360 Moisture in Oil Transmitter... -
Page 16: Connection Diagram For Alarm Outputs Am2
NO (1) EE360 with option AM2 Max. switch load: 250 Vac / 6 A and 28 Vdc / 6 A C (2) - Min. switch load: 12 Vac/dc / 100 mA NC (3) Operating instructions for EE360 Moisture in Oil Transmitter... - Page 17 (SELV Limited Energy source) Model Type Ratings Terminals RS485 A (=D+) (7) – EE360 with option AM3 0-5V Modbus RTU RS485 B (=D-) (8) – and J3 (SELV Limited Energy source) GND RS485 (6) Operating instructions for EE360 Moisture in Oil Transmitter...
-
Page 18: Connection Diagram For Alarm Outputs Am6
Voltage/Frequency Indoor use: 12 to 30Vac, 50/60Hz (Class 2 supply) 8-35Vdc (LPS) V+ (1) – EE360 with option AM6 Outdoor use: GND (2) 12 to 16Vac, 50/60Hz (Class 2 supply) 8-35Vdc (LPS) Operating instructions for EE360 Moisture in Oil Transmitter... -
Page 19: Probe Mounting
(on the cable side). General safety instructions for installation The installation, commissioning and operation of the EE360 may be performed by qualified staff only. Special attention shall be paid to the correct installation of the probe into the process. In case of inap- propriate installation there is the risk for the probe to be suddenly expulsed due to the pressure in the process. -
Page 20: Installation Of The Probe Directly In The Process With Sliding Fitting Up To 20 Bar
±40 °C from the regular temperature during normal operation. (±72 °F) Replace the metal sealing ring (see Fig. 16 Installation of the EE360 probe directly into the process) by a new one every time before re-installing the probe. Probe installation steps •... - Page 21 Observe the correct positioning of the sealing element 1 before reinstalling the probe. Replacement of the sealing element In case of repeated installations and removals the sealing element 1 can might damaged. It can be replaced by the user. Operating instructions for EE360 Moisture in Oil Transmitter...
-
Page 22: Installation Of The Probe With Cut-In Fitting Up To 100 Bar (1450 Psi)
Re-mounting: • Slide measurement sensor with clamping rings into the fitting as far as it will go. • Tighten the nut “fingertight”, then tighten by approx. a ¼ turn using a spanner. Operating instructions for EE360 Moisture in Oil Transmitter... -
Page 23: Optional Modules
AM6 In accordance with NFPA 70, NEC and with CSA C22.1, CEC, Part 1. A switch or circuit-breaker must be included in the installation. It must be marked as disconnecting device for the EE360. Disconnecting means all current-carrying conductors shall be disconnected. Additional it must be suitable located and easily reached. - Page 24 Switching point Mode Hysteresis Switch window Switching point Switching point high Hysteresis Standard Normal state Inverted Standard Error indication Normal state Inverted * Menu only available with connected alarm module during EE360 start-up Operating instructions for EE360 Moisture in Oil Transmitter...
-
Page 25: Integrated Power Supply 100
RS485 Module - Modbus RTU (option J3) Instructions for Modbus-Protocol-Setup please see Application Note AN0103 (www.epluse.com/EE360). Up to 32 EE360 transmitters with Modbus RTU interface can be connected in a RS-485 bus system. Slave n Slave 2 (max. 32) -
Page 26: Modbus Map
None Parity Even Stop bits value value Address * Menu only available with connected Modbus RTU module during EE360 start-up. Data transmission Factory settings Selectable values Baud rate 9600 300, 600, 1200, 2400, 4800, 9600, 19200, 38400, 57600, 76800 Data bits... -
Page 27: Operation
LED 4 Error LED power supply/ main board error LED on = error category 1 error LED flashes = error category 2 Fig. 27 Status LEDs are located at the USB port Operating instructions for EE360 Moisture in Oil Transmitter... -
Page 28: Tft Colour Display (Optional)
3.5” TFT Colour Display (optional) The EE360 display includes a data logger and push buttons for full configuration of the device. Upon start-up of an EE360 with display, the data logger and the configuration menu will be initialised during the first 5 seconds. - Page 29 (first in first out memory). The last 20.000 logged values are available in the internal memory. The logged data can be downloaded with EE-PCS Product Configuration Software as .csv file by choosing the measurands and the time period. Operating instructions for EE360 Moisture in Oil Transmitter...
-
Page 30: Configuration Menu
- language | date, time | parameters | password protection status and device information Status * Menu only available with connected corresponding modules. Status information The status information shows all actual EE360 settings. Fig. 30 Status information Buzzer ON / OFF Buzzer ON... -
Page 31: Maintenance
LED 1 (blue): analogue output is set to voltage. LED 2 (orange): analogue output is set to current. LED 3 (flashing green): supply voltage applied (microprocessor is active). LED 4 (red): constant lit: error category 1 flashes: error category 2 Operating instructions for EE360 Moisture in Oil Transmitter... -
Page 32: Solving Typical Problems
• Screw on a new filter cap with upmost care not to touch the sensors. • Fix the filter cap by pressing in the lock. • Perform a 2 point humidity adjustment of the EE360 with the EE-PCS Product Configuration Software or with the display and push buttons. -
Page 33: Rh / T Adjustment And Calibration
(comparison with a reference) or adjustment (bringing the device in line with a reference). Calibration and adjustment at E+E Elektronik Calibration and/or adjustment can be performed in the E+E Elektronik calibration laboratory. For infor- mation on the E+E capabilities in ISO or accredited calibration please see www.eplusecal.com. -
Page 34: Replacement Parts / Accessories
AM3 / E4 / E6 / E12 Mating plug RSC 5/7 (2 pcs. for option E12) E5 / E6 / E12 *) Other languages can be downloaded at www.epluse.com/EE360 Tab. 12 Scope of supply Operating instructions for EE360 Moisture in Oil Transmitter... -
Page 35: Technical Data
3) Appropriate for outdoor use, wet location, degree of pollution 2, overvoltage category II, altitude up to 3000 m (9843 ft). 4) IP65 not evaluated by UL. 5) Plastic enclosure, without M12 plug (E4, E5, E6, E12), conduit fitting E23, option D2, AM2, AM3 Operating instructions for EE360 Moisture in Oil Transmitter... -
Page 36: 10 Appendix
10 Appendix 10.1 Appendix A Overview Menu Data-logging Display settings Analog output Alarm output* Customer adjustment Modbus settings* Device settings Status * Menu only available with connected modules. Detailed information Operating instructions for EE360 Moisture in Oil Transmitter... - Page 37 Water activity [aw] Water content [ppm] Regular Rel. humidity [%] Temperature [°C] Orientation Temperature [°F] Temperature [K] 180 degrees Measurand Alarm 1 Limit high value Display alarm Alarm 2 Limit low value Hysteresis Operating instructions for EE360 Moisture in Oil Transmitter...
- Page 38 Reference value Offset Current measured value Reference Rel. humidity Reference value value value low 2 point adjustment Reference value Current measured Temperature high value Calibration status Reset to factory calibration Operating instructions for EE360 Moisture in Oil Transmitter...
- Page 39 SI units Measuring system US units Capacity C76 Humidity coefficient Capacity offset Working pressure Parameters Capacity gain Probe replacement Resistance R0 Temperature coefficient TK Resistance Offset Oil parameter Password protection Activate Code Buzzer Operating instructions for EE360 Moisture in Oil Transmitter...
- Page 40 Switching point Switching point high Hysteresis Standard Normal state Inverted Standard Error indication Normal state Inverted Modbus settings Baudrate value None Parity Even Stop bits value value Address Fig. 36 Configuration menu Operating instructions for EE360 Moisture in Oil Transmitter...
-
Page 41: 11 Ordering Guide
3) Alarm output with cable glands 7) Integrated power supply with two 1/2” liquid-tight conduit fittings 11.1 Measurand Code MAxx / MBxx MAxx / MBxx °C Water content x in mineral transmormer oil Temperature °F Water content x in customer specific oil 70PPMxxx Water acitvity Operating instructions for EE360 Moisture in Oil Transmitter... - Page 42 Operating instructions for EE360 Moisture in Oil Transmitter...
- Page 43 Operating instructions for EE360 Moisture in Oil Transmitter...
- Page 44 COMPANY HEADQUARTERS TECHNICAL OFFICES & PRODUCTION SITE E+E CHINA E+E ITALY E+E ELEKTRONIK Ges.m.b.H. www.epluse.cn www.epluse.it www.epluse.com BEIJING Tel: +39 02 2707 8636 Langwiesen 7 info@epluse.it Tel: +86 10 84992361 A-4209 Engerwitzdorf info@epluse.cn Austria SHANGHAI Tel: +43 7235 605 0...
