- Page 1 Manual EE355 Dew Point Transmitter down to -60 °C Td BA_EE355_e // V1.3 // technical data are subject to change...
- Page 2 E+E Elektronik® Ges.m.b.H. doesn’t accept warranty and liability claims neither upon this publication nor in case of improper treatment of the described products. The document may contain technical inaccuracies and typographical errors. The content will be revised on a regular basis.
-
Page 3: Table Of Contents
Setup and Adjustment ........................10 Dew point adjustment by the user .......................10 Modbus RTU ............................11 Data Transmission ............................11 Modbus Map ..............................11 Maintenance ............................12 Filter replacement ............................12 Sensor cleaning ............................12 Accessories ............................13 Scope of Supply ............................13 Technical Data ...........................13 Manual EE355 Dew point transmitter... -
Page 4: General
Mounting, electrical installation, putting into operation and maintenance should be done by quali- fied personnel only. The use of the EE355 in any other way than described in this manual bears a safety risk for peo- ple and the entire measurement installation and is therefore not allowed. -
Page 5: Installation, Start Up And Control
The accountability is limited to the value of the order issued at the time to the manufactur- The manufacturer is not liable for damages, originated from disregarding the safety instructions or violating the instructions of the manual or operating conditions. Consequential damages are excluded from the any liability. Manual EE355 Dew point transmitter... -
Page 6: Environmental Aspects

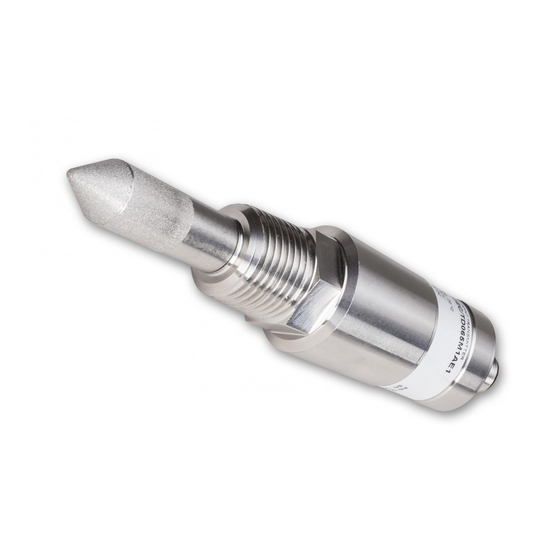

Product description General The compact EE355 Dew Point Transmitter with a measuring range down to -60 °C Td and an robust stainless steel housing is ideal for OEM applications in compressed air systems, plastic dryers and industrial drying processes. The core of the EE355 is the monolithic measurement cell type HMC200, manufactured in thin-film technology. Due to the excellent long term stability and... -
Page 7: Autocalibration
If there is a pressure difference between the location of installation and the process, the measurement can be several tens of degrees dew point off. The exact effects of changes in pressure on the dew point can be simulated using the E+E hu- midity calculator. Please find further details on our website www.epluse.com. Manual EE355 Dew point transmitter... -
Page 8: Installing Directly Into The Process
• an excessive process temperature • protecting the sensor against soiling • the need to remove the probe without interrupting the process. To obtain a representative sample of the process gas and to avoid measuring errors, please note Manual EE355 Dew point transmitter... -
Page 9: Basic Sampling Cell
The sampling cell is specially developed for use in compressed air lines and has a quick-connec- tor suitable for standard compressed air connections DN7.2. This allows the cell to be fitted and removed without interrupting the process. The flow of gas can be adjusted using a bleed screw. Pressure range: 0...10 bar (0...145 psi) Order code: HA050102 G 1/2“ ISO Bleed screw Quick connector DN7.2 Pic. 5 Sampling cell with quick connector Manual EE355 Dew point transmitter... -
Page 10: Electrical Connection
Dew point adjustment by the user is possible only at low dew points. The adjustment can only be carried out if the difference from ambient temperature to the reference dew point temperature is <-60 °C. Example: Ambient temperature = 20 °C Reference dew point temperature must be lower then -40°C. Manual EE355 Dew point transmitter... -
Page 11: Modbus Rtu
Instructions for Modbus-Protocol-Setup please see Application Note AN0103 (www.epluse.com/ EE355). • The EE355 can be used in Modbus networks with max. 32 units. • The bus termination shall be realized with 120 Ohm resistor (not included in the scope of supply) • For proper function the power supply must be strong enough to ensure supply voltage within the speci-... -
Page 12: Maintenance
– continue the operation until the pollutants are dissolved. After the cleaning procedure with isopropyl alcohol, stir the tip of the sensing probe in a container with distilled water for about 30 seconds and then allow it to dry at room temperature. Manual EE355 Dew point transmitter... -
Page 13: Accessories
1) The accuracy statement includes the uncertainty of the factory calibration with an enhancement factor k=2 (2-times standard deviation). The accuracy was calculated in accordance with EA-4/02 and with regard to GUM (Guide to the Expression of Uncertainty in Measurement). 2) Field-attachable mating connector is included in the scope of supply. Manual EE355 Dew point transmitter... - Page 14 Manual EE355 Dew point transmitter...
- Page 15 Manual EE355 Dew point transmitter...
- Page 16 Headquarters subsidiaries e+e elektronik France e+e elektronik Korea e+e elektronik Ges.m.b.H. e+e elektronik Germany info@epluse.fr Tel: +82 31 732 6050 Langwiesen 7 info@epluse.de Tel: +33 4 74 72 35 82 info@epluse.co.kr A-4209 Engerwitzdorf Office Bad Homburg Austria e+e elektronik usa...
