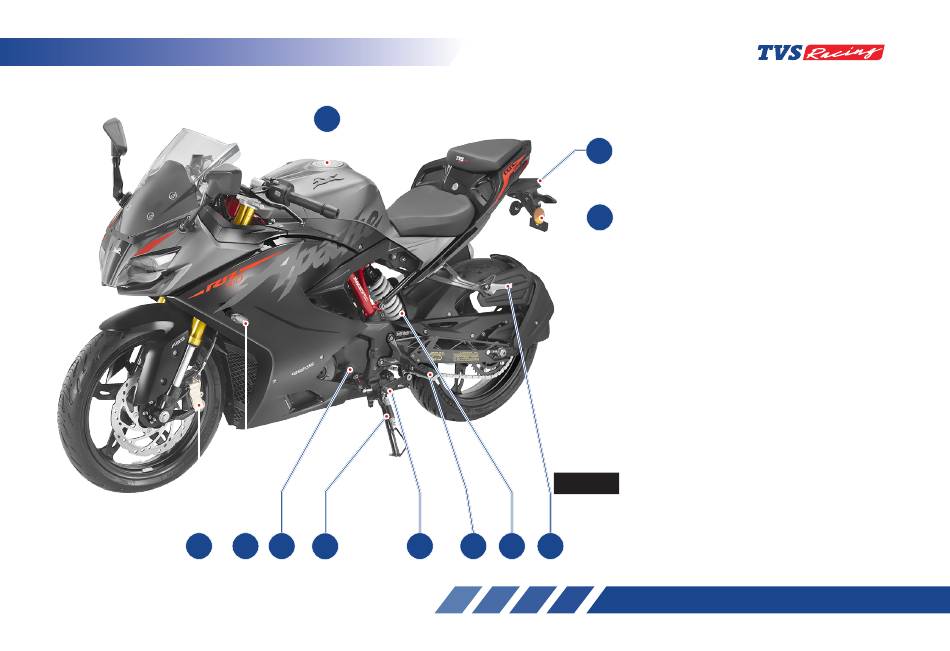

Location of Parts - Vehicle LH Side View (Ref. Fig. 05)
1
18
11
2 3 4 5
1.
2. Turn signal lamp LH front
10
3. Gauge oil level (dipstick)
4. Side stand
9
5. Gear shift pedal (ref. page 27)
6. Rider foot rest LH
7 .
8. Pillion foot rest assembly LH
9. Turn signal lamp LH rear
10. License plate lamp
11. Fuel tank cap assembly
Fig. 05
6 7 8
Caliper assembly front
(ref. page 128)
Rear shock absorber
(ref. page 98)
(ref. page 95)
