Rear Wheel
Ensure the safety precautions listed in the page
127 are followed properly.
Removal
• Carefully place the motorcycle in auxiliary stand
(paddock stand ref. page 161) or centre stand
(if available).
• Place a support below the rear wheel to avoid
falling of wheel after removing the quick release
axle.

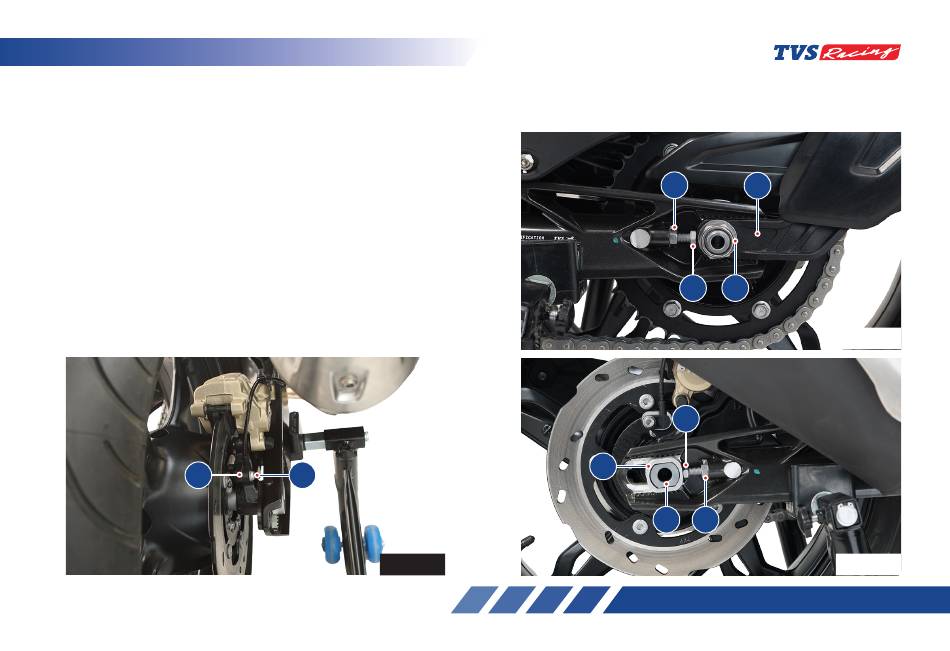

• Remove the mounting screw (1) from the speed
sensor mounting and carefully take out the speed
sensor (2). (ref. Fig.64)
2 1
Fig. 64
• Remove the axle mounting nut (3, ref. Fig 65)
using the proper tool from the tool kit (ref. page
160).
4
6
5
10
9 7
8
3
Fig. 65
Fig. 66
