Reassembly
• Carefully roll the rear wheel on the support into
the swing arm, along with LH & RH spacers and
sprocket, as far as necessary to allow the brake-
caliper to be inserted while taking care of wheel
speed sensor.
• Push the brake pads away from together to ease
the rear wheel entry into swing arm.

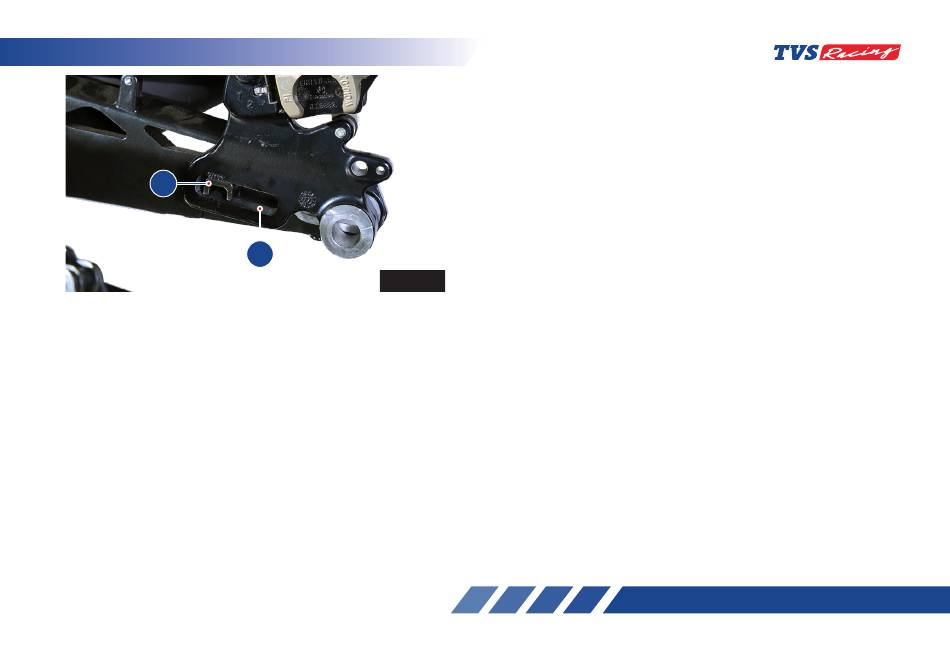

• Place the brake-caliper (1) on the guide (2) of the
swing arm as shown (ref. Fig. 68)
• Roll the rear wheel further into the swing arm,
while pushing the brake-caliper assembly forward
at the same time.
2
Fig. 68
• Roll the rear wheel as far forward as possible and
loop the chain over the sprocket.
• Insert the quick-release axle along with the chain
tensioner from left side of the swing arm while
ensuring that the axle is seated properly into all
the components.
• Assemble the left side chain tensioner.
• Assemble the axle nut along with the washer and
hand tighten it.
• Adjust the chain slackness and tighten the lock
nuts, and the axle nut to the specified torque (ref.
page 183).
• After tightening the axle nut, once again check
and confirm the chain slackness.
• Assemble the speed sensor (2) and mounting
screw (1) in rear caliper (ref. Fig. 58).
