GENERAL ADJUSTMENTS

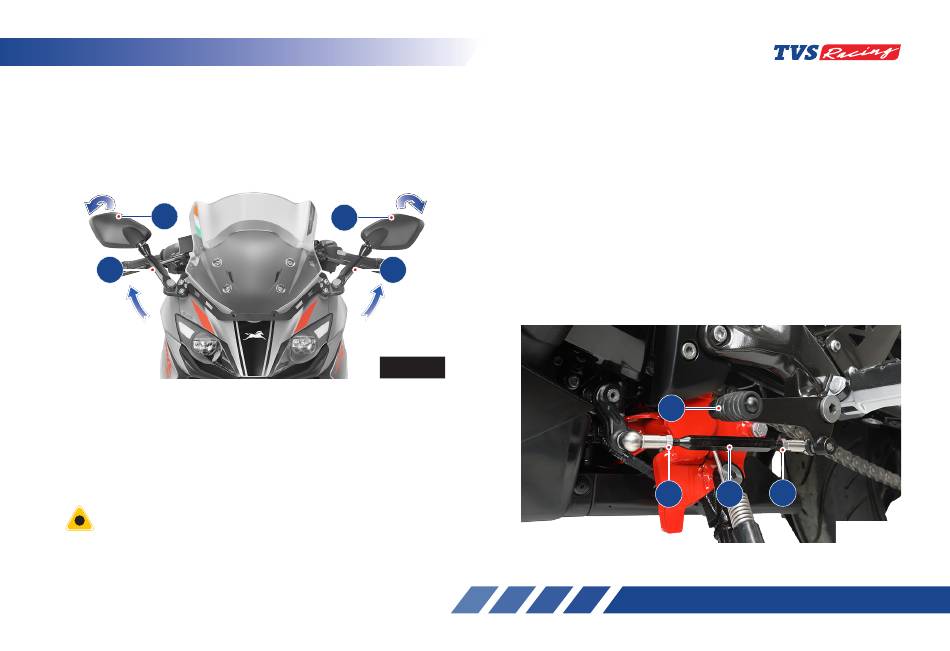

Rear View Mirrors LH & RH (ref. Fig. 34)
Adjustable rear view mirrors (LH & RH) are provided
with your bike. These mirrors can be adjusted to your
convenience by following the procedure given below:
B
A
• Move the rear view mirror stem (A) to the desired
position (forward or backward).
• Tilt the mirror portion (B) till the clear vision is
obtained (up or down).
Caution
Never try to adjust the mirror position by mirror portion
(B) this could break the mirror.
B
A
Fig. 34
Gear Shift Pedal Position Adjustment (ref. Fig. 35)
The position of the gear shift pedal (A) in relation
to the foot rest can be adjusted to suit the rider's
requirement.
To adjust the gear shift pedal position:
• Using an open end spanner hold the gear shift
pedal link rod (1) on the flat surface of the rod.
• Using another open end spanner completely
loosen the lock nuts (2 & 3).
• Now, turn the gear shift pedal link rod (1) 'in' or
'out' until the desired pedal position is set.
A
2
3
1
Fig. 35
