• Place the front wheel down and roll it forward out
of front suspension. Ensure not to damage the
wheel speed sensor during the removal process.

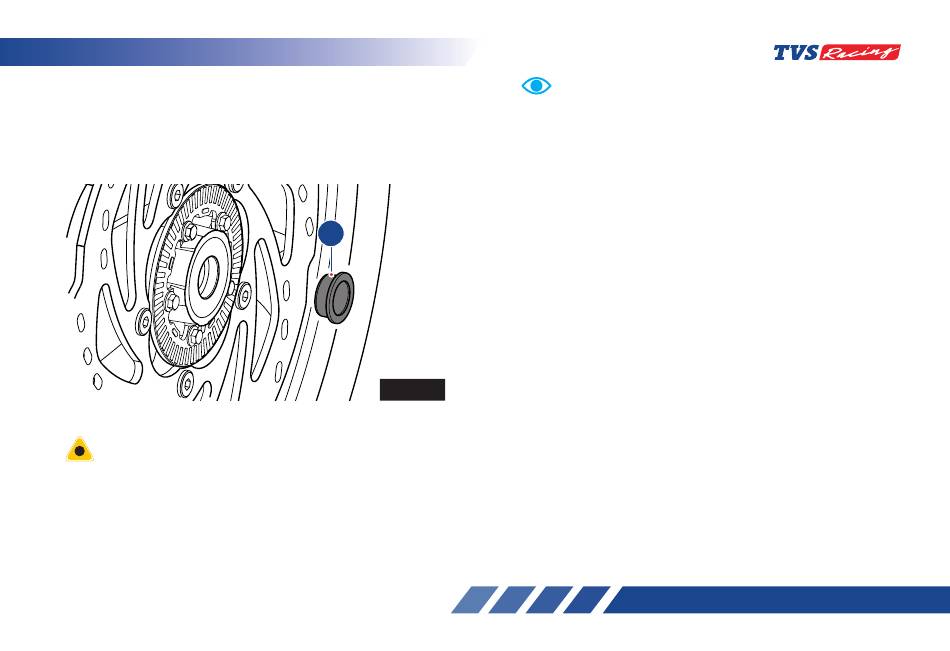

• Take out the spacer bush (7) from the left side of
the wheel hub (ref. Fig. 63).
Caution
Ensure not to damage the brake caliper during wheel
removal.
Do not actuate the brake lever after the wheel is
removed. Unintentional press of brake lever leads to
brake pads binding.
7
Fig. 63
Note
During the wheel removal, take additional care to prevent
the wheel rims from scratches.
Reassembly
• Push the brake pads of front caliper away from
together to ease the front wheel entry in to front
suspension.
• Loosen the mounting screw (8) and take out the
speed sensor (9) from front suspension.
• Fix the spacer bush (7) on the left side of wheel
hub (ref. Fig. 63).
• With the care, roll the front wheel into the front
suspension so that there is no damage to the
wheel speed sensor.
• Lift the front wheel. While ensuring the proper
seating of brake disc into the caliper assembly,
insert the quick release axle.
• Remove the front wheel stand and stroke the
front fork several times without applying the
brake.
• Mount the front wheel stand again and install the
locking screw (3) with specified torque (ref. Fig.
61).
