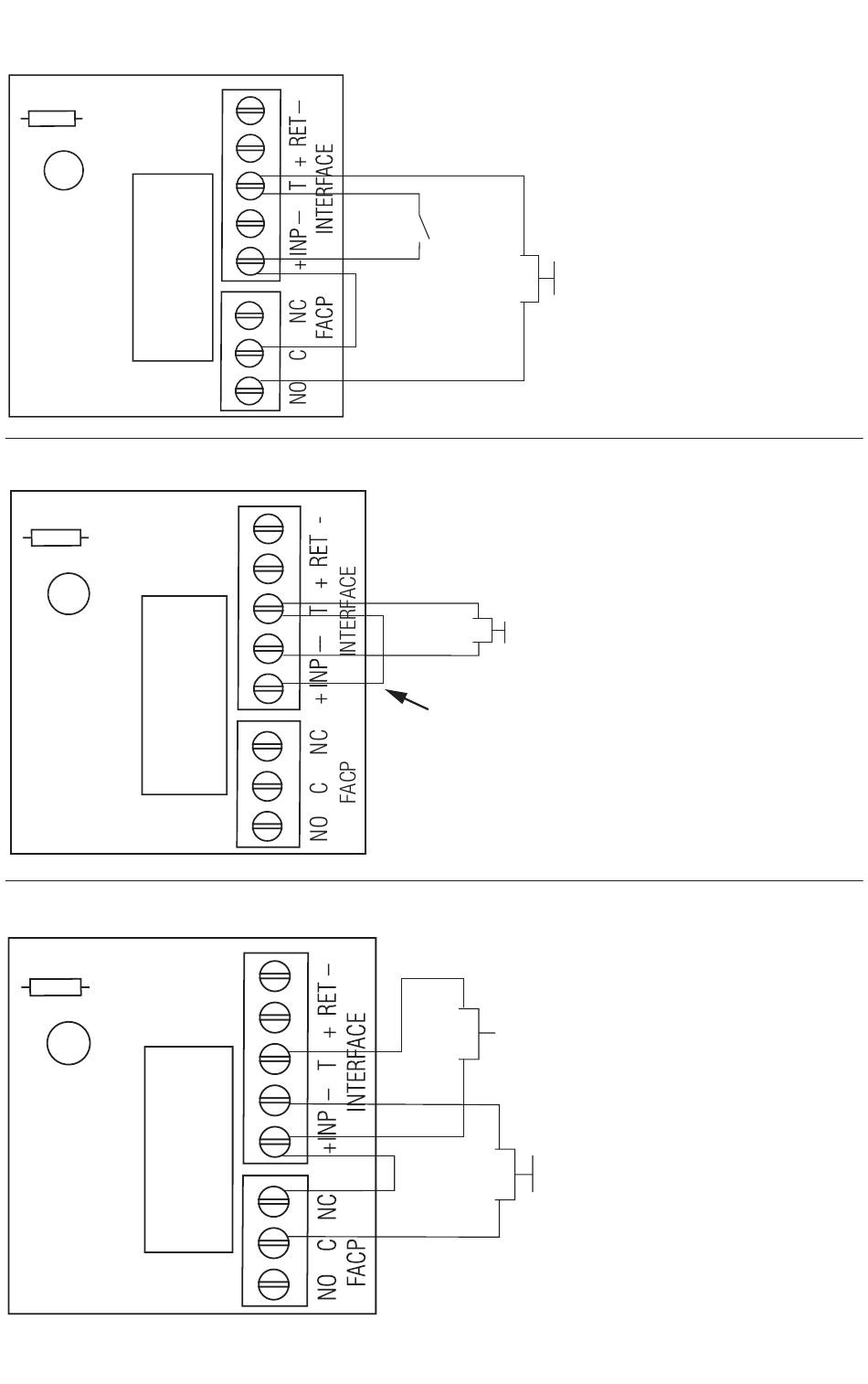

FACP/Optional Power Supply Hook-up Diagrams (cont'd):
Fig. 13
Normally Open FACP Latching trigger input with reset:
FACP
TRG
Fig. 14
Normally Closed - Non-Latching FACP trigger input:
FACP
TRG
Fig. 15
Normally Closed - Latching FACP trigger input with reset:
FACP
TRG
- 18 -
JUMPER
Maximal11DV / Maximal33DV / Maximal55DV / Maximal75DV / Maximal77DV Access Power Controllers (PTC) Installation Guide
N.O.
TRIGGER
INPUT
N.C. DRY
TRIGGER
INPUT
JUMPER
N.C. RESET
SWITCH
N.C. TRIGGER
JUMPER
N.C. RESET
SWITCH
INPUT
