OWNER'S MANUAL
>>
Binary™ 2CAT Extender
HD-2CAT-1080P-130
WELCOME TO THE BINARY™ BRAND OF PRODUCTS
This product is engineered to provide years of exceptional reliability. Binary™
is one of the most highly-regarded cable and media distribution brands available
today. We appreciate your business and we stand committed to providing our
customers with the highest degree of quality and service in the industry.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HD-2CAT-1080P-130 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Binary HD-2CAT-1080P-130

  • Page 1 HD-2CAT-1080P-130 WELCOME TO THE BINARY™ BRAND OF PRODUCTS This product is engineered to provide years of exceptional reliability. Binary™ is one of the most highly-regarded cable and media distribution brands available today. We appreciate your business and we stand committed to providing our...
  • Page 2 IMPORTANT SAFETY INSTRUCTIONS 1. Read and follow all instructions and warnings in this manual. Keep for future reference. 2. Do not install near any heat sources such as radiators, heat registers, stoves or other apparatus (including amplifiers). 3. Do not install the unit near water or where moisture is present. 4.
  • Page 3 INTRODUCTION The HD-2CAT-1080P-130 extends HDMI ® over two Cat5e/6 cables allowing video and audio transmission. FEATURES • HDMI 1.3c compliant • Extend the transmission up to 200 ft. from the HDMI source at HD 1080i or 720p 24-Bit on Cat6 •...
  • Page 4 INPUT PANEL OUTPUT PANEL TRANSMITTER NOTE: Transmission distance up to 200 feet at 1080i on Cat6, 165 feet at 1080p on Cat6, and 130 feet at 1080p on Cat5e (24-Bit). 1. HDMI IN: Connect to a HDMI source with a HDMI male-to-male cable 2.

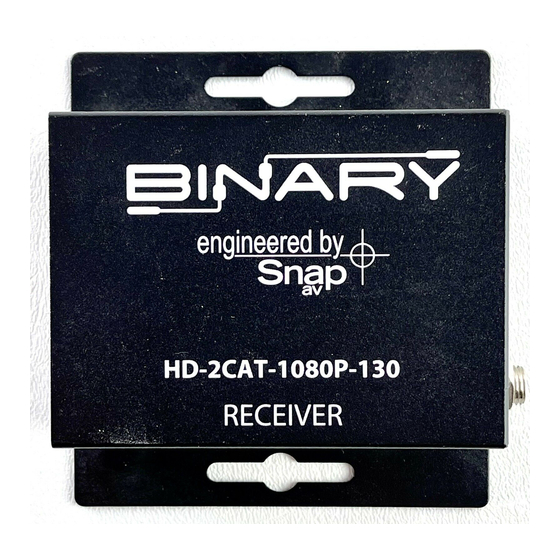

  • Page 5 INPUT PANEL OUTPUT PANEL RECEIVER 5. Latch-locking power jack: Connect to 5V DC power supply. 6. TMDS: Transmission Minimized Distance Signal (Audio/Video) 7. DDC: Display Data Channel (Data) 8. HDMI OUT: Connect to a HDMI display with a HDMI male-to-male cable 9.
  • Page 6 SET-UP HDMI Cable TRANSMITTER Power HDMI Cable RECEIVER Power Cat 5e/ Cat 6 Cables...
  • Page 7 INSTALLATION 1. Test all associated equipment and cables in the system for proper operation. Turn off all power before proceeding. 2. Make sure the HDMI cables being used do not exceed 1.0M (3.28 ft) and are at least 26 AWG. Any length longer than this may cause intermittence issues.
  • Page 8: Specifications

    WARRANTY 2-Year Limited Warranty This Binary™ Product has a Two-Year Limited Warranty. This warranty includes parts and labor repairs on all components found to be defective in material or workmanship under normal conditions of use. This warranty shall not apply to products which have been abused, modified or disassembled. Products to be repaired under this warranty must be returned to SnapAV or a designated service center with prior notification and an assigned return authorization number (RA).
