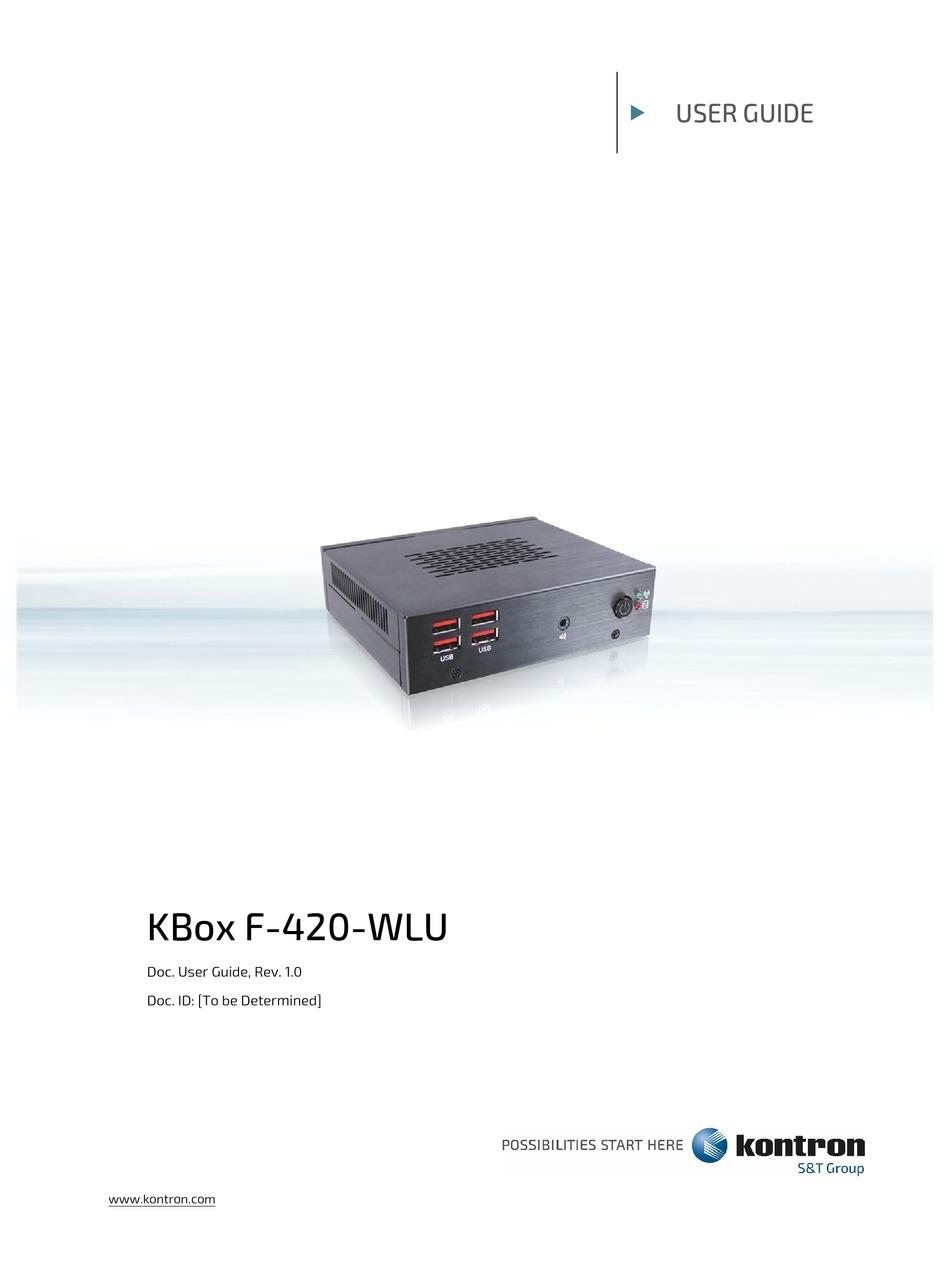

- Page 1 USER GUIDE KBox F-420-WLU Doc. User Guide, Rev. 1.0 Doc. ID: [To be Determined] www.kontron.com...
- Page 2 KBox F-420-WLU - User Guide, Rev. 1.0 This page has been intentionally left blank www.kontron.com // 2...
- Page 3 In cases of doubt, please contact Kontron. This user guide is protected by copyright. All rights are reserved by Kontron. No part of this document may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language or computer language, in any form or by any means (electronic, mechanical, photocopying, recording, or otherwise), without the express written permission of Kontron.
- Page 4 ENVIRONMENTAL DAMAGE (COLLECTIVELY, "HIGH RISK APPLICATIONS"). You understand and agree that your use of Kontron devices as a component in High Risk Applications is entirely at your risk. To minimize the risks associated with your products and applications, you should provide adequate design and operating safeguards.
- Page 5 If you have any difficulties using this user guide, discover an error, or just want to provide some feedback, contact Kontron support. Detail any errors you find. We will correct the errors or problems as soon as possible and post the revised user guide on our website.
-
Page 6: Symbols
KBox F-420-WLU - User Guide, Rev. 1.0 Symbols The following symbols may be used in this user guide DANGER indicates a hazardous situation which, if not avoided, will result in death or serious injury. WARNING indicates a hazardous situation which, if not avoided, could result in death or serious injury. -
Page 7: For Your Safety
Therefore, in the interest of your own safety and of the correct operation of your new Kontron product, you are requested to conform with the following guidelines. -
Page 8: Lithium Battery Precautions
General Instructions on Usage In order to maintain Kontron’s product warranty, this product must not be altered or modified in any way. Changes or modifications to the product, that are not explicitly approved by Kontron and described in this user guide or received from Kontron Support as a special handling instruction, will void your warranty. -
Page 9: Table Of Contents
KBox F-420-WLU - User Guide, Rev. 1.0 Table of Contents Symbols ..........................................6 For Your Safety ........................................7 High Voltage Safety Instructions .................................. 7 Special Handling and Unpacking Instruction ............................7 Lithium Battery Precautions ..................................8 General Instructions on Usage ..................................8 Quality and Environmental Management .............................. - Page 10 KBox F-420-WLU - User Guide, Rev. 1.0 4.4. Internal View - - Top Side ..................................26 4.4.1. M.2 Key B Socket ....................................26 4.4.2. M.2 Key E Socket ....................................26 4.4.3. Micro SIM Card Cage ................................... 27 4.5. Internal View - - Bottom Side ................................28 4.5.1.
-
Page 11: List Of Tables
Figure 6: Internal View - - Bottom Side (without cover) ........................28 Figure 7: Descrewing the bottom access cover ............................ 30 Figure 8: Descrewing the top access cover of the KBox F-420-WLU ..................... 31 Figure 9: Disengaging the top access cover ............................31 Figure 10: Installing the Micro SIM card .............................. - Page 12 KBox F-420-WLU - User Guide, Rev. 1.0 Figure 24: COM1 Pin-9 Selection JP2 ................................. 56 Figure 25: BIOS Main Menu Screen System Data and Time ....................... 60 Figure 26: BIOS Advanced Menu ................................. 62 Figure 27: BIOS Advanced Menu - Display Configuration ........................63 Figure 28: BIOS Advanced Menu - - Super IO Configuration .......................
-
Page 13: 1/ General Safety Instructions For It Equipment
Kontron is exempt from accident liability, this also applies during the warranty period. The product has been built and tested according to the basic safety requirements for low voltage (LVD) applications and has left the manufacturer in safety-related, flawless condition. - Page 14 KBox F-420-WLU - User Guide, Rev. 1.0 Additional safety instructions for DC power supply circuits To guarantee safe operation of devices with DC power supply voltages larger than 60 volts DC or a power consumption larger than 240 VA, please observe that: the device is set up, installed and operated in a room or enclosure marked with ‘‘RESTRICTED ACCESS’’, if...
-
Page 15: Electrostatic Discharge (Esd)
KBox F-420-WLU - User Guide, Rev. 1.0 1.1. Electrostatic Discharge (ESD) A sudden discharge of electrostatic electricity can destroy static-sensitive devices or micro-circuitry. Therefore proper packaging and grounding techniques are necessary precautions to prevent damage. Always take the following precautions: 1. - Page 16 KBox F-420-WLU - User Guide, Rev. 1.0 Do not dispose of lithium batteries in general trash collection. Dispose of the battery according to the local regulations dealing with the disposal of these special materials, (e.g. to the collecting points for dispose of batteries).
-
Page 17: 2/ Electromagnetic Compatibility
Consult the dealer or an experienced radio/TV technician for help. Kontron is not responsible for any radio television interference caused by unauthorized modifications of this equipment or the substitution or attachment of connecting cables and equipment other than those specified by Kontron. -
Page 18: 3/ Shipment And Unpacking
Kontron for help and information. 3.2. Scope of Delivery 3.2.1. Standard 1x KBox F-420-WLU (corresponding to the ordered system configuration) 1x 2-pin terminal block (supplied for model w/ Phoenix connector) 1x Power Adapter (supplied for model w/ DC jack, optional for model w/ Phoenix connector) ... -
Page 19: 4/ System Overview
KBox F-420-WLU - User Guide, Rev. 1.0 4/ System Overview The KBox F-420-WLU is an embedded system enclosed within a compact chassis, offering excellent processing and graphics performance. It can be optionally factory-equipped with an M.2 Key B WWAN card and / or M.2 Key E WLAN / Bluetooth / combo card for two antennas. -
Page 20: System Expansion Capabilities
KBox F-420-WLU - User Guide, Rev. 1.0 4.1. System Expansion Capabilities 4.1.1. System Expansion via M.2 Interface The baseboard comes with three onboard M.2 interface connectors with Key B Type 2242 / 2280 / 3042, Key E Type 2230 / 3030 and Key M Type 2280 support respectively. The Key B connector is intended to be used to install an M.2 WWAN expansion card or an M.2 SSD card drive (not recommended), the Key E connector to install an M.2 WLAN /... -
Page 21: Front I/O Panel
KBox F-420-WLU - User Guide, Rev. 1.0 4.2. Front I/O Panel Figure 1: Front I/O Panel 1 Power Button w/ LED (see Chapter 4.2.1) 2 Storage LED (see Chapter 4.2.2) 3 Wireless LED (see Chapter 4.2.3) 4 Line-Out / Line-In / Mic-In (see Chapter 4.2.4) 5 USB 3.1 (see Chapter 4.2.5) -
Page 22: Wireless Led
(4) connect a headphone with microphone. 4.2.5. USB 3.1 The KBox F-420-WLU provides four USB 3.1 / 2.0 interfaces on the front I/O panel. These connectors allow connection of USB 3.1, USB 3.0 or USB 2.0 compatible device to the system. -
Page 23: Rear I/O Panel
KBox F-420-WLU - User Guide, Rev. 1.0 4.3. Rear I/O Panel Figure 2: Rear I/O Panel (model w/ Phoenix Connector) Figure 3: Rear I/O Panel (model w/ DC Jack) 1 DC-In (2-pin Phoenix Connector) (see Chapter 4.3.1) 2 DC-In (Lockable DC Jack) (see Chapter 4.3.2) 3 DP++ (see Chapter 4.3.3) -
Page 24: Dc-In (2-Pin Phoenix Connector)
DC power source, or use the optional power adapter to converts AC power to DC for use with this connector. In case you order a power adapter from Kontron, the supplied Phoenix plug terminal is attached to the power adapter by default. Otherwise, it is attached to the system in this connector. -
Page 25: Rs232/422/485
/ placed inside a cabinet, custom enclosure or machine. 4.3.9. Antenna Port The KBox F-420-WLU reserves two covered cutouts for the Reverse (RP) SMA connectors of the WLAN and / or WWAN antennas (M.2 WLAN card and / or M.2 WWAN card with 2 antennas is an option). -
Page 26: Internal View - - Top Side
5 M.2 fixing bolt for Key E type 2230 / 3030 or Key B type 2242 / 3042 4.4.1. M.2 Key B Socket The KBox F-420-WLU reserves one M.2 Key B socket (Figure 5, pos. 1), allowing the expansion with a Type 22x80 / 22x42 / 30x42 M.2 WWAN module or M.2 SSD drive (not recommended). -
Page 27: Micro Sim Card Cage
4.4.3. Micro SIM Card Cage The baseboard of the KBox F-420-WLU is equipped with a Micro SIM card cage, which is used to host a micro SIM card to access a WWAN network for data communication. The cage is connected to the M.2 Key B socket. An additional M.2 WWAN module as well as antenna(s) is reqired. -
Page 28: Internal View - - Bottom Side
The KBox F-420-WLU provides two 260-pin DDR4 SO-DIMM sockets (Figure 6, pos. 1) to install memory RAMs. 4.5.2. M.2 Key M Socket The KBox F-420-WLU reserves one M.2 Key M socket (Figure 6, pos. 2), allowing the expansion with a Type 22x80 M.2 SSD drive. -
Page 29: 5/ Accessing Internal Components
KBox F-420-WLU - User Guide, Rev. 1.0 5/ Accessing Internal Components This section contains important information that you must read before accessing the internal components. You must follow these procedures properly when installing, removing or handling any board. It is recommended to expand your system with applicable expansion card(s) before it is installed into an equipment, machine or cabinet. -
Page 30: Opening And Closing The Chassis
To access DDR4 SO-DIMM and M.2 Key M slots / sockets 2. The KBox F-420-WLU should lay on a flat, clean surface with the bottom access cover facing upwards. 3. Loosen and remove the Phillips screws (two located on the bottom access cover), that secure the bottom access cover to the chassis. -
Page 31: Installing So-Dimm Memory Module(S)
14. Tighten the retained screws when the cover is firmly in place. When used as intended, the KBox F-420-WLU is to operate only in closed condition. Only when the access covers are properly fixed with the screws and the rear side with... -
Page 32: Installing An M.2 Key M Ssd
KBox F-420-WLU - User Guide, Rev. 1.0 3. Align the notch on the SO-DIMM memory module with the notch in the SO-DIMM memory socket. 4. Insert the SO-DIMM memory module into the corresponding socket at a 30-degree angle. 5. Rotate the SO-DIMM memory module down until it snaps into place and the levers close. -
Page 33: Installing A Micro Sim Card
KBox F-420-WLU - User Guide, Rev. 1.0 1. Open the device as described in the subsection 5.1 "Opening and Closing the Chassis" (step 1 and 8 - 12). 2. Locate the M.2 Key E socket (M2E1) (Figure 5, pos. 2) and the corresponding fixing bolt (Figure 5, pos. 5 for Type 2230 / 3030 card). -
Page 34: 6/ Thermal Considerations
There are ventilation slots located on the right, left and top sides of the KBox F-420- WLU. They provides heat dissipation during operation. To provide sufficient heat dissipation for the cooling of the KBox F-420-WLU, never cover the ventilation slots of the chassis. Do not place any objects on the device. - Page 35 KBox F-420-WLU - User Guide, Rev. 1.0 When the KBox F-420-WLU is extended and configured with third party components like M.2 expansion card(s) and SSD, it has to be taken into account that the air temperature inside the system is higher than the ambient temperature.
-
Page 36: 7/ Installation Instructions
Refer also to section 10.1.2 ‘‘Mechanical Specifications’’. The KBox F-420-WLU must be firmly attached to a clean flat and solid mounting surface. Use proper fastening materials suitable for the mounting surface. Ensure that the mounting surface type and the used mounting solution safely support the load of the KBox F-420-WLU and the attached components. -
Page 37: System Mounting
In order to adapt the KBox F-420-WLU for mounting Kontron offers different mounting solutions such as: KBox F-420-WLU configuration with a VESA mounting kit for vertical installation onto a wall / the back of a monitor or into a control cabinet / custom enclosure / machine ... -
Page 38: Figure 12: Hole Pattern Of The Mounting Bracket
Figure 13: Securing the VESA mounting bracket 3. Align the fixing slots (Figure 14, pos. 1) on the KBox F-420-WLU with the fixing hooks (Figure 11, pos. 3) on the mounting bracket. Engage them together (Figure 15). Push down the spring cushion (Figure 11, pos. 4) on the mounting bracket until the KBox F-420-WLU can be completely placed on the spring cushion (Figure 15). -
Page 39: Figure 15: Securing The Kbox F-420-Wlu Onto The Mounting Bracket
KBox F-420-WLU - User Guide, Rev. 1.0 Figure 15: Securing the KBox F-420-WLU onto the mounting bracket For a sufficient air circulation around the device, we recommend keep a proper clearance and not mount / operate any other devices within the clearance around the KBox F-420- WLU. -
Page 40: Vesa Mounting (2) - - Compatible With Intel® Nuc
7.1.2. VESA Mounting (2) -- - Compatible with Intel® NUC Depending on the ordered KBox F-420-WLU configuration, your system may be supplied with a VESA mounting kit which compatible with Intel® NUC mini PC (Figure 16). The kit consists of a VESA mounting bracket (Figure 16, pos. 1) to be fixed permanently on the mounting surface, four M4x8 screws (Figure 16, pos. -
Page 41: Figure 18: Securing The Vesa Mounting Bracket
3. Secure two hanger screws (Figure 16, pos. 3) to the bottom side of the KBox F-420-WLU (Figure 19). Figure 19: Securing the hanger screws 4. Insert the heads of the two hanger screws secured on the chassis of the KBox F-420-WLU into the holes on the VESA mounting bracket. Slide the chassis down to secure (Figure 20). - Page 42 KBox F-420-WLU - User Guide, Rev. 1.0 For a sufficient air circulation around the device, we recommend keep a proper clearance and not mount / operate any other devices within the clearance around the KBox F-420- WLU. www.kontron.com // 42...
-
Page 43: Dc Power Connection
1) via a DC power supply wiring or a DC power input jack (Figure 3, pos. 1) to a DC power source. For the model with DC jack, the KBox F-420-WLU is delivered with a power adapter to convert AC voltage into DC 12 V and a power cord to carry AC power to the power adapter. - Page 44 KBox F-420-WLU - User Guide, Rev. 1.0 www.kontron.com // 44...
-
Page 45: 8/ Start Up
2. Connect the Phoenix power plug terminal prepared as described in the subsection 7.2.1 "Cabling" to the DC input Phoenix connector (Figure 2, pos. 1) of the KBox F-420-WLU. The DC input connector is located on the rear side. www.kontron.com... - Page 46 1. Connect the power adapter cable with Phoenix power plug terminal or DC power plug to the Phoenix connector (DC IN, Figure 2, pos. 1) or the DC jack (DC IN, Figure 3, pos. 1) of the KBox F-420-WLU. 2. Connect the power cable to the power adapter.
-
Page 47: Operating System And Hardware Component Drivers
If you have ordered the KBox F-420-WLU without a pre-installed operating system, you will need to install the operating system and the appropriate drivers for the system configuration you have ordered (optional hardware components) yourself. -
Page 48: 9/ Maintenance And Cleaning
9/ Maintenance and Cleaning Equipment from Kontron requires only minimum servicing and maintenance for proper operation. For light soiling, clean the KBox F-420-WLU with a dry cloth. Carefully remove dust from the surface of the chassis using a clean, soft brush. ... -
Page 49: Technical Specifications
KBox F-420-WLU - User Guide, Rev. 1.0 Technical Specifications Table 2: Technical Specifications System Processor 8th Generation Intel® Core™ U-Series Processors Intel® Celeron® 4000 Series Processors Memory 2x DDR4 SO-DIMM Video Display Interface 1x DP++ (on rear) ... -
Page 50: Mechanical Specifications
KBox F-420-WLU - User Guide, Rev. 1.0 System 1x Storage LED (on front) 1x Wireless LED (on front) Cooling 1x CPU Smart Fan Software OS Support Windows 10 Linux 10.1. Mechanical Specifications Table 3: Mechanical Specifications Construction ... -
Page 51: Figure 23: Mechanical Drawing (Model With Dc Jack)
KBox F-420-WLU - User Guide, Rev. 1.0 Figure 23: Mechanical Drawing (model with DC jack) (unit: mm) www.kontron.com // 51... -
Page 52: Environmental Conditions
KBox F-420-WLU - User Guide, Rev. 1.0 10.2. Environmental Conditions Table 4: Environmental Conditions Operating Temperature 0 °C ~ 50 °C / 32 °F ~ 122 °F Storage Temperature -20 °C ~ 80 °C / -4 °F ~ 176 °F Humidity ... -
Page 53: 11/ Standard Interfaces
KBox F-420-WLU - User Guide, Rev. 1.0 11/ Standard Interfaces -- - Pin Assignments Low-active signals are indicated by a minus sign. 11.1. DC Power Input (Phoenix Connector) Table 6: DC Power Input (see Figure 2, pos. 1) Signal Name... -
Page 54: Usb 3.1 Port
KBox F-420-WLU - User Guide, Rev. 1.0 11.4. USB 3.1 Port Table 9: USB 3.1 Port (see Figure 1, pos. 5) USB 2.0 Contact Pin USB 3.1 Contact Pin 9-pin USB Connector Type A Version 3.1 / 2.0 Signal Name... -
Page 55: Hdmi Connector
KBox F-420-WLU - User Guide, Rev. 1.0 11.6. HDMI Connector Table 11: HDMI Connector (see Figure 2 & 3, pos. 4) Signal Name HDMI Connector Type A Version 2.0 TMDS Data2+ Ground TMDS Data2- TMDS Data1+ Ground TMDS Data1- TMDS Data0+... -
Page 56: Line-Out / Line-In / Mic-In Combo Jack
KBox F-420-WLU - User Guide, Rev. 1.0 Figure 24: COM1 Pin-9 Selection JP2 Table 13: Pin Assignment JP2 Jumper 1 Position Description Pin 1-2 Pin 2-3 RI# Input +5V DC Output “X’’ = Jumper set (short) and ‘‘-’’ = jumper not set (open) 11.8. -
Page 57: Wafer For External Power Switch
KBox F-420-WLU - User Guide, Rev. 1.0 11.9. Wafer for External Power Switch Table 15: Wafer for External Power Switch (see Figure 2 & 3, pos. 8) Signal Name Wafer for External Power Switch, Pitch = 2.0 mm Power S/W+ Power S/W- www.kontron.com... -
Page 58: 12/ Bios
Supervisor Password (see Security menu), press <RETURN>, and proceed with step 5. 5. A setup menu will appear. The KBox F-420-WLU uEFI BIOS setup program uses a hot key-based navigation system. A hot key legend bar is located on the bottom of the setup screens. -
Page 59: Starting The Uefi Bios
KBox F-420-WLU - User Guide, Rev. 1.0 12.2. Starting the uEFI BIOS The Setup utility features shows six menus in the selection bar at the top of the screen: Main Advanced Power Boot Security ... -
Page 60: Figure 25: Bios Main Menu Screen System Data And Time
KBox F-420-WLU - User Guide, Rev. 1.0 Figure 25: BIOS Main Menu Screen System Data and Time BIOS SETUP UTILITY Main Advanced Power Boot Security Save & Exit Product Information Product Name KBox F-420-WLU BIOS Version KF420WLUV.100 (x64) BIOS Build Date... -
Page 61: Advanced Setup Menu
KBox F-420-WLU - User Guide, Rev. 1.0 12.2.2. Advanced Setup Menu The Advanced setup menu provides sub-screens and functions for advanced configurations. The following sub- screen functions are included in the menu: LAN & Audio Configuration Display Configuration ... -
Page 62: Figure 26: Bios Advanced Menu
KBox F-420-WLU - User Guide, Rev. 1.0 Figure 26: BIOS Advanced Menu BIOS SETUP UTILITY Main Advanced Power Boot Security Save & Exit Onboard LAN1 Controller [Enabled] Onboard LAN1 Boot* [Disabled] Load I219 UNDI Driver* [Disabled] Audio Controller [Enabled] > Display Configuration >... -
Page 63: Figure 27: Bios Advanced Menu - Display Configuration
KBox F-420-WLU - User Guide, Rev. 1.0 Figure 27: BIOS Advanced Menu - Display Configuration BIOS SETUP UTILITY Main Advanced Power Boot Security Save & Exit Display Configuration Primary Display [IGFX] → ←: Select Screen Internal Graphics* [Enabled] ↑ ↓: Select Item... -
Page 64: Figure 28: Bios Advanced Menu - - Super Io Configuration
KBox F-420-WLU - User Guide, Rev. 1.0 Figure 28: BIOS Advanced Menu -- - Super IO Configuration BIOS SETUP UTILITY Main Advanced Power Boot Security Save & Exit Super IO Configuration > Serial Port 1 Configuration → ←: Select Screen ↑... -
Page 65: Figure 29: Bios Advanced Menu - - Super Io Configuration - - Serial Port 1 Configuration
KBox F-420-WLU - User Guide, Rev. 1.0 Figure 29: BIOS Advanced Menu -- - Super IO Configuration -- - Serial Port 1 Configuration BIOS SETUP UTILITY Main Advanced Power Boot Security Save & Exit Super Port 1 Configuration Serial Port [Enabled] →... -
Page 66: Figure 30: Bios Advanced Menu - - Cpu Chipset Configuration
KBox F-420-WLU - User Guide, Rev. 1.0 Figure 30: BIOS Advanced Menu -- - CPU Chipset Configuration BIOS SETUP UTILITY Main Advanced Power Boot Security Save & Exit CPU Chipset Configuration EIST [Enabled] → ←: Select Screen Turbo Mode [Enabled] ↑... -
Page 67: Figure 31: Bios Advanced Menu - - Nvme Configuration
KBox F-420-WLU - User Guide, Rev. 1.0 Figure 31: BIOS Advanced Menu -- - NVMe Configuration BIOS SETUP UTILITY Main Advanced Power Boot Security Save & Exit NVMe Configuration No NVMe Device Found → ←: Select Screen ↑ ↓: Select Item Enter: Select +/-: Change Opt. -
Page 68: Figure 32: Bios Advanced Menu - - Sata Configuration
KBox F-420-WLU - User Guide, Rev. 1.0 Figure 32: BIOS Advanced Menu -- - SATA Configuration BIOS SETUP UTILITY Main Advanced Power Boot Security Save & Exit SATA Configuration SATA Controller(s) [Enabled] → ←: Select Screen SATA Mode Selection* [AHCI] ↑... -
Page 69: Figure 33: Bios Advanced Menu - - Usb Configuration
KBox F-420-WLU - User Guide, Rev. 1.0 Figure 33: BIOS Advanced Menu -- - USB Configuration BIOS SETUP UTILITY Main Advanced Power Boot Security Save & Exit USB Configuration USB Devices: → ←: Select Screen 1 Keyboard ↑ ↓: Select Item... -
Page 70: Figure 34: Bios Advanced Menu - - Amt Configuration
KBox F-420-WLU - User Guide, Rev. 1.0 Figure 34: BIOS Advanced Menu -- - AMT Configuration BIOS SETUP UTILITY Main Advanced Power Boot Security Save & Exit AMT Configuration AMT BIOS Features [Enabled] → ←: Select Screen ↑ ↓: Select Item Enter: Select +/-: Change Opt. -
Page 71: Figure 35: Bios Advanced Menu - - Trusted Computing
KBox F-420-WLU - User Guide, Rev. 1.0 Figure 35: BIOS Advanced Menu -- - Trusted Computing BIOS SETUP UTILITY Main Advanced Power Boot Security Save & Exit Configuration Security Device Support [Disable] NO Security Device Found → ←: Select Screen ↑... -
Page 72: Figure 36: Bios Advanced Menu - - H/W Monitor
KBox F-420-WLU - User Guide, Rev. 1.0 Figure 36: BIOS Advanced Menu -- - H/W Monitor BIOS SETUP UTILITY Main Advanced Power Boot Security Save & Exit PC Health Status CPU Temperature : +44 C Memory Temperature : +34 C... -
Page 73: Figure 37: Bios Advanced Menu - - Network Stack Configuration
KBox F-420-WLU - User Guide, Rev. 1.0 Figure 37: BIOS Advanced Menu -- - Network Stack Configuration BIOS SETUP UTILITY Main Advanced Power Boot Security Save & Exit Network Stack [Disabled] Ipv4 PXE Support* [Disabled] Ipv4 HTTP Support* [Disabled] → ←: Select Screen... -
Page 74: Power Setup Menu
KBox F-420-WLU - User Guide, Rev. 1.0 12.2.3. Power Setup Menu The Power setup menu provides functions and a sub-screen for power configurations. The following sub-screen function is included in the menu: WatchDog Timer Configuration Figure 38: BIOS Power Setup Menu... -
Page 75: Figure 39: Bios Power Setup Menu - - Watchdog Timer Configuration
KBox F-420-WLU - User Guide, Rev. 1.0 Feature Option Description Alarm system on a special day of the month. Date(Days)Alarm Value Input Date(Days)Alarm Time(hh)Alarm Value Input Time(hh)Alarm Time(mm)Alarm Value Input Time(mm)Alarm Time(ss)Alarm Value Input Time(ss)Alarm Figure 39: BIOS Power Setup Menu -- - WatchDog Timer Configuration... -
Page 76: Boot Setup Menu
KBox F-420-WLU - User Guide, Rev. 1.0 12.2.4. Boot Setup Menu The boot setup menu lists the for boot device priority order, that is generated dynamically. Figure 40: BIOS Boot Setup Menu BIOS SETUP UTILITY Main Advanced Power Boot Security Save &... -
Page 77: Security Setup Menu
The Security setup menu provides information about the passwords and functions for specifying the security settings. The passwords are case-sensitive. The KBox F-420-WLU provides no factory-set passwords. If there is already a password installed, the system asks for this first. To clear a password, simply enter nothing and acknowledge by pressing <RETURN>. - Page 78 KBox F-420-WLU - User Guide, Rev. 1.0 12.2.5.1. Remember the password It is highly recommended to keep a record of all passwords in a safe place. Forgotten passwords results in being locked out of the system. If the system cannot be booted because the User Password or the Supervisor Password are not know, contact Kontron Support for further assistance.
-
Page 79: Save & Exit Setup Menu
KBox F-420-WLU - User Guide, Rev. 1.0 12.2.6. Save & Exit Setup Menu The exit setup menu provides functions for handling changes made to the UEFI BIOS settings and the exiting of the setup program. Figure 42: BIOS Save & Exit Setup Menu... -
Page 80: Appendix A: List Of Acronyms
KBox F-420-WLU - User Guide, Rev. 1.0 Appendix A: List of Acronyms The following table does not contain the complete acronyms used in signal names, signal type definitions or similar. A description of the signals is included in the I/O Connector and Internal connector chapters within this user guide. -
Page 81: About Kontron
KBox F-420-WLU - - User Guide, Rev. 1.0 About Kontron Kontron is a global leader in Embedded Computing Technology (ECT). As a part of technology group S&T, Kontron offers a combined portfolio of secure hardware, middleware and services for Internet of Things (IoT) and Industry 4.0 applications.
